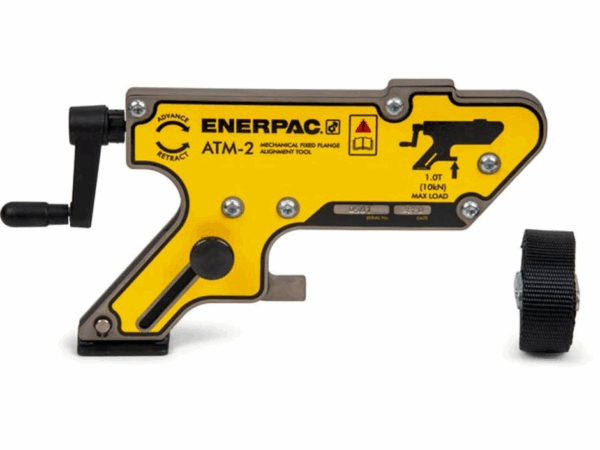

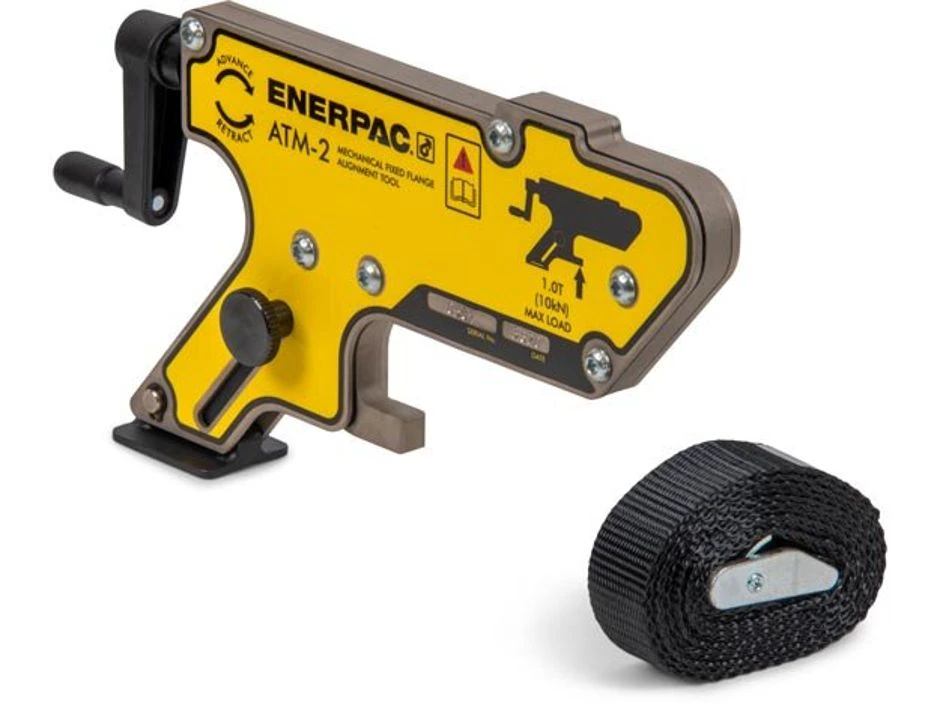

Enerpac ATM2 Flange Alignment Tool

The ATM2 Flange Alignment Tool rectifies misalignment quickly and safely, while providing a lightweight, portable, and productive solution with a maximum reaction force of 1 ton.

Talk to a Specialist
Want to talk to a specialist now?
(888) 838 6500
Business Hours: 8am - 5pm Est

Specifications

Model Enerpac ATM2
Maximum Reaction Force 1 ton (imperial ton)
Minimum Bolt Size  .63″
Maximum Flange Thickness .55″-3.29″
Reaction Force 2 Max 1 ton (imperial ton)
Weight  3.5 lb. (1.6 kg)



  • ATM-Series tools help correct flange misalignment and allow bolts to be placed into joints
    • This alignment takes place during pipe work construction or maintenance
  • These tools provide pipe installers and maintenance personnel with some of the simplest, safest, and most productive solutions available for flange alignment in the market today
  • ATM-Series tools rectify twist and rotational misalignment quickly, safely, and without the need for an external power source
  • Appropriate for use on most ANSI, API, BS and DIN flanges
  • No slings, hooks, or lifting gear required
  • Can be installed and used in any position- horizontally or vertically
  • Portable, lightweight design enables easy transport and use, even in remote locations
  • Each ATM-model contains a tool and kit box

Documents

Helpful resources:

ATM2 Dimensioned Drawing

ATM2 Instruction Manual

ATM Series Specifications
