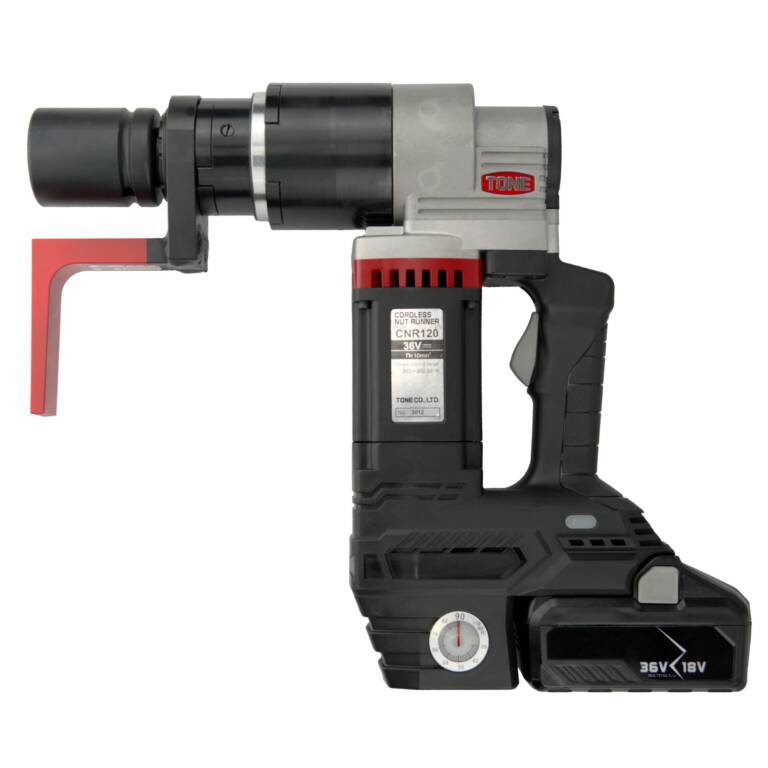

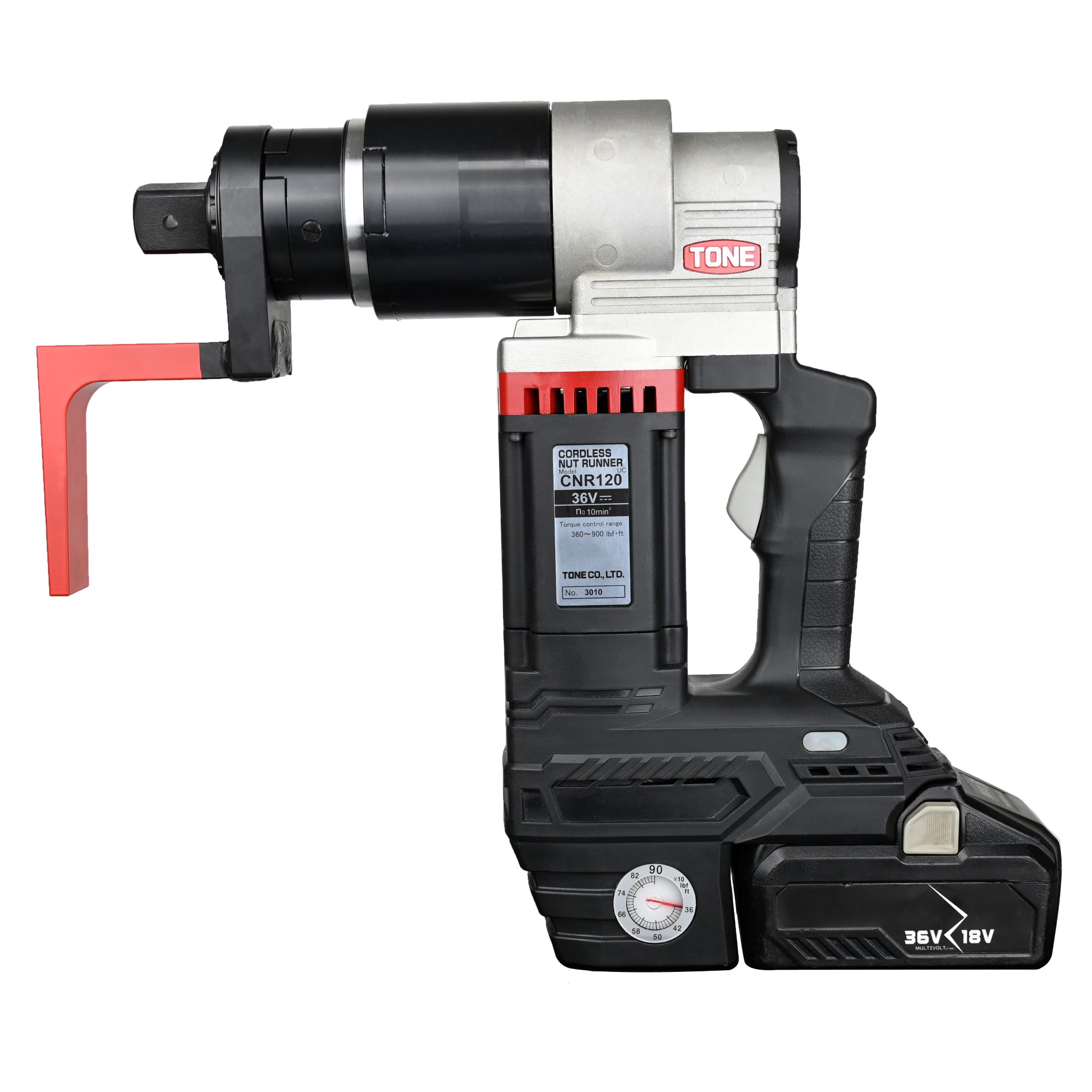

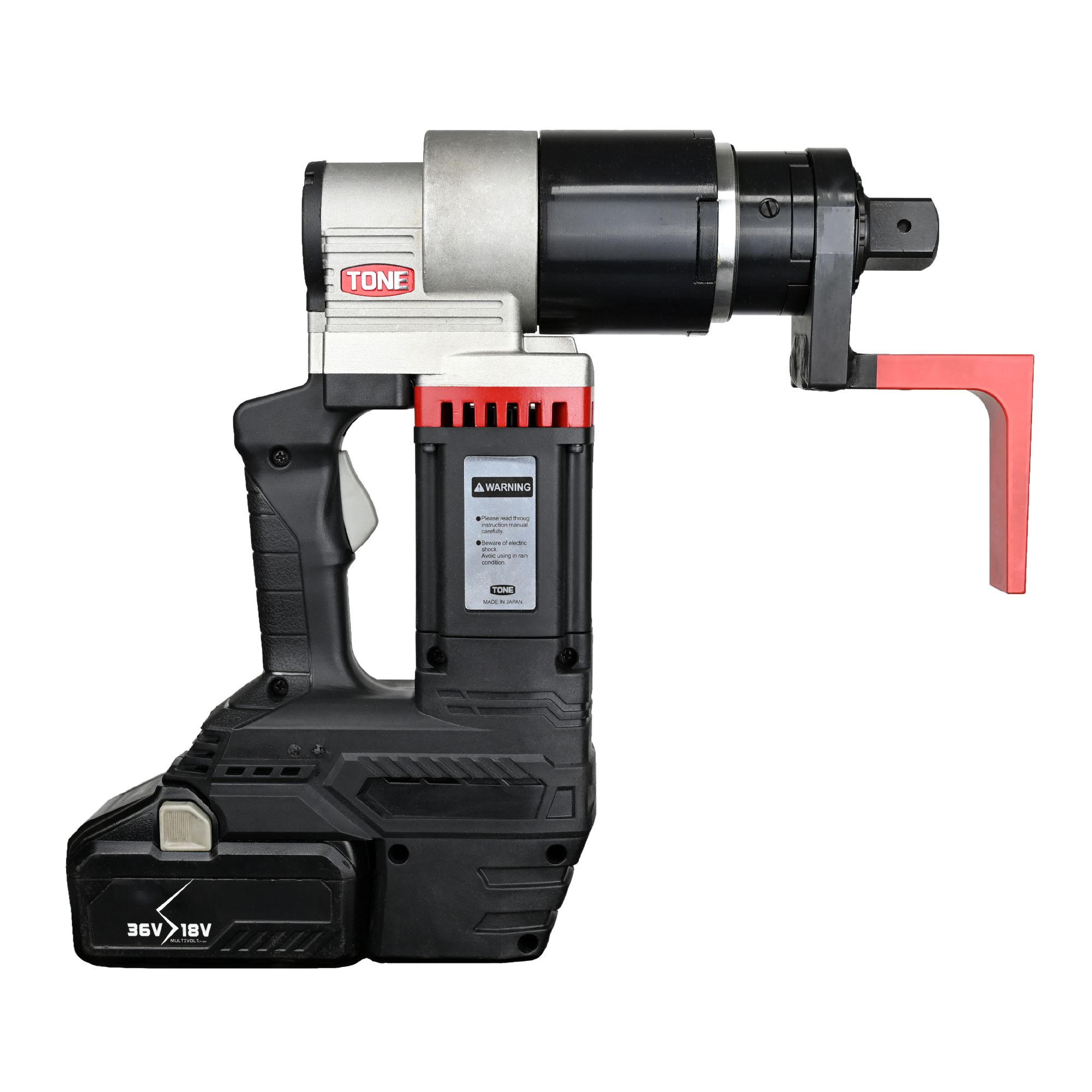

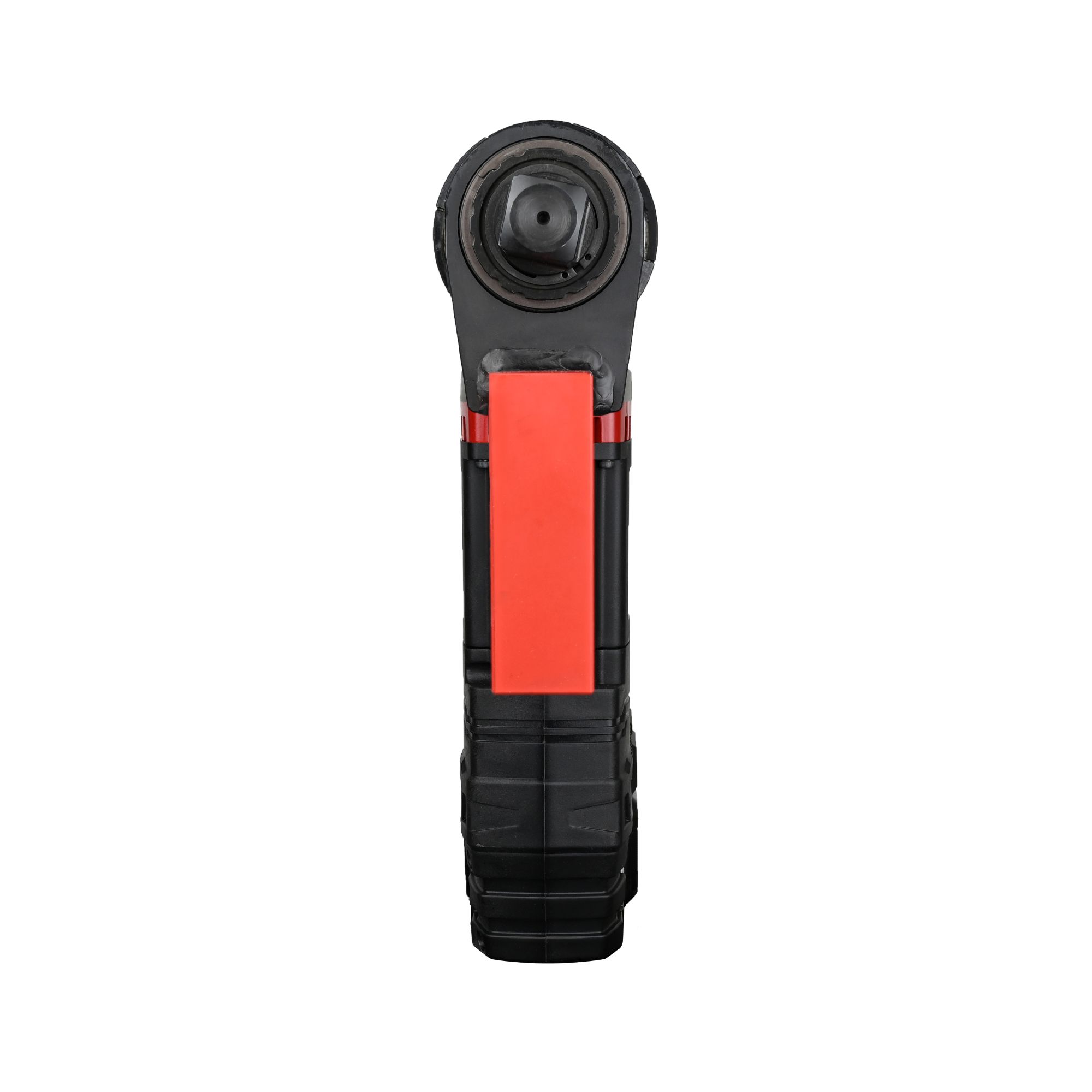

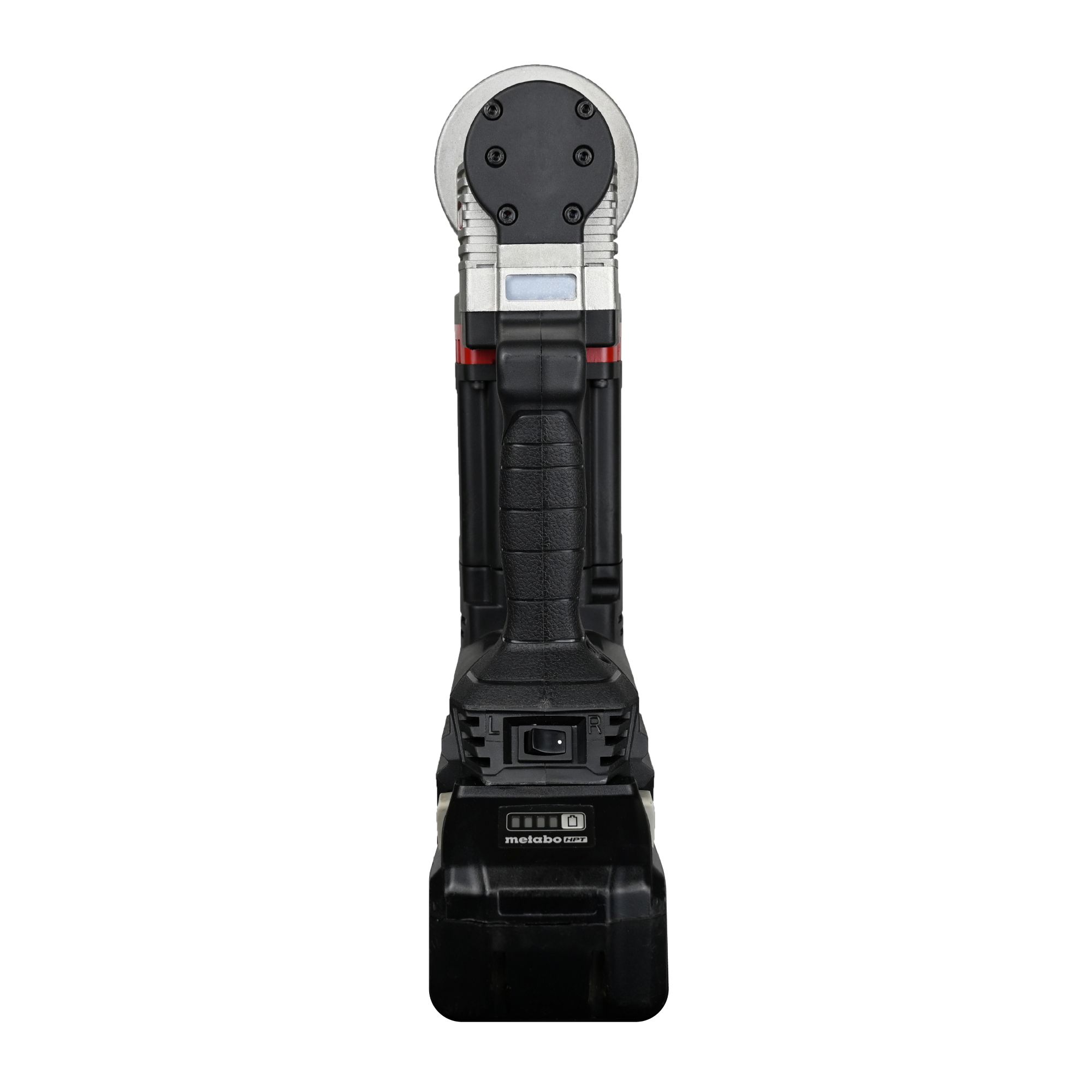

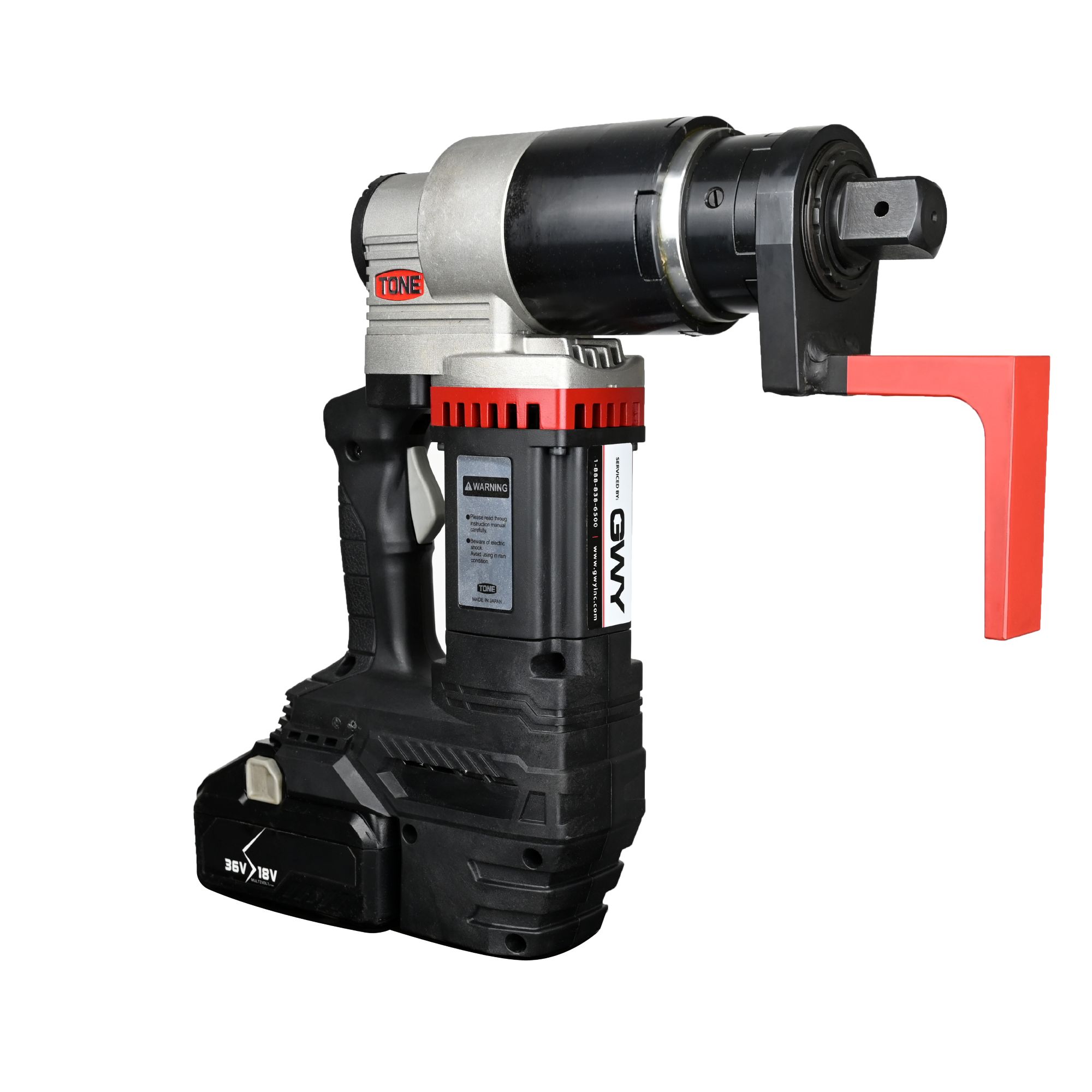

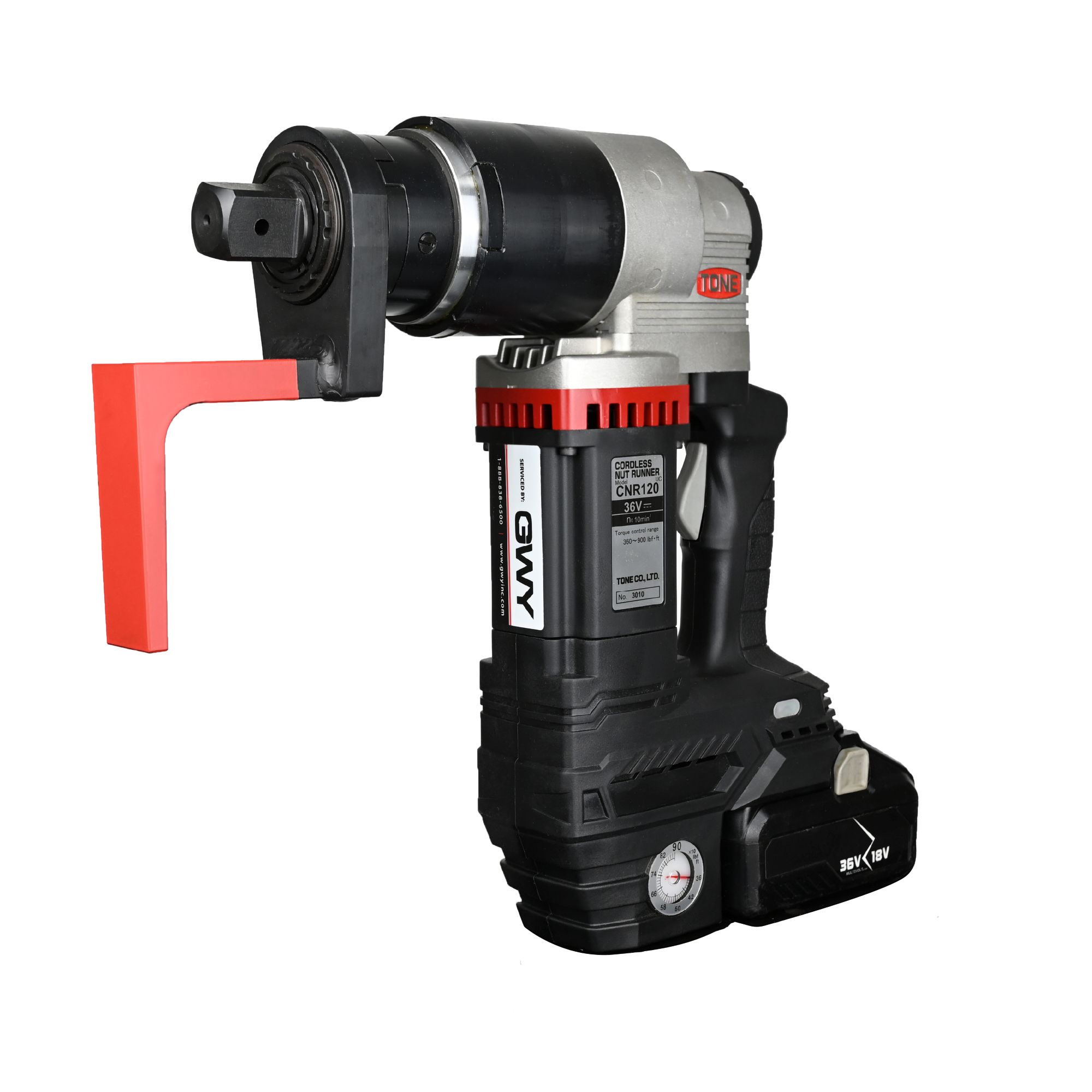

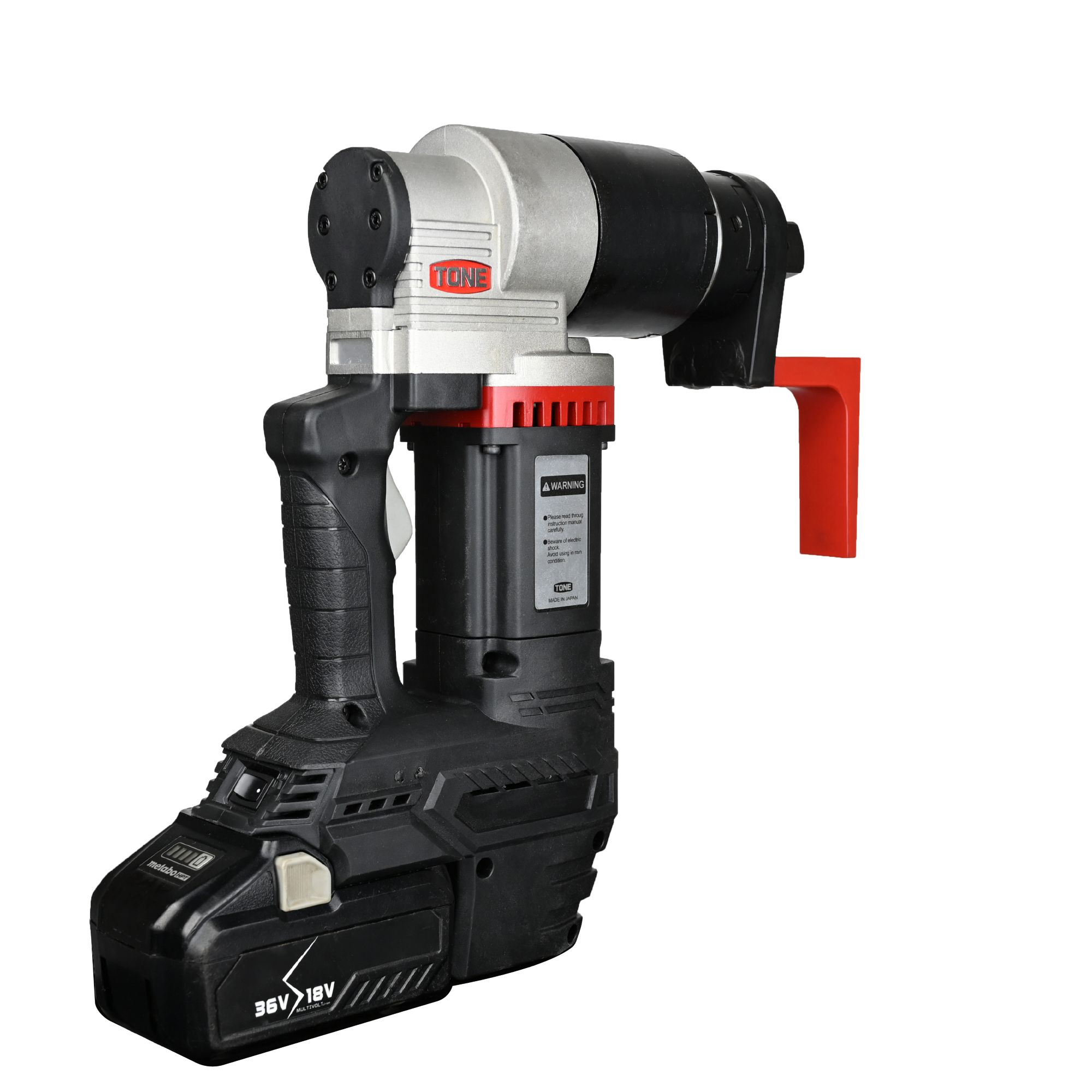

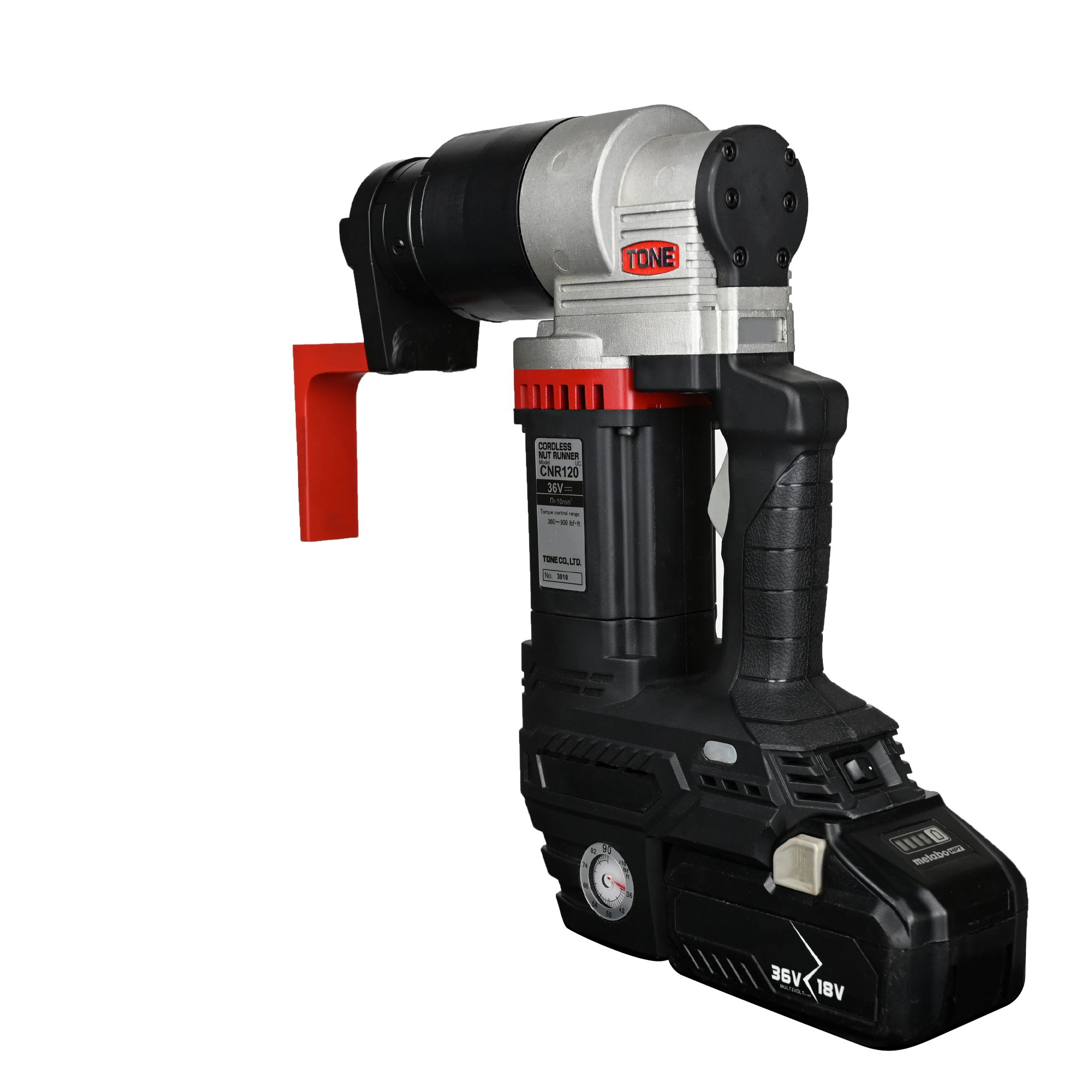

TONE CNR-120 Cordless Torque Wrench

Cordless nut runner provides a compact and portable solution for torque-controlled installations. Capable of tightening approximately 140 bolts on a fully charged battery.

Fully Tensioned Structural Bolts:

A325 – 3/4″, 7/8″, 1″

A325M – M20, M22, M24

A490 – 3/4″, 7/8″

A490M – M20, M22

 Adjustable Torque Range:

360-900 ft-lb. / 500-1,200 N-m


Talk to a Specialist
Want to talk to a specialist now?
(888) 838 6500
Business Hours: 8am - 5pm Est

Specifications & Features

Model TONE CNR-120 TONE CNB-120
Controllable Torque Range 360~900 ft-lb. 500~1,200 N-m
No-Load Speed 10 rpm 10 rpm
Square Drive Size 1″ 1″
Storage Battery DC36 V DC36 V
Weight 16.3 lb. 7.4 kg
  • DC brushless motor
  • Repeated accuracy of ±5%
  • Torque setting dial between 360~900 ft-lb.
  • Clockwise & counterclockwise torque directions

Kit Includes

  • CNR-120 Cordless Nut Runner
  • Two (2) 36V/18V Lithium Ion 4.0Ah Batteries
  • Battery Charger
  • Carrying Case

Available Accessories

  • X-Holder Extension 100mm (3-7/8″)
  • Digital Torque Meter DTM12
  • Impact Sockets
  • Bar Sockets

Documents

Helpful resources:

Instructional Manual

Dimensioned Drawings

Torque Catalog

Safety Precautions
