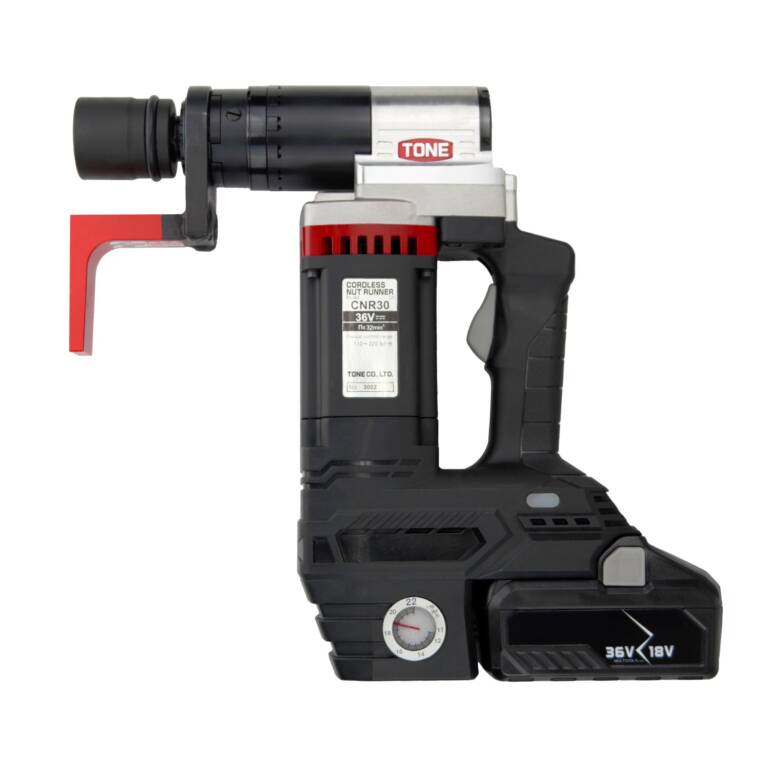

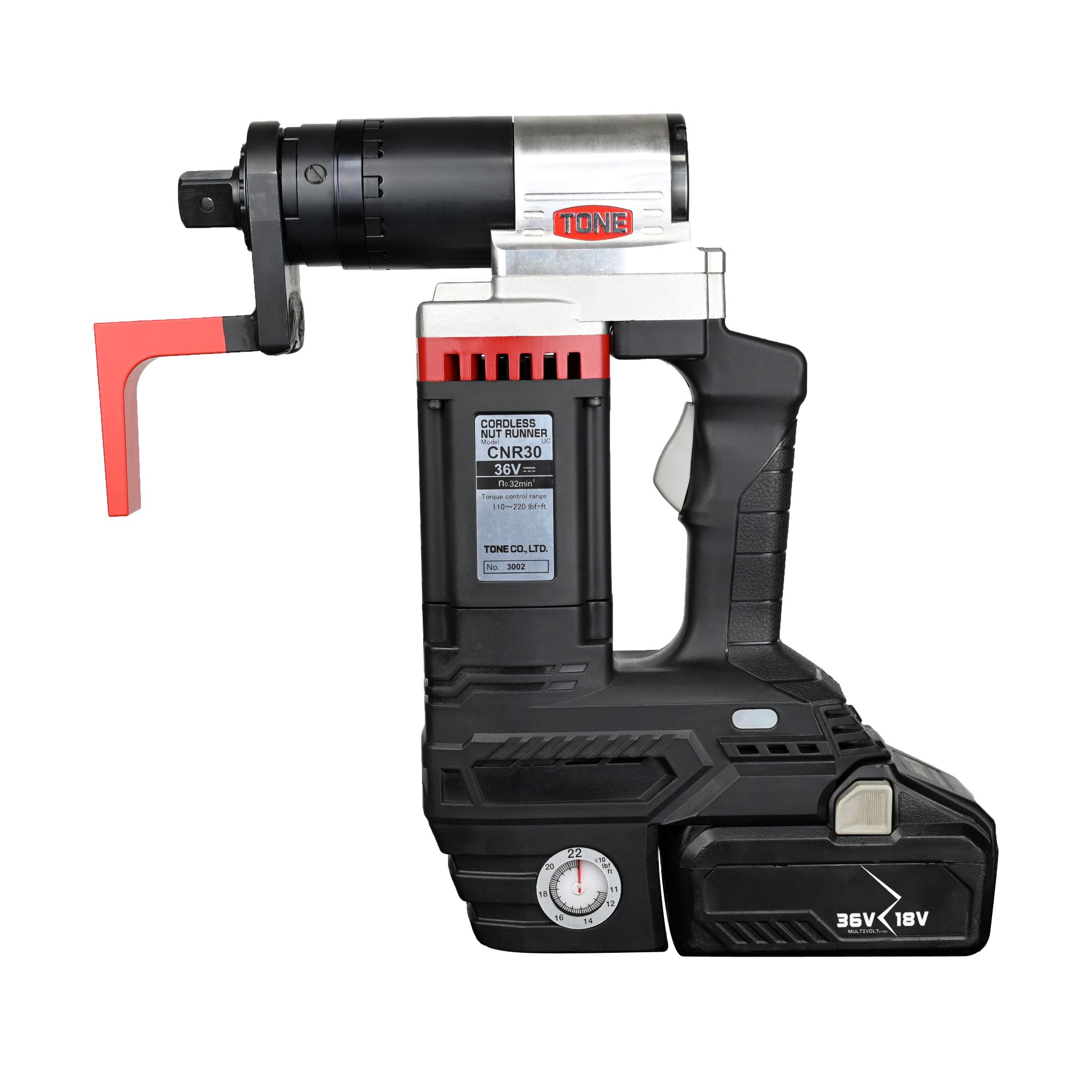

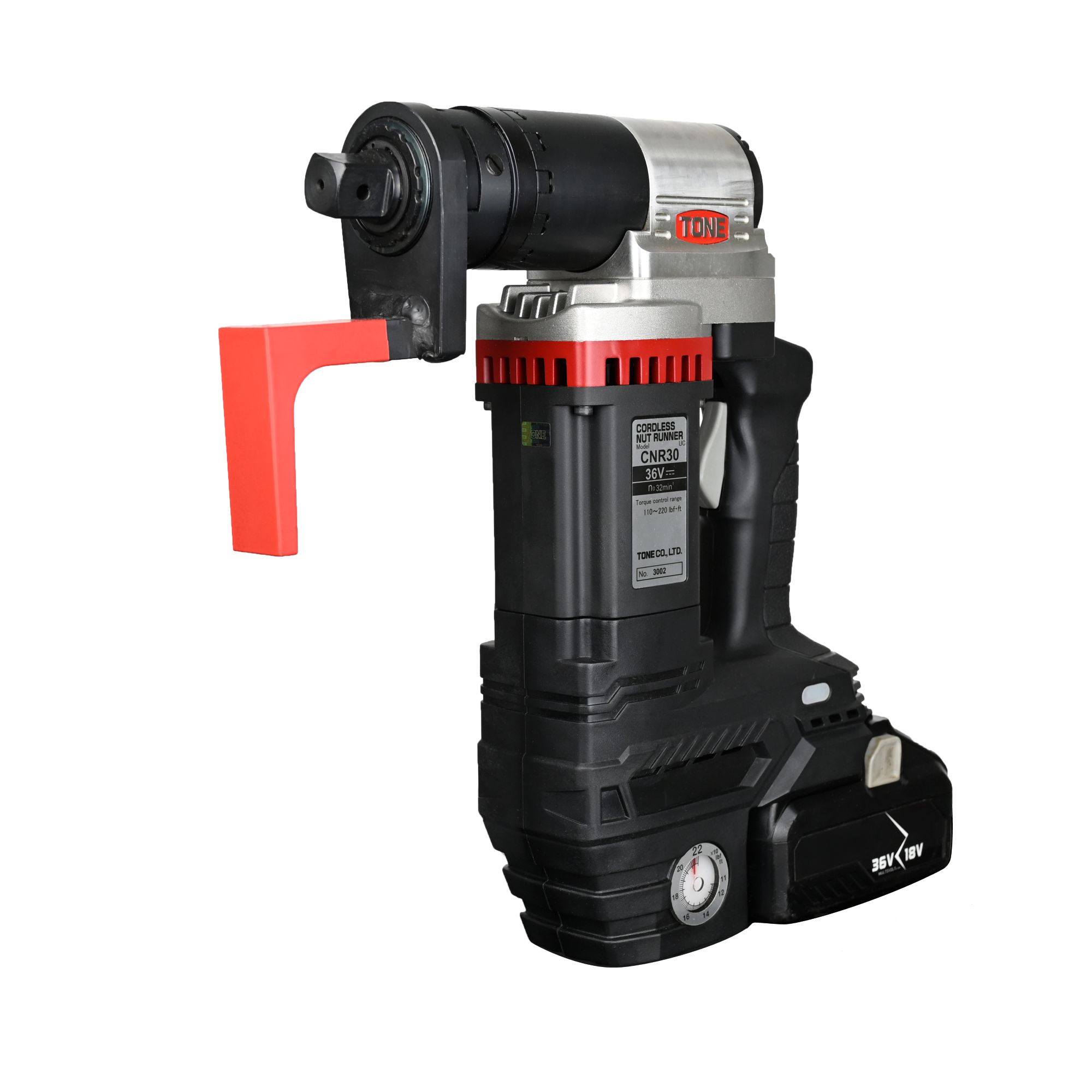

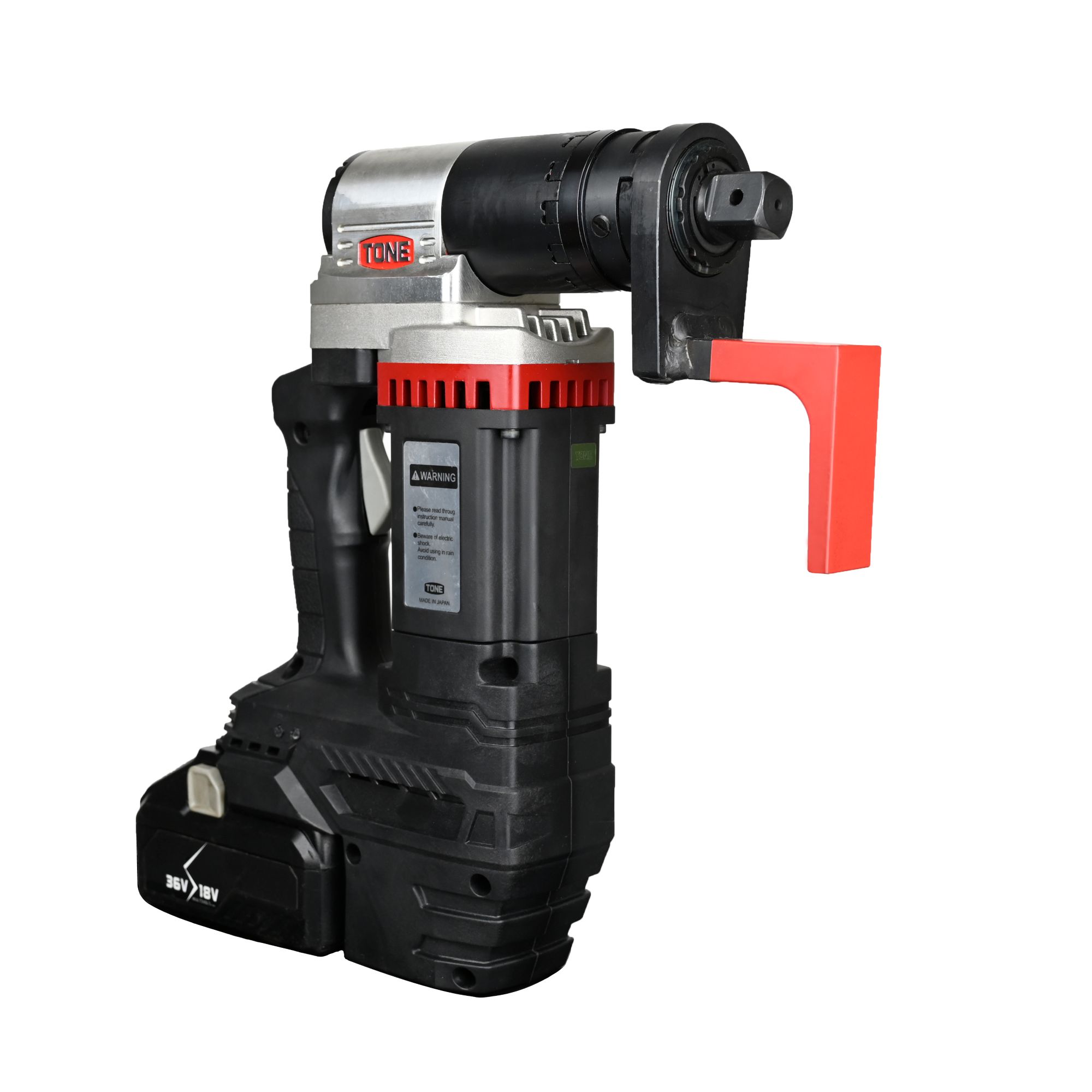

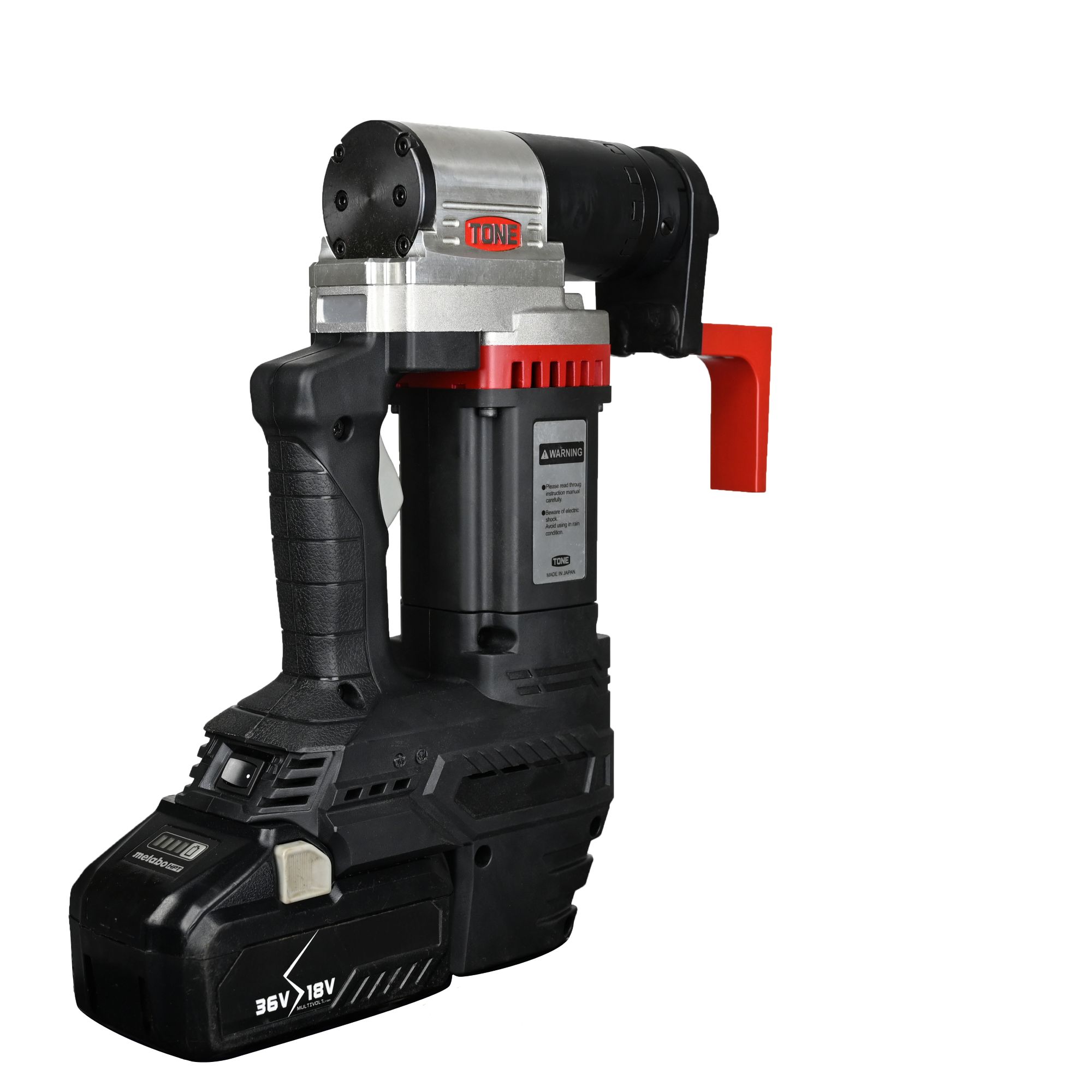

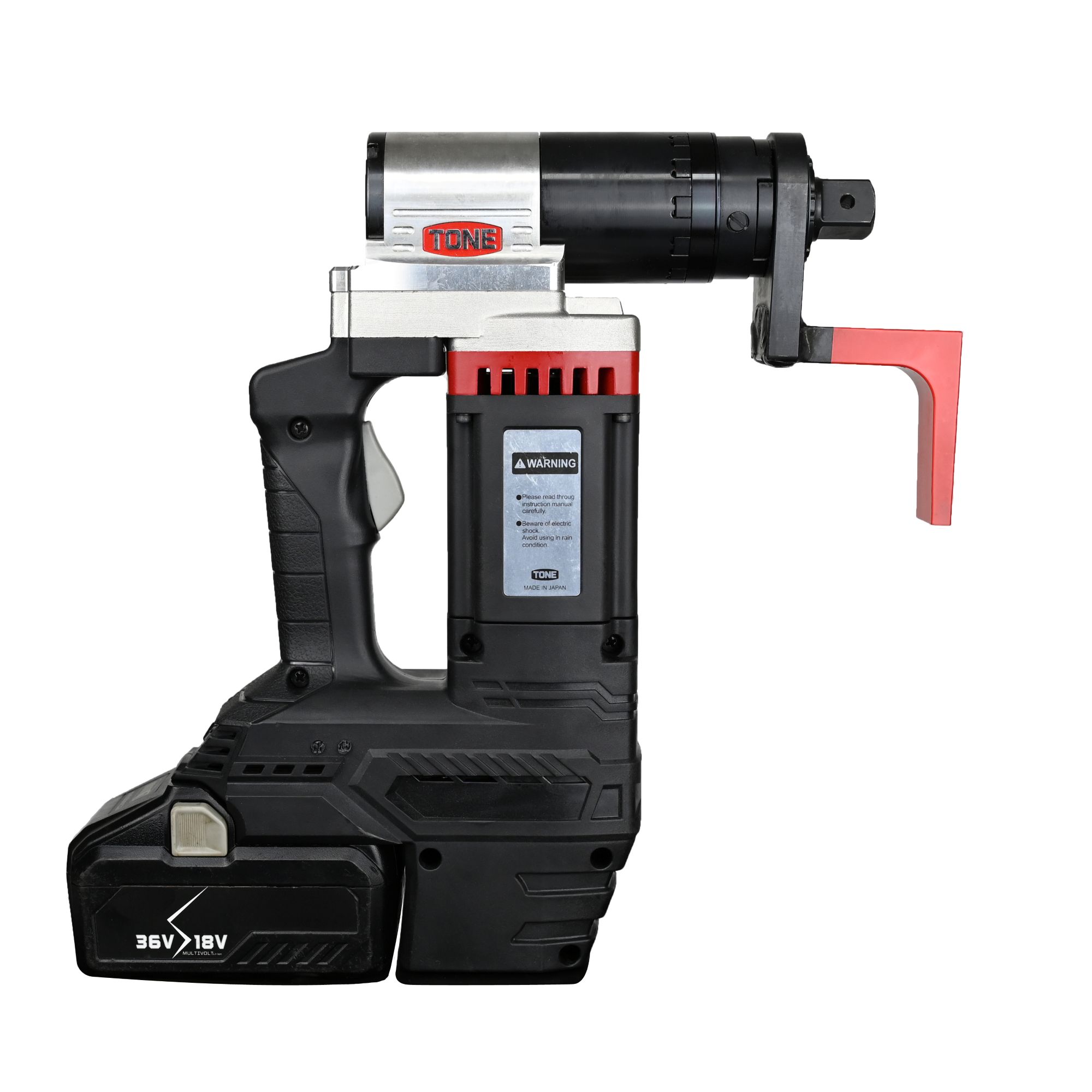

TONE CNR-30 Cordless Torque Wrench
Cordless nut runner provides a compact and portable solution for torque-controlled installations. Capable of tightening approximately 240 bolts on a fully charged battery.
| Fully Tensioned Structural Bolts:
A325 – 1/2″, 5/8” A325M – M14, M16 A490 – 1/2” A490M – M14 |
Adjustable Torque Range:
110-220 ft-lb. / 150-300 N-m
|
Specifications & Features
| Model | TONE CNR-30 | TONE CNB-30 |
| Controllable Torque Range | 110~220 ft-lb. | 150~300 N-m |
| No-Load Speed | 32 rpm | 32 rpm |
| Square Drive Size | 3/4″ drive | 3/4″ drive |
| Storage Battery | DC36 V | DC36 V |
| Weight | 10.8 lb. | 4.9 kg |
- DC brushless motor
- Repeated accuracy of ±5%
- Torque setting dial between 110~220 ft-lb.
- Clockwise & counterclockwise torque directions
Kit Includes
- CNR-30 Cordless Nut Runner
- Two (2) 36V/18V Lithium Ion 4.0Ah Batteries
- Battery Charger
- Carrying Case
Available Accessories
- X-Holder Extension 100mm (3-7/8″)
- Digital Torque Meter DTM5
- Impact Sockets
- Bar Sockets
Documents
Helpful resources:
Instructional Manual
Dimensioned Drawings
Torque Catalog
Safety Precautions
