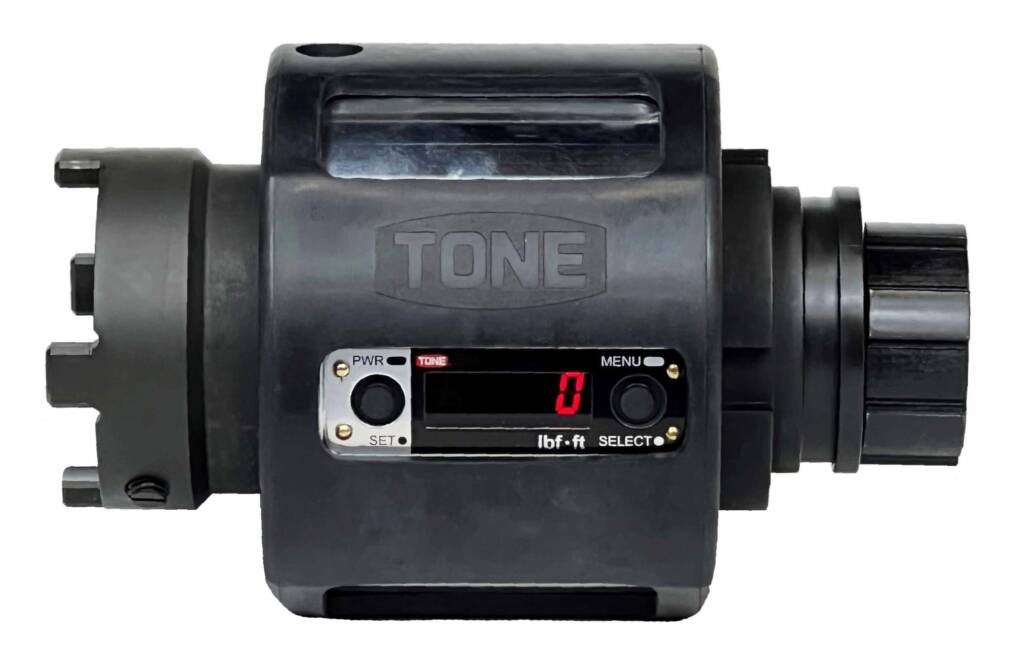

TONE DTM21 Digital Torque Meter
Digital Torque Meters (DTM) provide an easy-to-read torque display and a flash memory card that stores the date, time, and torque measurement for each bolt tightened. This information can be downloaded for reporting and quality assurance.
The DTM 21 reads a torque range of 620-1590 ft-lb. and is compatible with the TN-30EZ, GPTN-301E, GNR-211E, and CNR-210.
Specifications & Features
| Model | DTM 21EF |
| Torque Readout Range | 620-1,590 ft-lb. (840-2160 N-m) |
| Turn-of-Nut Compatibility | TN-30EZ, GPTN-301E |
| Torque Wrench Compatibility | GNR-211E & CNR-210 |
| Discontinued Models Compatibility | SR-171E & SR-211E |
| Length | 5-1/16″ (129 mm) |
| Depth | 4-1/2″ (115 mm) |
| Weight | 6.6 lb. (3.0 kg) |
- Clockwise & counterclockwise torque measurements
- ± 3% repeatable accuracy
- 10,000 readings powered by four AAA batteries
- Perfect for rotational capacity testing
