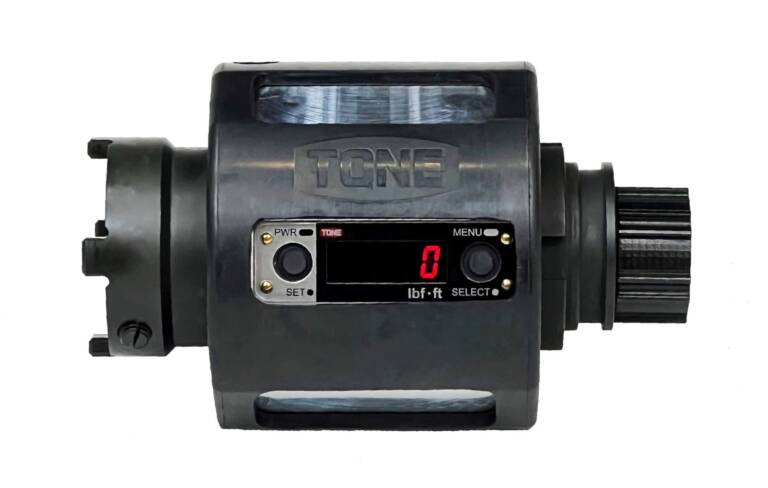

TONE DTM8 Digital Torque Meter
Digital Torque Meters (DTM) provide an easy-to-read torque display and a flash memory card that stores the date, time, and torque measurement for each bolt tightened. This information can be downloaded for reporting and quality assurance.
The DTM 8 reads a torque range of 190-620 ft-lb. and is compatible with the TN-22EZ, GNR-81E, and CNR-80.
Specifications & Features
| Model | DTM 8EF |
| Torque Readout Range | 190-620 ft-lb. (250-850 N-m) |
| Turn-of-Nut Wrench Compatibility | TN-22EZ |
| Torque Wrench Compatibility | GNR-81E & CNR-80 |
| Discontinued Models Compatibility | SR-71E |
| Length | 4-5/8″ (117 mm) |
| Depth | 3-3/4″ (95 mm) |
| Weight | 3.7 lb. (1.7 kg) |
- Clockwise & counterclockwise torque measurements
- ± 3% repeatable accuracy
- 10,000 readings powered by four AAA batteries
- Perfect for rotational capacity testing
Documents
Helpful resources:
Dimensioned Drawing
Instructional Manual
Torque Catalog
Turn-of-Nut Catalog
