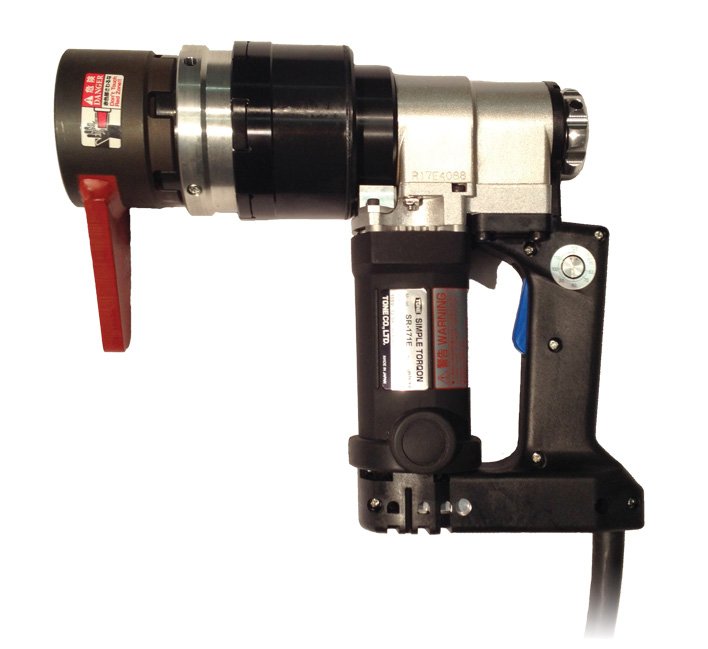

TONE SR-171E / SR-172E Electric Torque Wrench
The SR-171E / SR-172E torque control wrench has an adjustable torque range of 630-1,250 ft-lb. Available accessories include the DTM21, 100mm and 200mm x-holder socket extensions, as well as 7/8″, 1″, 1-1/8″, 1-1/4″, 1-3/8″, and 1-1/2″ bar sockets.
Fully Tensioned Structural Bolts | Maximum Torque |
A325 – 7/8″, 1″, 1-1/8″ | 630-1,250 ft-lb. |
A325M – M22, M24, M27 | 900-1,800 N-m |
A490 – 7/8″, 1″ | |
A325M – M22, M24 |
Specifications
Model | SR-171E | SR-172E |
Voltage | 115 V | 220 V |
Maximum Current | 12.5 A | 6 A |
Rated Power | 1,200 W | 1,200 W |
Maximum Torque | 630-1250 ft-lb. | 850-1700 N-m |
No-load Speed | 6 rpm | 6 rpm |
Weight | 16.3 lb. | 7.4 kg |
TONE SR-171E / SR-172E Electric Torque Control Wrench Parts
Part # | Description | Qty |
1 | BAR SOCKET | 1 |
2 | BAR SKT WARNING LABEL | 1 |
3 | T-TORX SCREW M4X10 | 2 |
4 | SPIRO STOPPER | 1 |
5 | SUB SPIRO STOPPER | 1 |
6 | SPIROLOX | 2 |
7 | SET SCREW | 2 |
8 | OUTER SOCKET HOLDER | 1 |
9 | INNER SOCKET HOLDER ASS’Y | 1 |
10 | BUSH | 1 |
11 | 4TH IDLE GEAR ASS’Y | 1 |
12 | 4TH CAGE | 1 |
13 | 4TH IDLE GEAR | 5 |
14 | NEEDLE CAGE | 10 |
15 | 4TH GEAR PIN | 5 |
16 | STEEL BALL | 46 |
STEEL BALL | 4 | |
17 | BUSH | 1 |
18 | 4TH PINION GEAR | 1 |
19 | BUSH | 1 |
20 | 3RD IDLE GEAR ASS’Y | 1 |
21 | 3RD CAGE | 1 |
22 | 3RD IDLE GEAR | 5 |
23 | NEEDLE CAGE | 5 |
24 | 3RD GEAR PIN | 5 |
25 | INTERNAL GEAR | 1 |
26 | 3RD PINION GEAR | 1 |
27 | BUSH | 1 |
28 | 2ND IDLE GEAR ASS’Y | 1 |
29 | 2ND CAGE | 1 |
30 | 2ND IDLE GEAR | 4 |
31 | NEEDLE CAGE | 4 |
32 | 2ND GEAR PIN | 4 |
33 | 2ND PINION GEAR | 1 |
34 | BUSH | 1 |
35 | 1ST IDLE GEAR ASS’Y | 1 |
36 | 1ST GEAR PIN | 4 |
37 | 1ST CAGE | 1 |
38 | BEARING | 4 |
39 | 1ST IDLE GEAR | 4 |
40 | BEARING | 1 |
41 | FRICTION DISK | 1 |
42 | SPIROLOX | 1 |
43 | SPIRO WASHER | 1 |
44 | BEARING | 1 |
45 | HOUSING | 1 |
46 | CRPH SCREW M4X10 | 4 |
47 | THRUST WASHER | 1 |
48 | BEARING | 2 |
49 | STEPPED BUSH | 1 |
50 | CIRCLIP | 2 |
51 | NEEDLE CAGE | 2 |
52 | BEVEL GEAR | 2 |
53 | BEARING | 1 |
54 | 1ST PINION GEAR | 1 |
55 | CHANGE SPOOL | 1 |
56 | CIRCLIP | 1 |
57 | BEARING | 1 |
58 | NEEDLE PIN | 1 |
59 | SPOOL GUIDE | 1 |
60 | RETAINING RING C-TYPE | 1 |
61 | BEARING | 1 |
62 | SPOOL HOLDER | 1 |
63 | GUIDE PIN | 2 |
64 | SPIROLOX | 1 |
65 | RETAINING RING C-TYPE | 1 |
66 | CHANGE DRUM | 1 |
67 | HOUSING COVER | 1 |
68 | HSH BOLT M4X12 | 4 |
69 | CLICK PLUNGER ASS’Y | 2 |
70 | CHANGE GRIP | 1 |
71 | PINION BEVEL GEAR | 1 |
72 | KEY | 1 |
73 | BEARING | 1 |
74 | MOTOR GEAR | 1 |
75 | RETAINING RING C-TYPE | 1 |
76 | BEARING | 1 |
77 | HSH BOLT M4X25 | 2 |
78 | PROTECTOR | 2 |
79 | HSH BOLT M4X30 | 2 |
80 | STUD BOLT | 2 |
81 | IDLE PIN | 1 |
82 | MOTOR IDLE GEAR | 1 |
83 | BEARING | 1 |
84 | SPIROLOX | 1 |
85 | BUSH | 1 |
86 | BRACKET | 1 |
87 | E-NUT M5 | 2 |
88 | HSH BUTTON BOLT M5X12 | 1 |
89A | MOTOR ASS’Y 115V | 1 |
89B | MOTOR ASS’Y 220V | 1 |
90 | RETAINING RING C-TYPE | 1 |
91 | BEARING | 1 |
92 | BEARING BRACKET | 1 |
93A | ARMATURE 115V | 1 |
93B | ARMATURE 220V | 1 |
94 | CRPH SCREW M4X65 W/ WASHER | 2 |
95 | BEARING | 1 |
96B | STATOR 115V | 1 |
96B | STATOR 220V | 1 |
97 | INSULATING WASHER | 2 |
98A | STATOR SPIDER ASS’Y 115V | 1 |
98B | STATOR SPIDER ASS’Y 220V | 1 |
99 | CARBON BRUSH | 2 |
100 | BRUSH CAP | 2 |
101 | RUBBER PLUG | 1 |
102 | WARNING LABEL | 1 |
103A | RATING PLATE 115V | 1 |
103B | RATING PLATE 220V | 1 |
104 | CRPH SCREW M4X6 W/ WASHER | 1 |
105 | CUSHION RUBBER | 1 |
106 | HSH BOLT M5X35 | 4 |
107 | GRIP | 1 |
108 | CRPH SCREW M4X35 | 2 |
109 | PIN | 1 |
110 | SWITCH LEVER | 1 |
111 | SPACER | 2 |
112 | SET BOARD | 1 |
113 | CAVITY HSH SET SCREW M2.6X3 | 2 |
114 | DIAL | 1 |
115 | SET SPRING | 1 |
116 | SPRING WASHER M3 | 2 |
117 | CRPH SCREW M3X6 | 2 |
118 | TRIGGER SWITCH | 1 |
119 | CRPH SCREW M3X14 | 2 |
120 | INSULATED CONNECTOR | 4 |
121 | GRIP COVER | 1 |
122 | CRPH SCREW M4X14 | 7 |
123A | GRADUATION LB-FT | 1 |
123B | GRADUATION Nm | 2 |
124 | CONDENSER | 1 |
125A | CONTROL BASE ASS’Y 115V | 1 |
125B | CONTROL BASE ASS’Y 220V | 1 |
126 | CORD ARMOUR | 1 |
127 | CORD ARMOUR WASHER | 1 |
128A | CORD ASS’Y 115V | 1 |
128B | CORD ASS’Y 220V | 1 |
129 | INSULATED TERMINAL | 1 |
130 | VOLUME ASS’Y | 1 |
132 | 1ST PINION GEAR ASS’Y | 1 |
133 | METAL CASE | 1 |
Parts not listed are part of an assembly and are not available separately.
