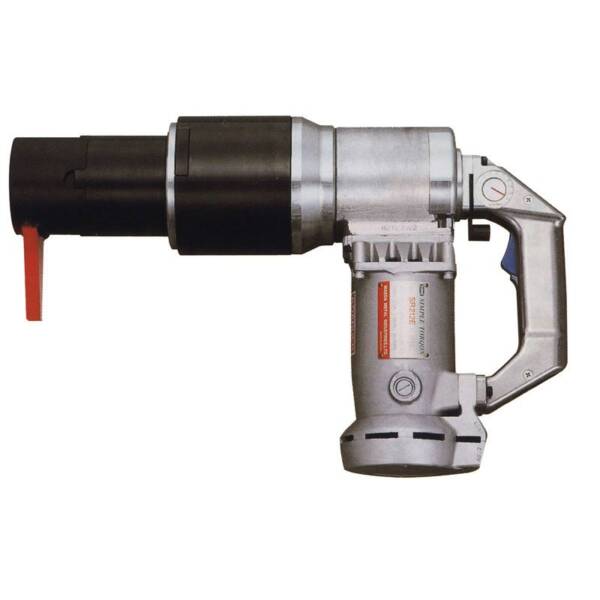

TONE SR-211E / SR-212E Electric Torque Control Wrench
The SR-211E / SR-212E torque control wrench has an adjustable torque range of 750-1,550 ft-lb. Available accessories include the DTM21, 100mm and 200mm x-holder socket extensions, as well as 1-1/8″ and 1-1/4″ bar sockets.
Fully Tensioned Structural Bolts | Maximum Torque |
A325 – 1-1/8″, 1-1/4″ | 750-1,550 ft-lb. |
A325M – M24, M30 | 1,000-2,100 N-m |
A490 – 1-1/8″ | |
A325M – M24 |
Specifications
Model | SR-211E | SR-212E |
Voltage | 115 V | 220 V |
Maximum Current | 12 A | 6 A |
Frequency | 50-60 Hz | 50-60 Hz |
Rated Power | 1,100 W | 1,100 W |
Torque Range | 750-1550 ft-lb. | 1000-2100 N-m |
No-load Speed | 4 rpm | 4 rpm |
Weight | 38.6 lb. | 17.5 kg |
TONE SR-211E / SR-212E Electric Torque Control Wrench Parts
Part # | Description | QTY/Unit |
1 | SRU-TYPE BAR SOCKETS | XX |
1-A | RETAINING RING C-TYPE | 1 |
1-B | INNER BAR SOCKET | 1 |
1-C | OUTER BAR SOCKET | 1 |
2 | BAR SKT WARNING LABEL | 1 |
3 | SPIROLOX FRS-88 | 1 |
4 | SPIRO STOPPER | 1 |
5 | SPIROLOX FRR-110 | 1 |
6 | SET SCREW | 2 |
7 | OUTER SOCKET HOLDER | 1 |
8 | BUSH 76X109.5X4 | 1 |
9 | INNER SOCKET HOLDER ASS’Y | 1 |
10 | HSH REAMER BOLT | 3 |
11 | 4TH SPIDER ASS’Y | 1 |
12 | STEEL BALL 5/16″ | 40 |
13 | BUSH 96X109.8X7 | 1 |
14 | INTERNAL GEAR | 1 |
15 | BUSH 97X112X5 | 1 |
16 | 4TH PINION GEAR | 1 |
17 | 4TH GEAR PIN | 3 |
18 | 4TH IDLE GEAR | 3 |
19 | NEEDLE CAGEIKO KT162220 | 6 |
20 | GEAR CASE | 1 |
21 | FRONT HOUSING | 1 |
22 | 3RD PINION GEAR | 1 |
23 | OUTER RING WASHER GS4565 | 1 |
24 | 3RD IDLE GEAR ASS’Y | 1 |
25 | 3RD CAGE | 1 |
26 | 3RD IDLE GEAR | 3 |
27 | NEEDLE CAGE KT121820 | 3 |
28 | 3RD GEAR PIN | 3 |
29 | OUTER RING WASHER GS3552 | 1 |
30 | 2ND IDLE GEAR ASS’Y | 1 |
31 | 2ND GEAR PIN | 3 |
32 | NEEDLE CAGE KT131816 | 3 |
33 | 2ND IDLE GEAR | 3 |
34 | CAGE | 1 |
35 | 2ND PINION GEAR | 1 |
36 | BUSH 21.5X45X2 | 1 |
37 | 1ST IDLE GEAR ASS’Y | 1 |
38 | 1ST GEAR PIN | 3 |
39 | 1ST CAGE | 1 |
40 | METAL SLEEVE 699 | 3 |
41 | 1ST IDLE GEAR | 3 |
42 | FRICTION DISK | 1 |
43 | SPIROLOX RR-325 | 1 |
44 | SPIRO WASHER | 1 |
45 | METAL SLEEVE NTB2542 | 1 |
46 | THRUST WASHER AS2542 | 1 |
47 | FLANGE | 1 |
48 | HSH BOLT M4X10 | 6 |
49 | METAL SLEEVE 6903 | 1 |
50 | SPIROLOX FRR-30 | 1 |
51 | HOUSING | 1 |
52 | RETAINING RING C-TYPE DIA 25 | 2 |
53 | METAL SLEEVE 6805 | 2 |
54 | BEVEL GEAR | 2 |
55 | 1ST PINION GEAR | 1 |
56 | STEEL BALL 1/4″ | 4 |
57 | SPIROLOX RSN-50 | 1 |
58 | BUSH 12.7X18.5X3.05 | 1 |
59 | STEEL BALL 1/8″ (15PCS + 15PCS) | 30 |
60 | CHANGE SPOOL | 1 |
61 | SPOOL GUIDE | 1 |
62 | GUIDE PIN | 2 |
63 | STEEL BALL 3/16″ (23PCS+1PCS) | 24 |
64 | CHANGE DRUM | 1 |
65 | METAL SLEEVE 6808 | 1 |
66 | HOUSING COVER | 1 |
67 | SPRING | 1 |
68 | HSH BOLT M5X45 | 4 |
69A | CHANGE LEVER BASE PLATE | 1 |
69B | CHANGE LEVER KNOB | 1 |
69C | CRFH SCREW M4X8 | 1 |
70 | SPIROLOX FRS-25 | 1 |
71 | E-NUT M5 | 2 |
72 | PINION BEVEL GEAR | 1 |
73 | WOODRUFF KEY A-3X10 | 2 |
74 | METAL SLEEVE 6001 | 1 |
75 | RETAINING RING C-TYPE DIA 28 | 1 |
76 | BUSH 12X18X3 | 1 |
77 | MOTOR GEAR | 1 |
78 | RETAINING RING C-TYPE DIA 12 | 1 |
79 | STUD BOLT | 2 |
80 | RETAINING RING C-TYPE DIA 10 | 1 |
81 | MOTOR PINION | 1 |
82 | HSH BOLT M5X16 | 4 |
83A | MOTOR ASS’Y 115V | 1 |
83B | MOTOR ASS’Y 220V | 1 |
84A | METAL SLEEVE BRACKET ASS’Y 115V | 1 |
84B | METAL SLEEVE BRACKET ASS’Y 220V | 1 |
85 | METAL SLEEVE 6200ZZ | 1 |
86A | ARMATURE 115V | 1 |
86B | ARMATURE 220V | 1 |
87 | METAL SLEEVE 608ZZ | 1 |
88A | STATOR 115V | 1 |
88B | STATOR 220V | 1 |
89 | CRPH SCREW M5X55 W/H WASHER | 2 |
90 | INSULATING WASHER | 2 |
91A | STATOR SPIDER ASS’Y 115V | 1 |
91B | STATOR SPIDER ASS’Y 220V | 1 |
92 | CARBON BRUSH | 2 |
93 | BRUSH CAP | 2 |
94 | HSH BOLTM5X25 W/H WASHER | 4 |
95A | RATING PLATE 115V | 1 |
95B | RATING PLATE 220V | 1 |
96 | RIVET 0X4.8MM | 4 |
97 | WARNING LABEL | 1 |
98 | CRFH SCREW M3X8 | 2 |
99 | GRIP | 1 |
100 | HSH BOLT M5X30 | 2 |
101 | BUSH 3.2X8X3.5 | 2 |
102 | CAVITY HSH SET SCREW M2.6X3 | 2 |
103 | DIAL | 1 |
95 | SUPPORT SFA-315 M3X15 | 2 |
105 | SET BOARD | 1 |
106 | SET SPRING | 1 |
107 | SPRING WASHER M3 | 2 |
108 | CRPH SCREW M3X8 | 3 |
109 | CRPH SCREW M4X6 W/H WASHER | 5 |
110A | GRADUATION LBF.FT | 1 |
110B | GRADUATION N.M | 1 |
111 | CRFH SCREW M4X30 | 2 |
112 | GRIP COVER | 1 |
113 | TRIGGER SWITCH F-20-5A | 1 |
114 | CORD CLUMP | 2 |
115 | CRPH SCREW M4X14 | 2 |
116 | CORD ARMOUR | 1 |
117 | CORD ARMOUR WASHER | 1 |
118A | CORD ASS’Y 115V | 1 |
118B | CORD ASS’Y 220V | 1 |
119 | PLUG 220V | 1 |
120 | INSULATED CONNECTOR 2-SD | 4 |
121 | CONDENSER PAB 104 | 1 |
122 | CONTROL BOX BASE 115V & 220V COMPATIBLE | 1 |
123 | CRFH SCREW M5X12 | 2 |
124A | CONTROL BOX ASS’Y 115V | 1 |
124B | CONTROL BOX ASS’Y 220V | 1 |
125A | CONTROL BOX COVER INCL CPU 115V | 1 |
125B | CONTROL BOX COVER INCL CPU 220V | 1 |
126 | CRFH SCREW M5X30 | 2 |
127 | VOLUME ASS’Y RV16YN | 1 |
128 | INSULATED TERMINAL TMEV2-4 | 3 |
129 | TEETH WASHER M4 | 2 |
130 | 1ST PINION GEAR ASS’Y | 1 |
131 | METAL CASE | 1 |
132 | CONNECTOR 220V | 1 |
133 | SCREW DRIVER | 1 |
134 | INSTRUCTION MANUAL | 1 |
Parts not listed are part of an assembly and are not available separately.
