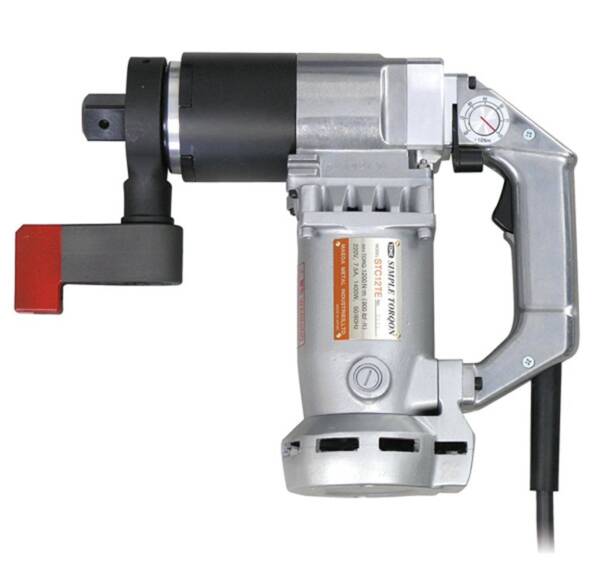

TONE STC-12AE / STC-12TE Electric Torque Wrench
The STC-12AE / STC-12TE torque control wrench with 1″ (25.4mm) square drive has an adjustable torque range of 370-900 ft-lb. Available accessories include 1″ square drive sockets, Q-connector, L-foot, and I-bar.
Fully Tensioned Structural Bolts: | Adjustable Torque Range: |
A325 – 5/8″, 3/4″, 7/8″, 1″ | 370-900 ft-lb. |
A325M – M16, M20, M22, M24 | 500-1,200 N-m |
A490 – 5/8″, 3/4″, 7/8″ | |
A325M – M16, M20, M22 |
Specifications
Model | STC-12AE/TE |
Voltage | 115 V |
Maximum Current | 15 A |
Rated Power | 1,200 W |
Frequency | 50-60 Hz |
Maximum Torque | 370-900 ft-lb. (500-1220 N-m) |
No-load Speed | 16 rpm |
Weight | 19.8 lb. |
TONE STC-12AE / STC-12TE Electric Torque Control Wrench Parts
Part # | Description | Q’ty |
1 | SPIROLOX | 1 |
2 | SPIRO STOPPER | 1 |
3 | SUB SPIRO STOPPER | 1 |
4 | SPIROLOX | 1 |
5A | REACTION BASE ASS’Y | 1 |
5B | OIL SEAL | 1 |
6 | BUSH | 1 |
7 | SQUARE DRIVE | 1 |
8 | HSH REAMER BOLT | 3 |
9 | 3RD SPIDER ASS’Y | 1 |
10 | STEEL BALL | 34 |
STEEL BALL | 4 | |
11 | INTERNAL GEAR | 1 |
12 | BUSH | 1 |
13 | 3RD GEAR PIN | 3 |
14 | 3RD IDLE GEAR | 3 |
15 | NEEDLE CAGE | 6 |
16 | GEAR CASE | 1 |
17 | BUSH | 1 |
18 | 3RD PINION GEAR | 1 |
19 | 2ND IDLE GEAR ASS’Y | 1 |
20 | 2ND GEAR PIN | 3 |
21 | 2ND CAGE | 1 |
22 | NEEDLE CAGE | 3 |
23 | 2ND IDLE GEAR | 3 |
24 | 2ND PINION GEAR | 1 |
25 | BUSH | 1 |
26 | 1ST IDLE GEAR ASS’Y | 1 |
27 | 1ST GEAR PIN | 3 |
28 | 1ST CAGE | 1 |
29 | BEARING | 3 |
30 | 1ST IDLE GEAR | 3 |
31 | FRICTION DISK | 1 |
32 | SPIROLOX | 1 |
33 | SPIRO WASHER | 1 |
34 | BEARING | 1 |
35 | THRUST WASHER | 1 |
36 | STEPPED BUSH | 1 |
37 | FLANGE | 1 |
38 | HSH BOLT M4X10 | 6 |
39 | BEARING | 1 |
40 | SPIROLOX | 1 |
41 | HOUSING | 1 |
42 | RETAINING RING C-TYPE | 2 |
43 | BEARING | 2 |
44 | BEVEL GEAR | 1 |
45 | 1ST PINION GEAR | 1 |
46 | SPIROLOX | 1 |
47 | BUSH | 1 |
48 | STEEL BALL | 30 |
49 | CHANGE SPOOL | 1 |
50 | SPOOL GUIDE | 1 |
51 | GUIDE PIN | 2 |
52 | STEEL BALL | 23 |
STEEL BALL | 1 | |
53 | CHANGE DRUM | 1 |
54 | BEARING | 1 |
55 | HOUSING COVER | 1 |
56 | SPRING | 1 |
57 | HSH BOLT M5X45 | 4 |
58A | CHANGE LEVER BASE PLATE | 1 |
58B | CHANGE LEVER KNOB | 1 |
58C | CRFH SCREW M4X8 | 1 |
59 | SPIROLOX | 1 |
60 | E-NUT M5 | 2 |
61 | PINION BEVEL GEAR | 1 |
62 | WOODRUFF KEY | 2 |
63 | BEARING | 1 |
64 | RETAINING RING C-TYPE | 1 |
65 | MOTOR GEAR | 1 |
66 | RETAINING RING C-TYPE | 1 |
67 | STUD BOLT | 2 |
68 | RETAINING RING C-TYPE | 1 |
69 | MOTOR PINION | 1 |
70 | HSH BOLT M5X16 | 4 |
71A | MOTOR ASS’Y 115V | 1 |
71B | MOTOR ASS’Y 220V | 1 |
72A | BEARING BRACKET ASS’Y 115V | 1 |
72B | BEARING BRACKET ASS’Y 220V | 1 |
73 | BEARING | 1 |
74A | ARMATURE 115V | 1 |
74B | ARMATURE 220V | 1 |
75 | BEARING | 1 |
76A | STATOR 115V | 1 |
76B | STATOR 220V | 1 |
77 | CRPH SCREW M5X55 W/ WASHER | 2 |
78 | INSULATING WASHER | 2 |
79A | STATOR SPIDER ASS’Y 115V | 1 |
79B | STATOR SPIDER ASS’Y 220V | 1 |
80 | BRUSH CAP | 2 |
81 | CARBON BRUSH | 2 |
82 | HSH BOLTM5X25 W/ WASHER | 4 |
83 | WARNING LABEL | 1 |
84A | RATING PLATE 115V | 1 |
84B | RATING PLATE 220V | 1 |
85 | RIVET | 4 |
86 | CRFH SCREW M3X8 | 2 |
87 | GRIP | 1 |
88 | HSH BOLT M5X30 | 2 |
90 | CAVITY HSH SET SCREW M2.6X3 | 2 |
91 | DIAL | 1 |
92 | SUPPORT M3X15 | 2 |
93 | SET BOARD | 1 |
94 | SET SPRING | 1 |
95 | SPRING WASHER M3 | 2 |
96 | CRPH SCREW M3X8 | 2 |
98 | CRPH SCREW M4X6 W/ WASHER | 5 |
99A | GRADUATION LBF.FT | 1 |
99B | GRADUATION N.M | 1 |
100 | CRFH SCREW M4X30 | 2 |
101 | GRIP COVER | 1 |
102 | CORD CLAMP | 2 |
103 | CRPH SCREW M4X14 | 2 |
104 | CORD ARMOUR | 1 |
105 | CORD ARMOUR WASHER | 1 |
106A | CORD ASS’Y 115V | 1 |
106B | CORD ASS’Y 220V | 1 |
108 | INSULATED CONNECTOR | 4 |
109 | CONDENSER | 1 |
111 | CRFH SCREW M5X12 | 2 |
113 | CRFH SCREW M5X30 | 2 |
114A | CONTROL BOX ASS’Y 115V (INCL #110 & #112) | 1 |
114B | CONTROL BOX ASS’Y 220V (INCL #110 & #112) | 1 |
115 | VOLUME ASS’Y LONG | 1 |
116 | INSULATED TERMINAL | 3 |
117 | WASHER M4 | 2 |
118 | 1ST PINION GEAR ASS’Y | 1 |
119 | METAL CASE | 1 |
120 | Q-TYPE REACTION BAR | 1 |
121 | L-TYPE REACTION BAR | 1 |
123 | I-TYPE REACTION BAR | 1 |
124 | TAPERED HSH SET SCREW M6X6 | 1 |
200 | TRIGGER SWITCH ASS’Y | 1 |
Parts not listed are part of an assembly and are not available separately.
