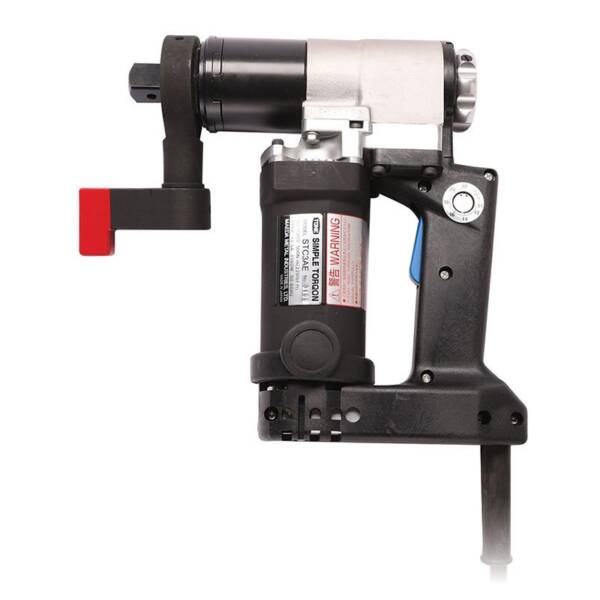

TONE STC-3AE / STC-3TE Electric Torque Wrench
The STC-3AE / STC-3TE electric torque control wrench with 3/4″ (19mm) square drive has an adjustable torque range of 110-220 ft-lb. Available accessories include 3/4″ square drive sockets, Q-connector, L-foot, and I-bar.
| Fully Tensioned Structural Bolts: | Adjustable Torque Range: |
| A325 – 5/8″ | 110-220 ft-lb. |
| A325M – M16 | 150-300 N-m |
Want to talk to a specialist now?
(888) 838 6500
Business Hours: 8am - 5pm Est
Specifications
| Model | STC-3AE/TE |
| Voltage | 115 V |
| Maximum Current | 13.5 A |
| Rated Power | 1,100 W |
| Frequency | 50-60 Hz |
| Maximum Torque | 110-220 ft-lb. (150-300 N-m) |
| No-load Speed | 28 rpm |
| Weight | 10.1 lb. |
TONE STC-3AE / STC-3TE Electric Torque Control Wrench Parts
| Part # | Description | Q’ty |
| 1 | SPIROLOX | 1 |
| 2 | BAYONET LOCK | 1 |
| 3A | REACTION BASE ASS’Y | 1 |
| 3B | OIL SEAL | 1 |
| 4 | BUSH | 1 |
| SQUARE DRIVE | 1 | |
| 6 | HSH REAMER BOLT | 3 |
| 7 | SPIDER | 1 |
| 8 | STEEL BALL | 31 |
| 9 | BUSH | 1 |
| 10 | INTERNAL GEAR | 1 |
| 11 | 3RD GEAR PIN | 3 |
| 12 | NEEDLE CAGE | 6 |
| 13 | 3RD IDLE GEAR | 3 |
| 14 | GEAR CASE | 1 |
| 15 | BUSH | 1 |
| 16 | 3RD PINION GEAR | 1 |
| 17 | THRUST WASHER | 1 |
| 18 | 2ND IDEL GEAR ASS’Y | 1 |
| 19 | 2ND CAGE | 1 |
| 20 | 2ND IDLE GEAR | 3 |
| 21 | NEEDLE CAGE | 3 |
| 22 | 2ND GEAR PIN | 3 |
| 23 | 2ND PINION GEAR | 1 |
| 24 | THRUST WASHER | 2 |
| 25 | 1ST IDLE GEAR ASS’Y | 1 |
| 26 | 1ST GEAR PIN | 3 |
| 27 | 1ST CAGE | 1 |
| 28 | NEEDLE CAGE | 3 |
| 29 | 1ST IDLE GEAR | 3 |
| 30 | METAL SLEEVE | 1 |
| 31 | FRICTION DISK | 1 |
| 32 | METAL SLEEVE | 1 |
| 33 | SPIROLOX | 1 |
| 34 | SPIRO WASHER | 1 |
| 35 | HOUSING | 1 |
| 36 | RETAINING RING C-TYPE | 1 |
| 37 | THRUST WASHER | 1 |
| 38 | METAL SLEEVE | 2 |
| 39 | CIRCLIP | 1 |
| 40 | BUSH | 1 |
| 41 | CIRCLIP | 2 |
| 42 | NEEDLE CAGE | 1 |
| 43 | BEVEL GEAR | 2 |
| 44 | METAL SLEEVE | 1 |
| 45 | STEEL BALL | 4 |
| 46 | 1ST PINION GEAR | 1 |
| 47 | CHANGE SPOOL | 1 |
| 48 | CIRCLIP | 1 |
| 49 | NEEDLE CAGE | 1 |
| 50 | METAL SLEEVE | 1 |
| 51 | NEEDLE PIN | 1 |
| 52 | SPOOL GUIDE | 1 |
| 53 | RETAINING RING C-TYPE | 1 |
| 54 | METAL SLEEVE | 1 |
| 55 | SPOOL HOLDER | 1 |
| 56 | GUIDE PIN | 2 |
| 57 | SPIROLOX | 1 |
| 58 | RETAINING RING C-TYPE | 1 |
| 59 | CHANGE DRUM | 1 |
| 60 | HOUSING COVER | 1 |
| 61 | HSH BOLT M4X12 | 4 |
| 62 | CLICK PLUNGER ASS’Y | 2 |
| 63 | CHANGE GRIP | 1 |
| 64 | PINION BEVEL GEAR | 1 |
| 65 | KEY | 1 |
| 66 | METAL SLEEVE | 1 |
| 67 | MOTOR GEAR | 1 |
| 68 | RETAINING RING C-TYPE | 1 |
| 69 | METAL SLEEVE | 1 |
| 70 | HSH BOLT M4X30 | 2 |
| 71 | IDLE PIN | 1 |
| 72 | MOTOR IDLE GEAR | 1 |
| 73 | METAL SLEEVE | 1 |
| 74 | SPIROLOX | 1 |
| 75 | BUSH | 1 |
| 76 | HSH BOLT M4X20 | 2 |
| 77 | BRACKET | 1 |
| 78 | SPRING WASHER M5 | 2 |
| 79 | HEX BOLT M5X16 | 2 |
| 80 | HSH BOLT M5X12 | 1 |
| 81A | MOTOR ASS’Y 115V | 1 |
| 81B | MOTOR ASS’Y 220V | 1 |
| 82 | RETAINING RING C-TYPE | 1 |
| 83 | METAL SLEEVE | 1 |
| 84 | METAL SLEEVE BRACKET | 1 |
| 85A | ARMATURE 115V | 1 |
| 85B | ARMATURE 220V | 1 |
| 86 | CRPH SCREW M4X65 W/WASHER | 2 |
| 87 | METAL SLEEVE | 1 |
| 88A | STATOR 115V | 1 |
| 88B | STATOR 220V | 1 |
| 89 | INSULATING WASHER | 2 |
| 90A | STATOR SPIDER ASS’Y 115V | 1 |
| 90B | STATOR SPIDER ASS’Y 220V | 1 |
| 91 | CARBON BRUSH | 2 |
| 92 | BRUSH CAP | 2 |
| 93 | RUBBER PLUG | 1 |
| 94 | WARNING LABEL | 1 |
| 95A | RATING PLATE 115V | 1 |
| 95B | RATING PLATE 220V | 1 |
| 96 | CRPH SCREW M4X6 W/WASHER | 1 |
| 97 | CUSHION RUBBER | 1 |
| 98 | HSH BOLT M5X35 | 4 |
| 99 | GRIP | 1 |
| 100 | CRPH SCREW M4X35 | 2 |
| 101 | PIN | 1 |
| 102 | SWITCH LEVER | 1 |
| 103 | SPACER | 2 |
| 104 | SET BOARD | 1 |
| 105 | CAVITY HSH SET SCREW M2.6X3 | 2 |
| 106 | DIAL | 1 |
| 107 | SET SPRING | 1 |
| 108 | SPRING WASHER M3 | 2 |
| 109 | CRPH SCREW M3X6 | 2 |
| 110 | TRIGGER SWITCH | 1 |
| 111 | CRPH SCREW M3X14 | 2 |
| 112 | INSULATED CONNECTOR | 4 |
| 113 | GRIP COVER | 1 |
| 114 | CRPH SCREW M4X14 | 7 |
| 115A | GRADUATION LBF.FT | 1 |
| 115B | GRADUATION N.M | 1 |
| 116 | CONDENSER | 1 |
| 117A | CONTROL BASE ASS’Y 115V | 1 |
| 117B | CONTROL BASE ASS’Y 220V | 1 |
| 118 | CORD ARMOUR | 1 |
| 119 | CORD ARMOUR WASHER | 1 |
| 120A | CORD ASS’Y 115V | 1 |
| 120B | CORD ASS’Y 220V | 1 |
| 121 | INSULATED TERMINAL | 1 |
| 122 | VOLUME ASS’Y | 1 |
| 123 | 1ST PINION GEAR ASS’Y | 1 |
| 125 | METAL CASE | 1 |
| 126 | Q-TYPE REACTION BAR | 1 |
| 127 | L-TYPE REACTION BAR | 1 |
| 129 | I-TYPE REACTION BAR | 1 |
| 130 | TAPERED HSH SET SCREW M6X6 |
Parts not listed are part of an assembly and are not available separately.
