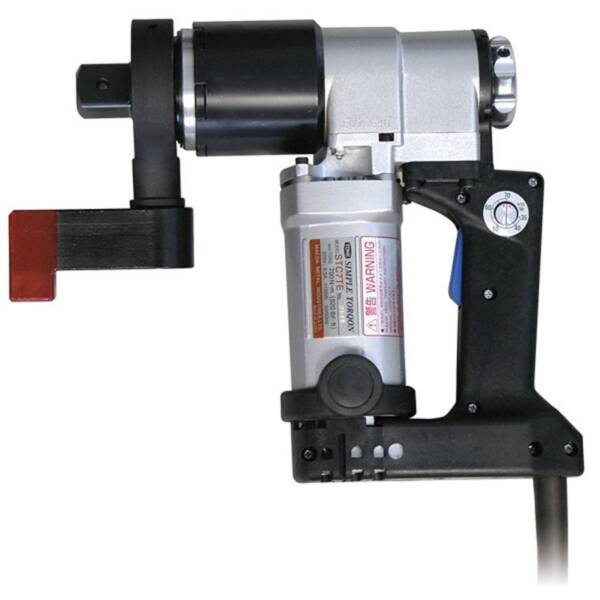

TONE STC-7AE / STC-7TE Electric Torque Wrench
The STC-7AE / STC-7TE torque control wrench with 1″ (25.4mm) square drive has an adjustable torque range of 260-520 ft-lb. Available accessories include 1″ square drive sockets, Q-connector, L-foot, and I-bar.
Fully Tensioned Structural Bolts: | Adjustable Torque Range: |
A325 – 5/8″, 3/4″, 7/8″ | 260-520 ft-lb. |
A325M – M16, M20, M22 | 350-700 N-m |
A490 – 5/8″, 3/4″ | |
A325M – M16, M20 |
Specifications
Model | STC-7AE/TE |
Voltage | 115 V |
Maximum Current | 13.5 A |
Rated Power | 1,100 W |
Frequency | 50-60 Hz |
Maximum Torque | 260-520 ft-lb. (350-700 N-m) |
No-load Speed | 17 rpm |
Weight | 13.6 lb. |
TONE STC-7AE / STC-7TE Electric Torque Control Wrench Parts
Part # | Description | Q’ty |
1 | SPIROLOX | 1 |
2 | SPIRO STOPPER | 1 |
3 | SUB SPIRO STOPPER | 1 |
4 | SPIROLOX | 2 |
5A | REACTION BASE ASS’Y | 1 |
5B | OIL SEAL | 1 |
6 | BUSH | 1 |
7 | SQUARE DRIVE | 1 |
8 | 3RD IDLE GEAR ASS’Y | 1 |
9 | 3RD CAGE | 1 |
10 | 3RD IDLE GEAR | 4 |
11 | NEEDLE CAGE | 8 |
12 | 3RD GEAR PIN | 4 |
13 | STEEL BALL | 35 |
STEEL BALL | 4 | |
14 | BUSH | 1 |
15 | INTERNAL GEAR | 1 |
16 | 3RD PINION GEAR | 1 |
17 | BUSH | 1 |
18 | 2ND IDLE GEAR ASS’Y | 1 |
19 | 2ND CAGE | 1 |
20 | 2ND IDLE GEAR | 4 |
21 | NEEDLE CAGE | 4 |
22 | 2ND GEAR PIN | 4 |
23 | 2ND PINION GEAR | 1 |
24 | BUSH | 1 |
25 | 1ST IDLE GEAR ASS’Y | 1 |
26 | 1ST GEAR PIN | 3 |
27 | 1ST CAGE | 1 |
28 | NEEDLE | 3 |
29 | 1ST IDLE GEAR | 3 |
30 | BEARING | 1 |
31 | FRICTION DISK | 1 |
32 | SPIROLOX | 1 |
33 | SPIRO WASHER | 1 |
34 | BEARING | 1 |
35 | HOUSING | 1 |
36 | CRPH SCREW M4X10 | 4 |
37 | THRUST WASHER | 1 |
38 | BEARING | 2 |
39 | STEPPED BUSH | 1 |
40 | CIRCLIP | 2 |
41 | NEEDLE CAGE | 2 |
42 | BEVEL GEAR | 2 |
43 | BEARING | 1 |
44 | 1ST PINION GEAR | 1 |
45 | CHANGE SPOOL | 1 |
46 | CIRCLIP | 1 |
47 | BEARING | 1 |
48 | NEEDLE PIN | 1 |
49 | SPOOL GUIDE | 1 |
50 | RETAINING RING C-TYPE | 1 |
51 | BEARING | 1 |
52 | SPOOL HOLDER | 1 |
53 | GUIDE PIN | 2 |
54 | SPIROLOX | 1 |
55 | RETAINING RING C-TYPE | 1 |
56 | CHANGE DRUM | 1 |
57 | HOUSING COVER | 1 |
58 | HSH BOLT M4X12 | 4 |
59 | CLICK PLUNGER ASS’Y | 2 |
60 | CHANGE GRIP | 1 |
61 | PINION BEVEL GEAR | 1 |
62 | KEY | 1 |
63 | BEARING | 1 |
64 | MOTOR GEAR | 1 |
65 | RETAINING RING C-TYPE | 1 |
66 | BEARING | 1 |
67 | HSH BOLT M4X30 | 2 |
68 | HSH BUTTON BOLT M5X12 | 1 |
69 | STUD BOLT | 2 |
70 | IDLE PIN | 1 |
71 | MOTOR IDLE GEAR | 1 |
72 | BEARING | 1 |
73 | SPIROLOX | 1 |
74 | BUSH | 1 |
75 | HSH BOLT M4X20 | 2 |
76 | BRACKET | 1 |
77 | E-NUT M5 | 2 |
78A | MOTOR ASS’Y 115V | 1 |
78B | MOTOR ASS’Y 220V | 1 |
79 | RETAINING RING C-TYPE | 1 |
80 | BEARING | 1 |
81 | BEARING BRACKET | 1 |
82A | ARMATURE 115V | 1 |
82B | ARMATURE 220V | 1 |
83 | CRPH SCREW M4X65 W/ WASHER | 2 |
84 | BEARING | 1 |
85A | STATOR 115V | 1 |
85B | STATOR 220V | 1 |
86 | INSULATING WASHER | 2 |
87A | STATOR SPIDER ASS’Y 115V | 1 |
87B | STATOR SPIDER ASS’Y 220V | 1 |
88 | CARBON BRUSH | 2 |
89 | BRUSH CAP | 2 |
90 | RUBBER PLUG | 1 |
91 | WARNING LABEL | 1 |
92A | RATING PLATE 115V | 1 |
92B | RATING PLATE 220V | 1 |
93 | CRPH SCREW M4X6 W/ WASHER | 1 |
94 | CUSHION RUBBER | 1 |
95 | HSH BOLT M5X35 | 4 |
96 | GRIP | 1 |
97 | CRPH SCREW M4X35 | 2 |
98 | PIN 5X18 | 1 |
99 | SWITCH LEVER | 1 |
100 | SPACER | 2 |
101 | SET BOARD | 1 |
102 | CAVITY HSH SET SCREW M2.6X3 | 2 |
103 | DIAL | 1 |
104 | SET SPRING | 1 |
105 | SPRING WASHER M3 | 2 |
106 | CRPH SCREW M3X6 | 2 |
107 | TRIGGER SWITCH | 1 |
108 | CRPH SCREW M3X14 | 2 |
109 | INSULATED CONNECTOR | 4 |
110 | GRIP COVER | 1 |
111 | CRPH SCREW M4X14 | 7 |
112A | GRADUATION LBF.FT | 1 |
112B | GRADUATION N.M | 1 |
113 | CORD ARMOUR | 1 |
114 | CORD ARMOUR WASHER | 1 |
115 | CONDENSER | 1 |
116A | CONTROL BASE ASS’Y 115V | 1 |
116B | CONTROL BASE ASS’Y 220V | 1 |
117A | CORD ASS’Y 115V | 1 |
117B | CORD ASS’Y 220V | 1 |
118 | INSULATED TERMINAL | 1 |
119 | VOLUME ASS’Y | 1 |
120 | 1ST PINION GEAR ASS’Y | 1 |
122 | METAL CASE | 1 |
123 | Q-TYPE REACTION BAR | 1 |
124 | L-TYPE REACTION BAR | 1 |
126 | I-TYPE REACTION BAR | 1 |
127 | TAPERED HSH SET SCREW M6X6 | 5 |
Parts not listed are part of an assembly and are not available separately.
