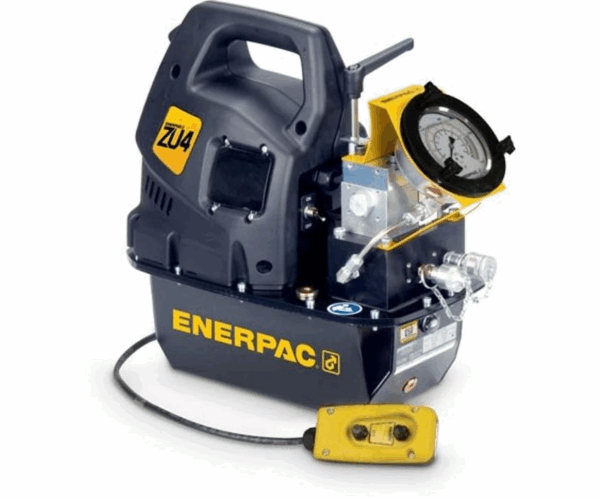

Enerpac ZU4204BB-QH Hydraulic Torque Wrench Pump
The Classic Hydraulic Torque Wrench Pump has an analog gauge and traditional electro-mechanical components including transformers, relays and switches, and delivers durable, safe and efficient hydraulic power.
Product Details
- Patented Z-Class pump technology provides high by-pass pressures for increased productivity
- Enerpac ZU4 Hydraulic Pumps are built to power small to large torque wrenches
- Features Z-Class high-efficiency pump design; higher oil flow and bypass pressure, cooler running and requires 18% less current draw than comparable pumps
- Powerful 1.7 hp universal electric motor provides high power-to-weight ratio and excellent low-voltage operating characteristics
- High strength, molded composite shroud protects motor and electrical components, while providing an ergonomic, non-conductive handle for easy transport
- Low-voltage pendant provides additional safety for the operator
- Valve technology reduces oil operating temperatures and withstands contaminants to increase pump reliability
- Factory installed 10,000 coupler for use with S- and W-Series or other wrenches
- Classic Electric Torque Wrench Pump:
- Delivers durable, safe and efficient hydraulic power
- Has an analog gauge and traditional electro-mechanical components including transformers, relays and switches
- Basic electrical package includes mechanical contactor, ON/OFF toggle switch, pendant with electro-mechanical pushbuttons, 24V transformer timer and operator accessible circuit breaker
Specifications
| Model | Enerpac ZU4204BB-QH w/ Heat Exchanger |
| Maximum Operating Pressure | 10,000 psi |
| Torque Wrenches Compatibility | For use with any brand hydraulic torque wrenches |
| Reservoir Capacity | 277 in3 |
| Usable Oil Capacity | 1 gallon |
| Maximum Flow at Rated Pressure | 60 in3/min |
| Output Flow Rate 100 psi | 700 in3/min |
| Output Flow Rate 700 psi | 535 in3/min |
| Output Flow Rate 5000 psi | 76 in3/min |
| Output Flow Rate 10000 psi |
60 in3/min |
| Motor Size | 1.7 hp |
| Motor Hertz | 50/60 Hz |
| Motor Phases | 1 Ph |
| Motor Voltage | 115 V |
| Duty Cycle | Intermittent |
| Valve Operation | Solenoid |
| Valve Type | 4-way, 2-position |
| Power Source | Electric |
| Pump Control | Pendant |
| Motor Electrical Specification | 115 V, 1 Ph, 50/60 Hz |
| Weight | 82 lb. |
Available Accessories
- Roll Cage
- Skid Bar
- 4-Wrench Manifold
- Twin Torque Wrench Hose in 19.5′ & 39′
