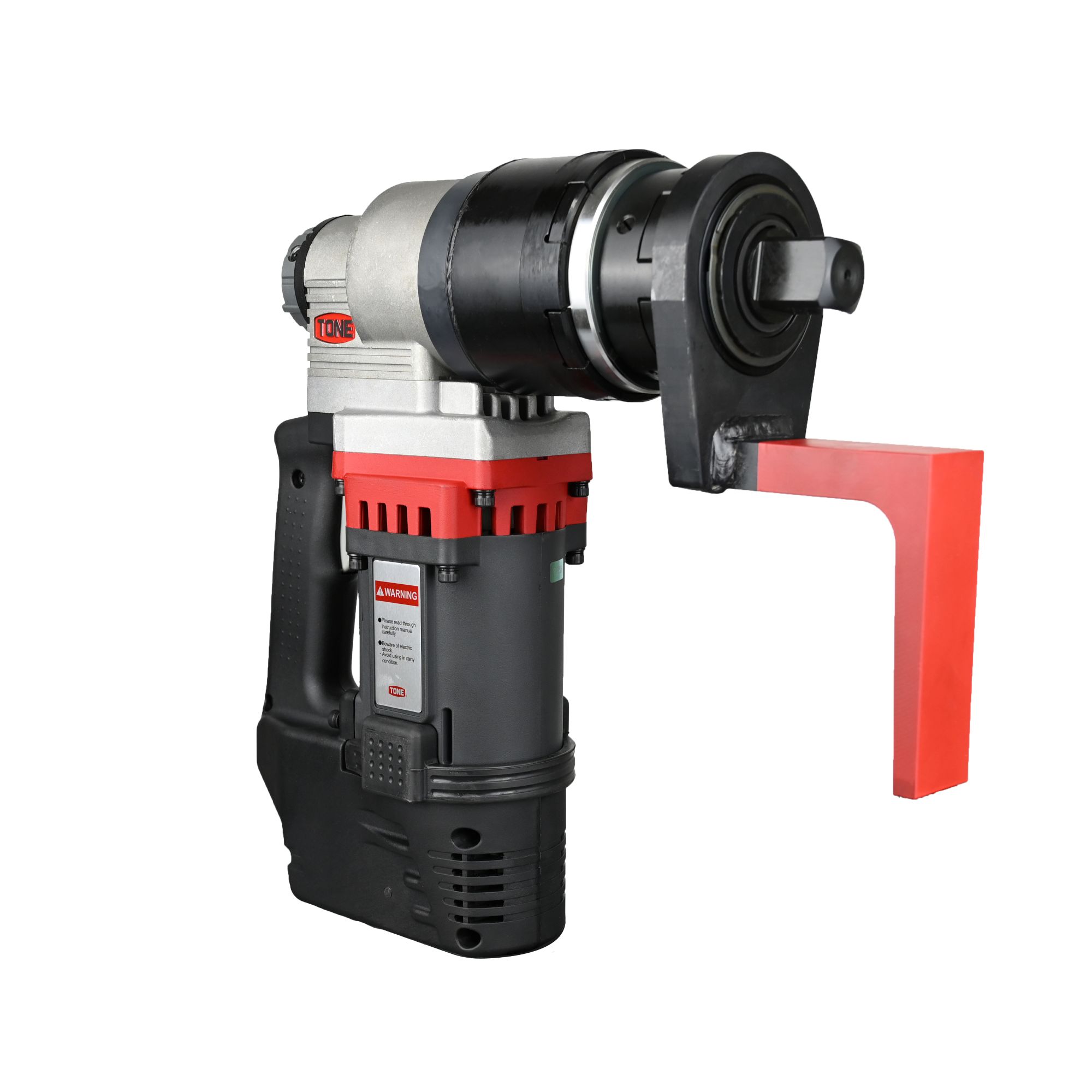

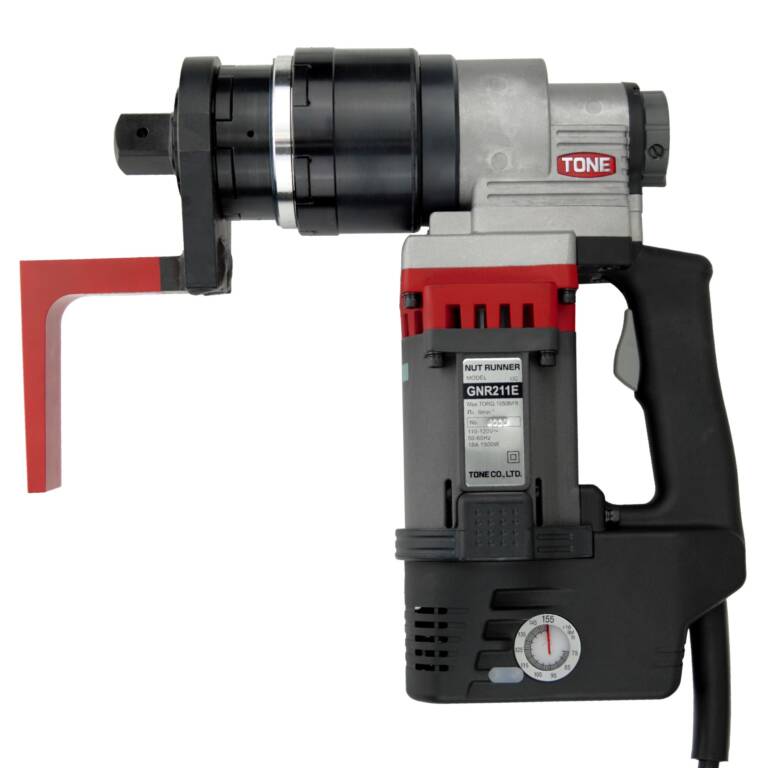

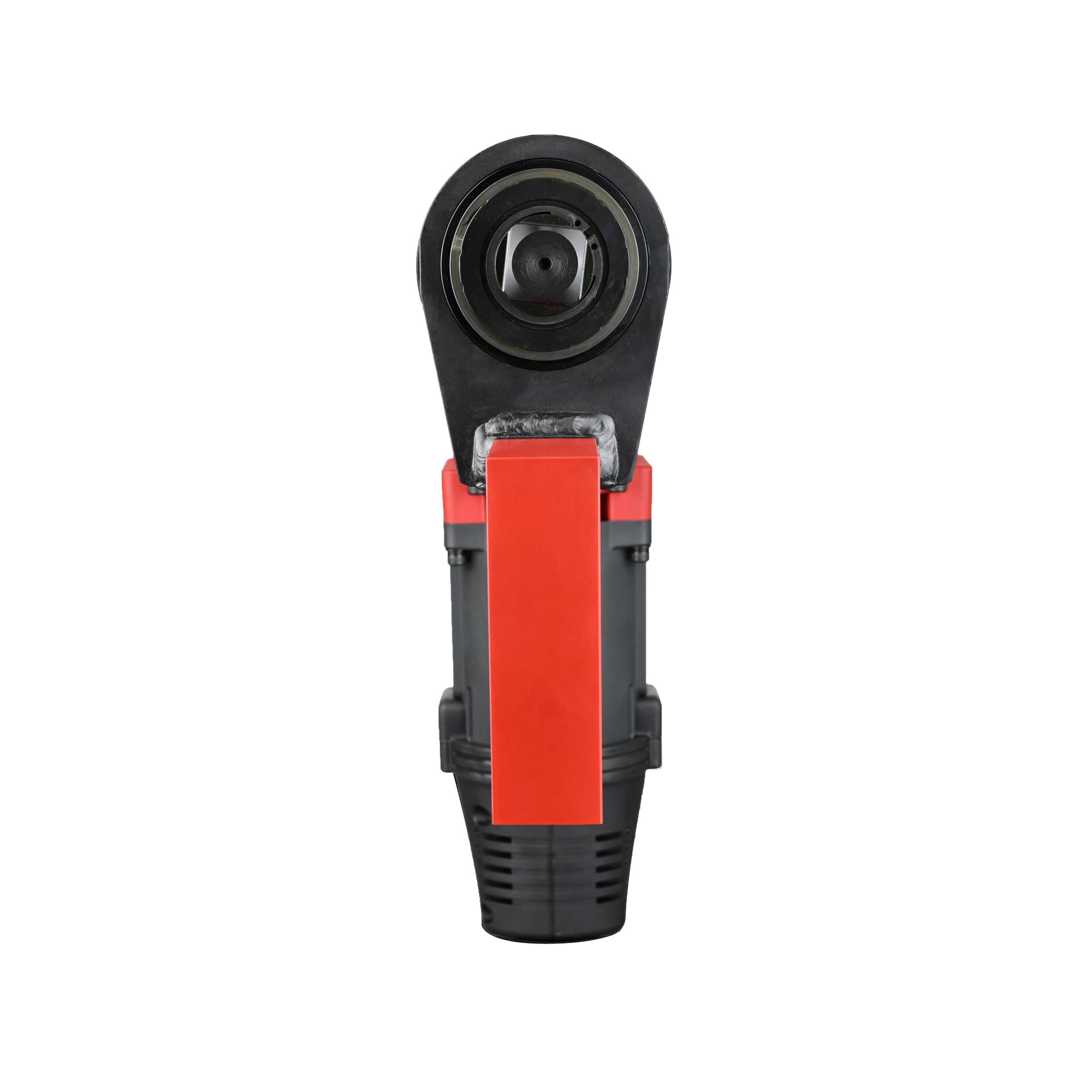

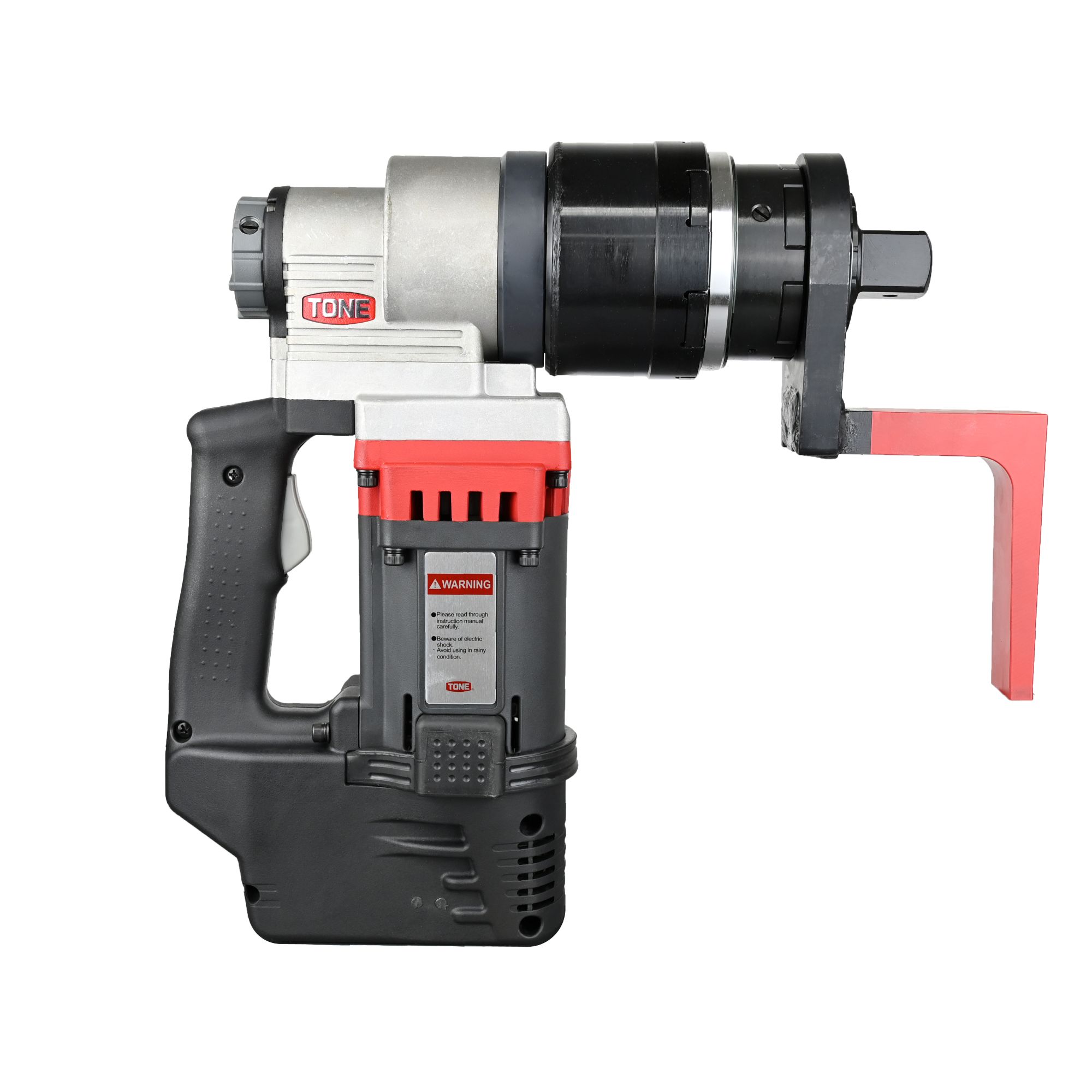

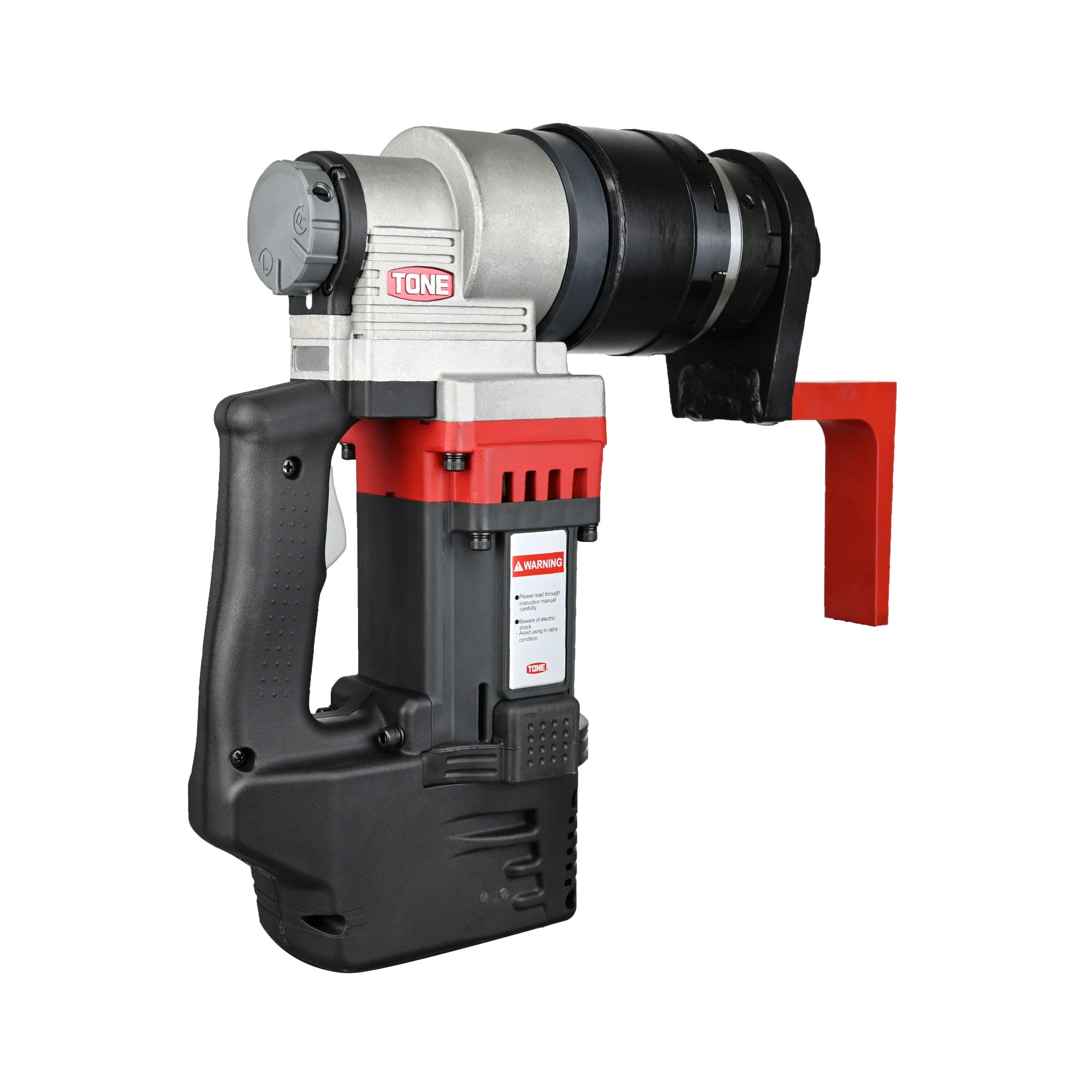

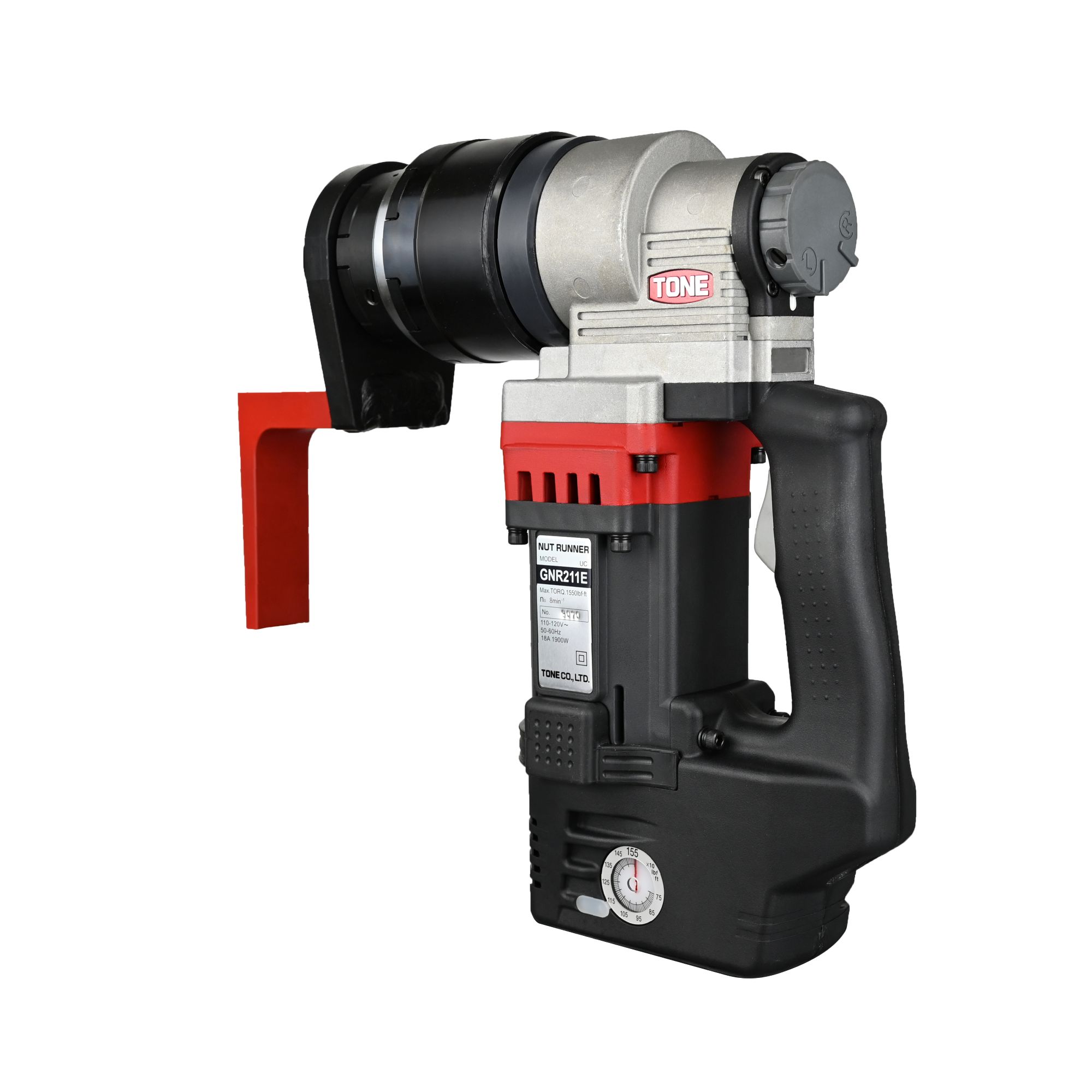

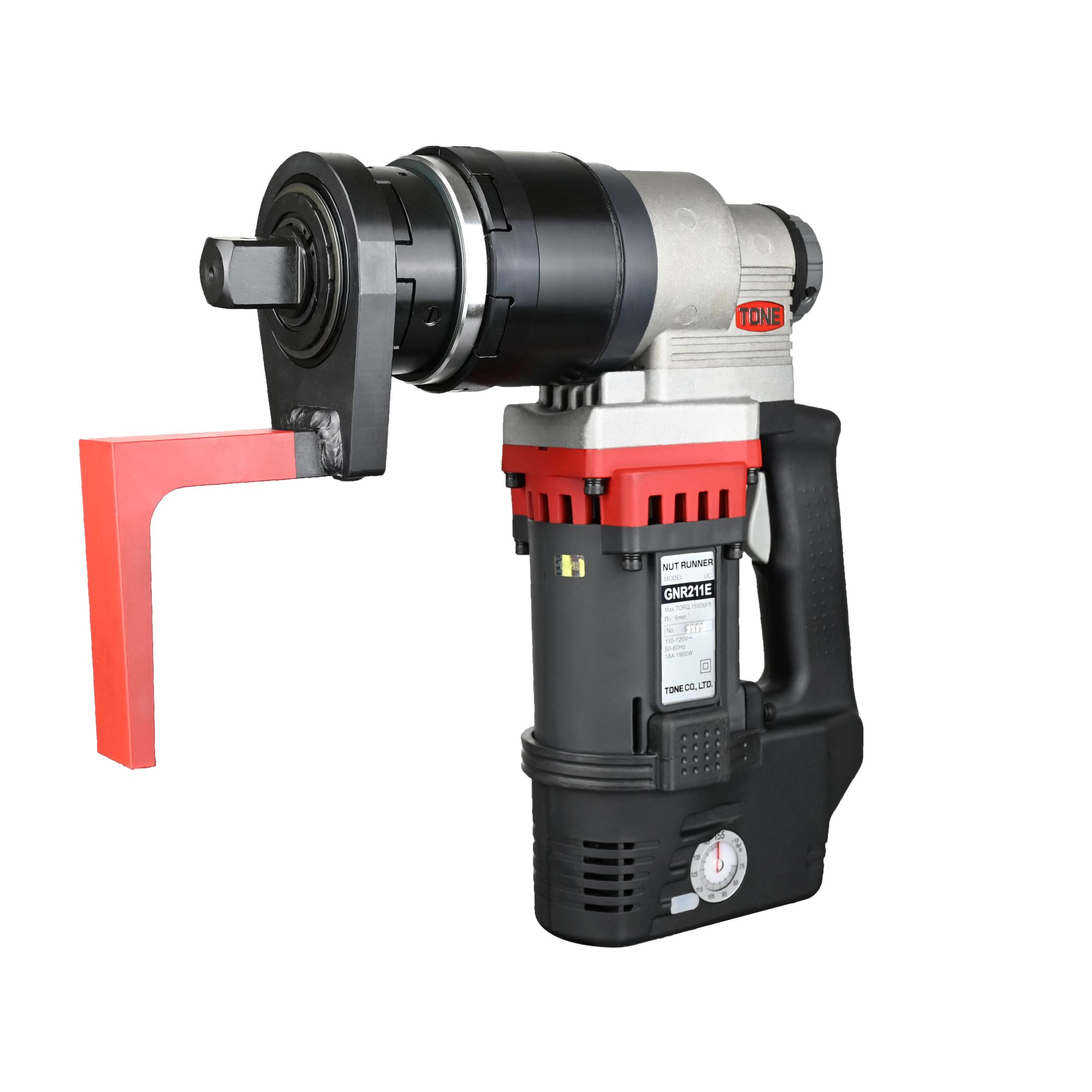

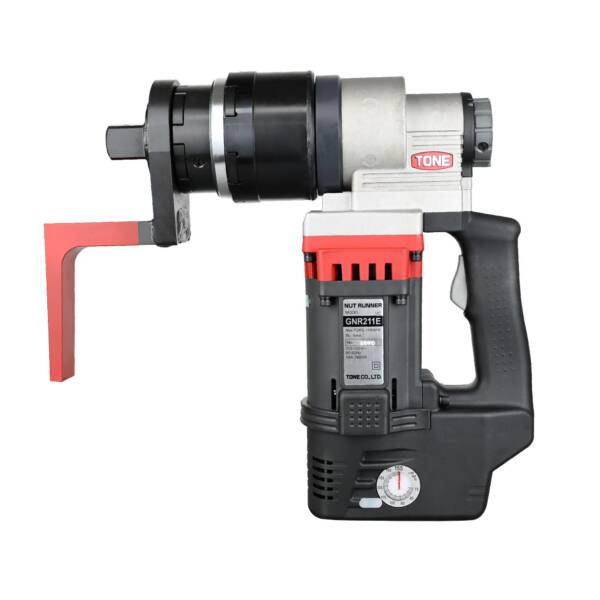

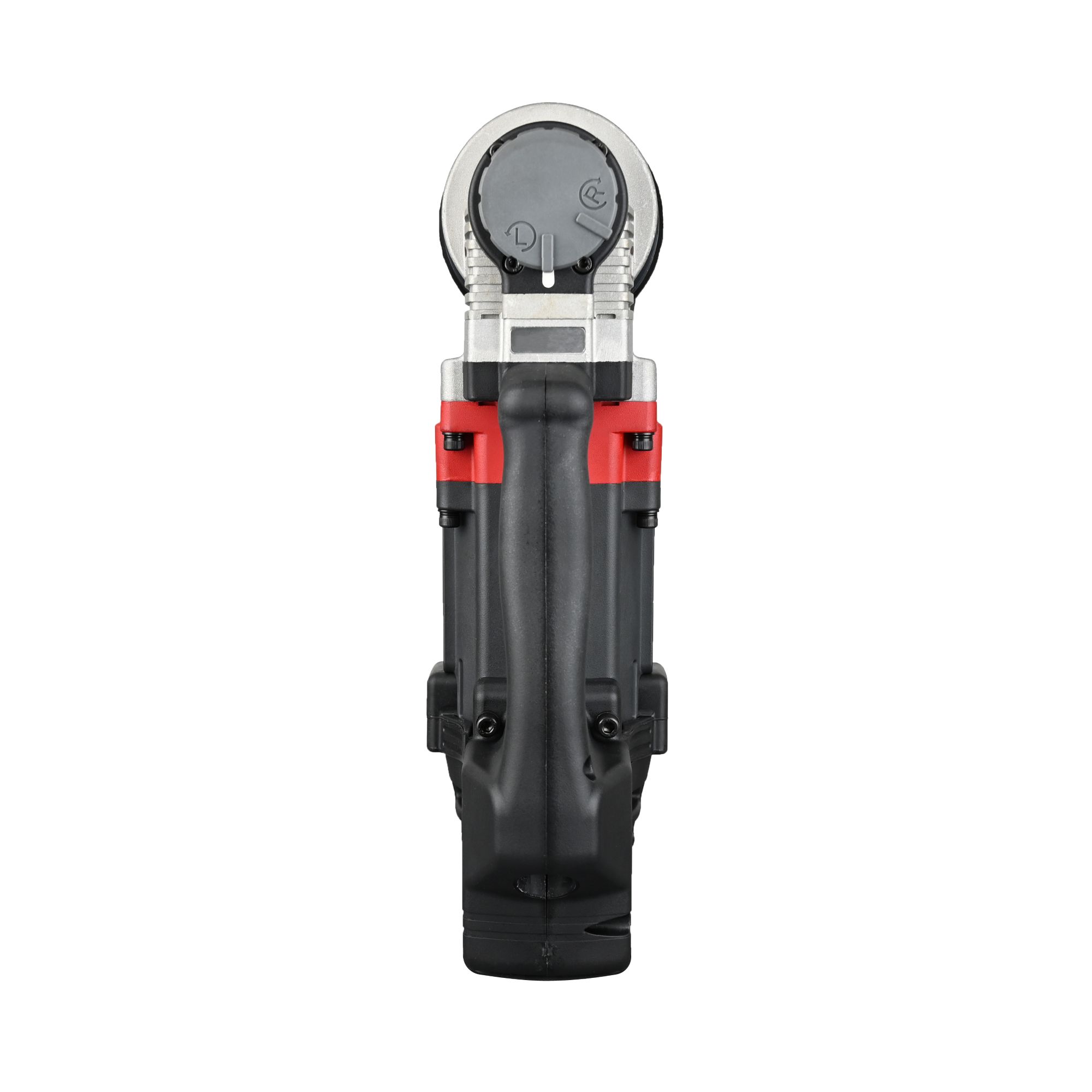

TONE GNR-211E Torque Wrench
State-of-the-art, high accuracy electric nut runner for torque-controlled installation. Powerful, compact, and lightweight.
| Fully Tensioned Structural Bolts:
A325 – 7/8″, 1″, 1-1/8″ A325M – M22, M24, M27 A490 – 7/8″, 1″, 1-1/8″ A490M – M22, M24, M27 |
Adjustable Torque Range:
750–1,550 ft-lb / 1,017–2,100 N-m
|
Specifications
| Model | TONE GNR-211E | TONE GNR-212E |
| Voltage | 110-120 V | 220-230 V |
| Maximum Current | 18.0 A | 9.0 A |
| Maximum Power Consumption | 1,900 W | 1,900 W |
| Adjustable Torque Range | 750~1,550 ft-lb. | 1,017~2,100 N-m |
| No-load Speed | 8 rpm | 8 rpm |
| Square Drive Size | 1″ drive | 1″ drive |
| Tool Weight | 19.4 lb. | 8.8 kg |
- Repeated accuracy of ±5%
- Torque setting dial between 750~1,550 ft-lb.
- Clockwise and counterclockwise torque directions
- Colored LED indicator lights
- Double insulated for enhanced safety
Available Accessories
- X-Holder Extension 100mm (3-7/8″) & 200mm (7-7/8″)
- Digital Torque Meter DTM21
- Impact Sockets
- Bar Sockets
