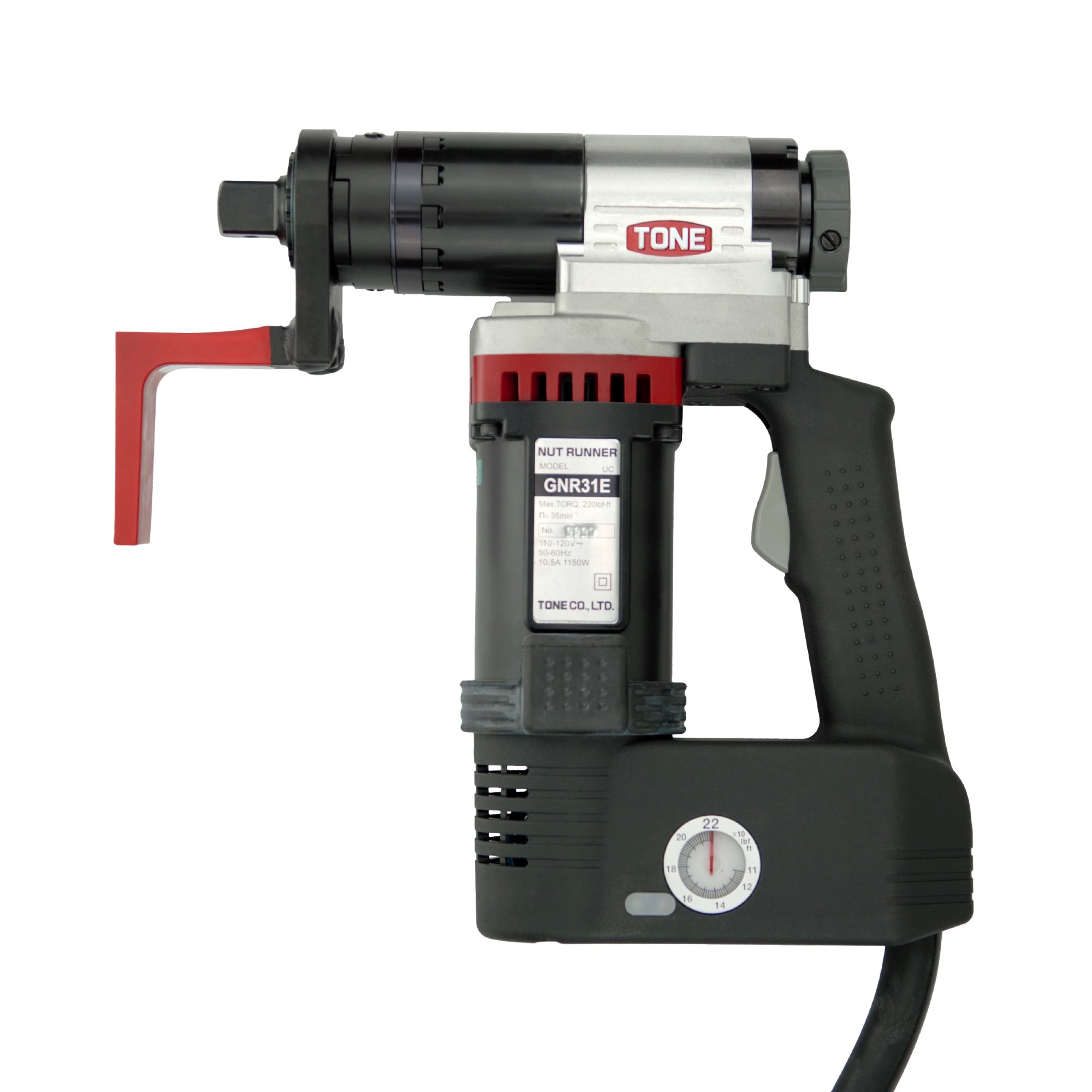

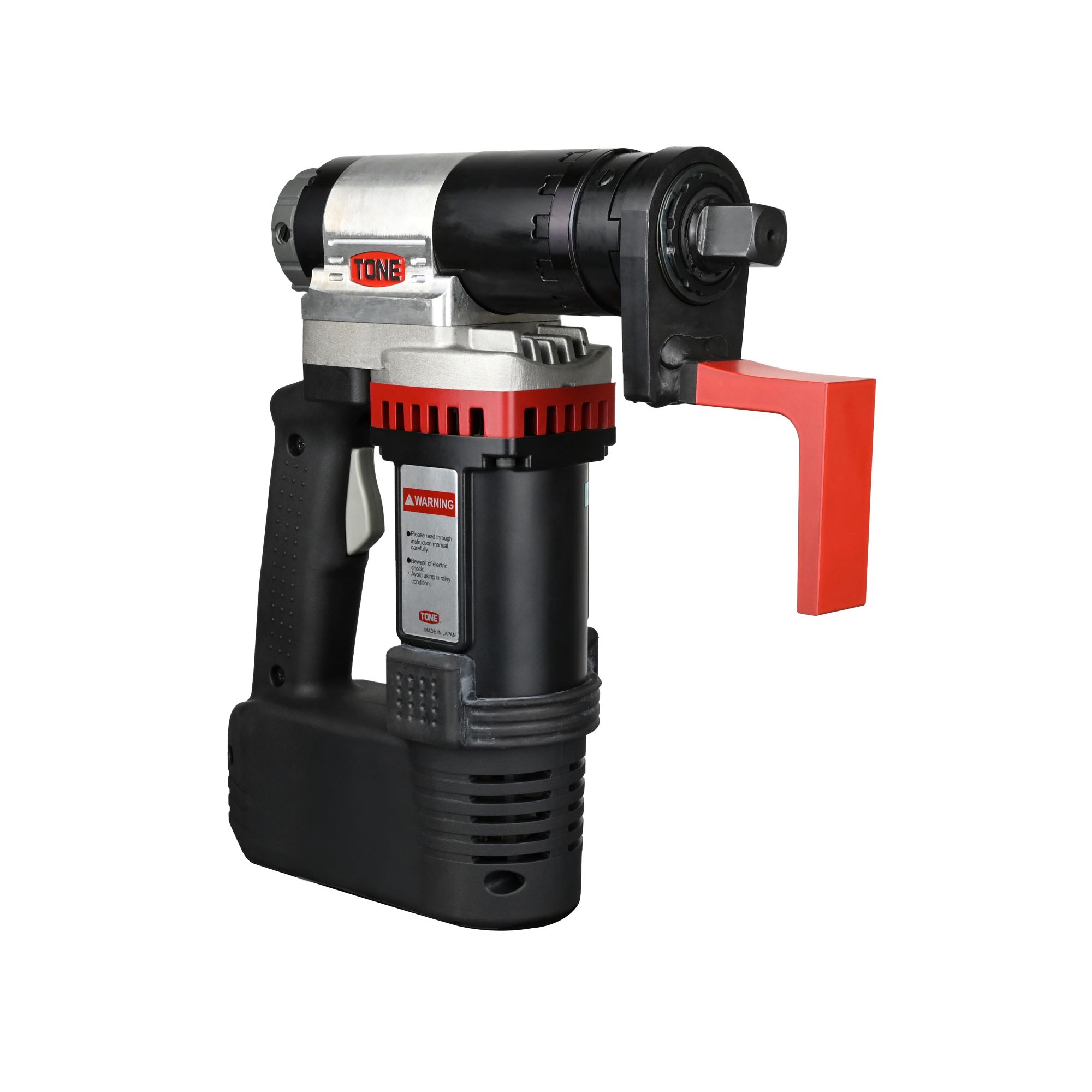

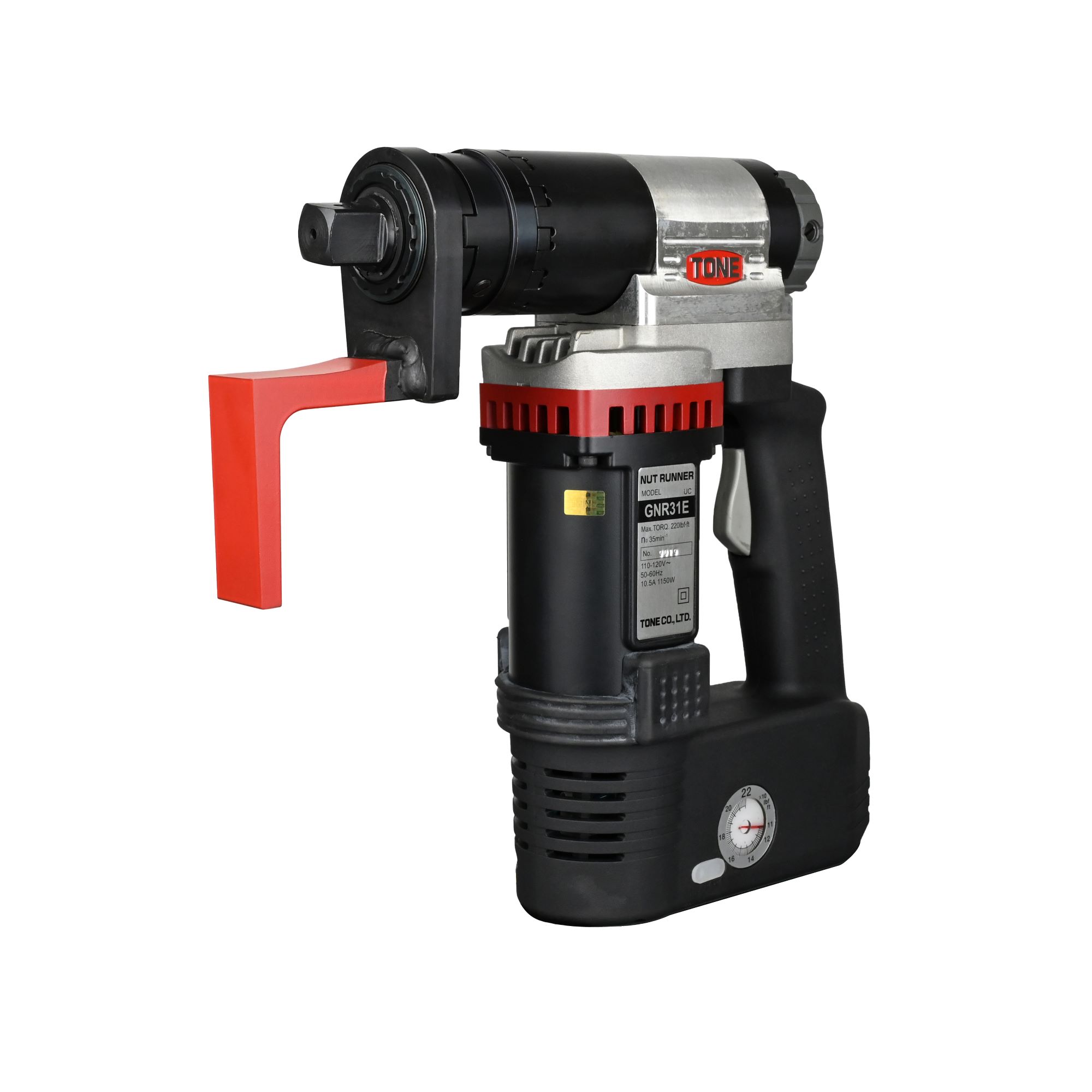

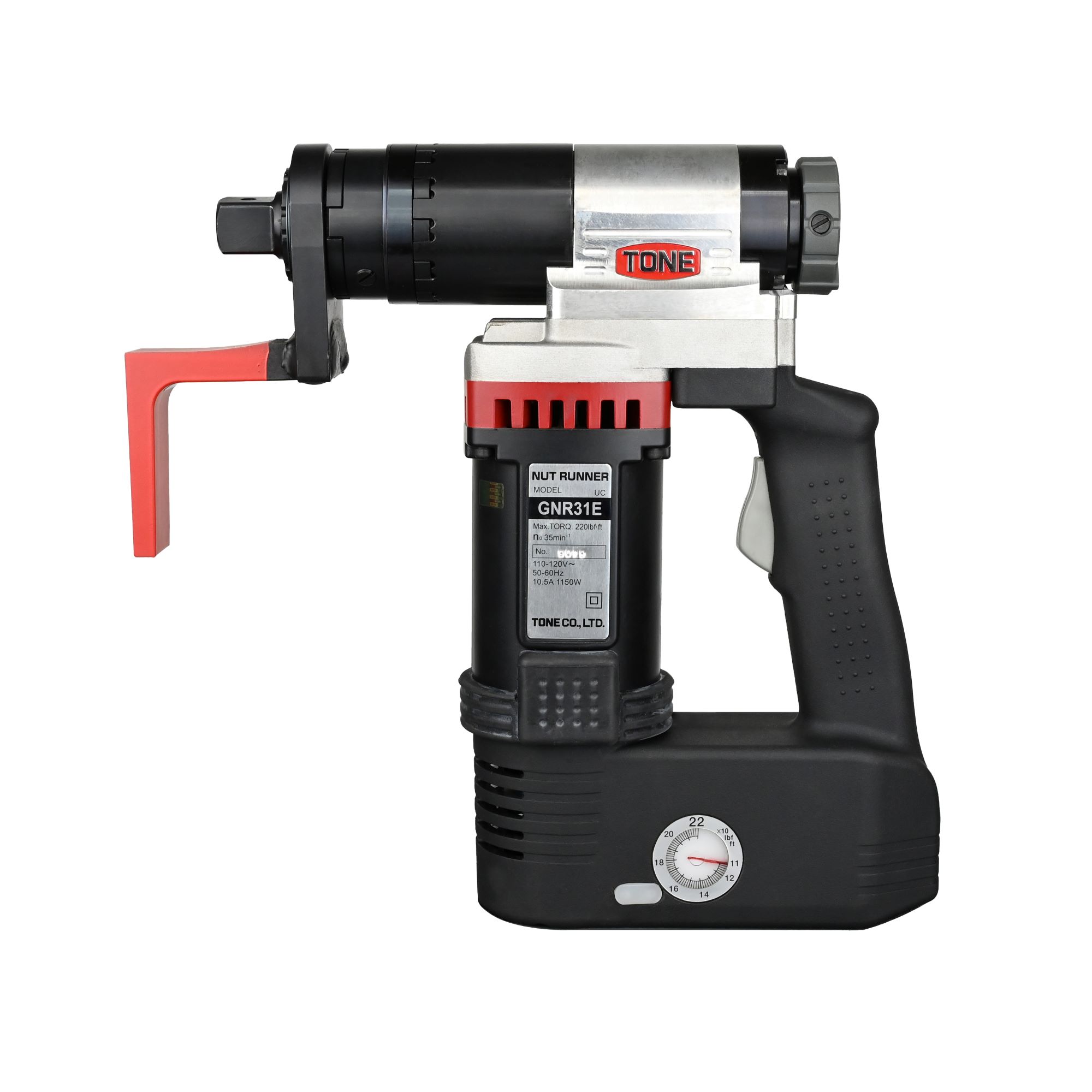

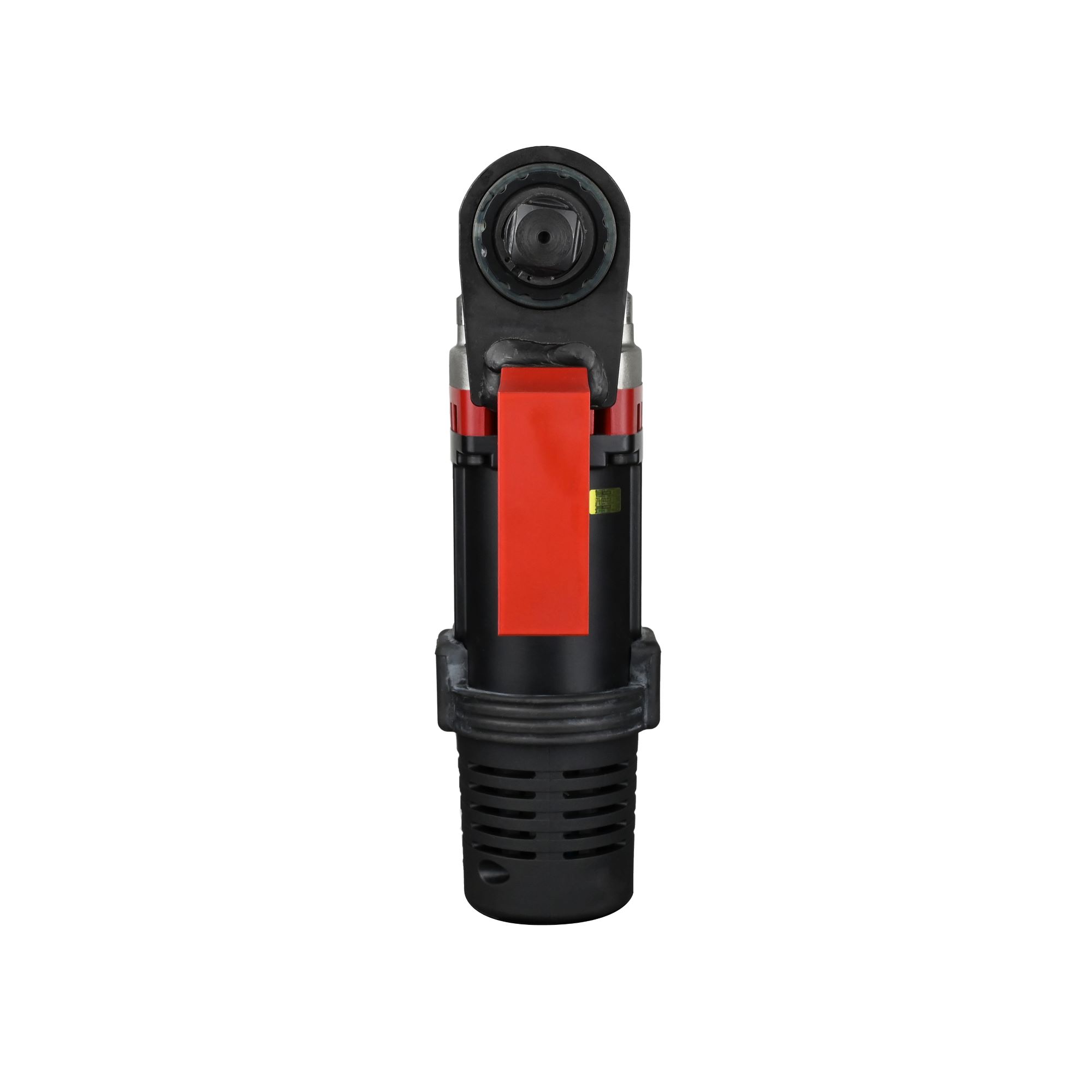

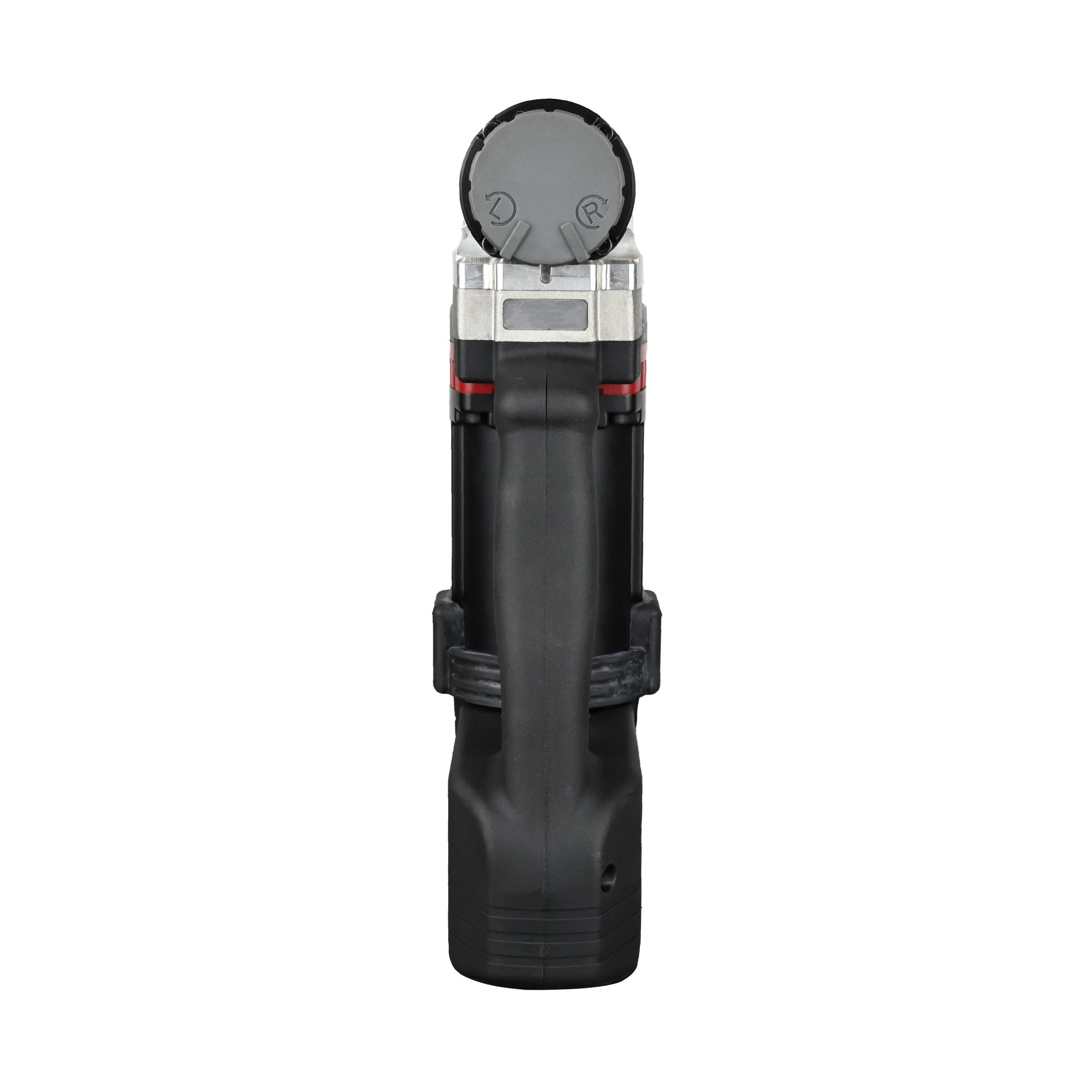

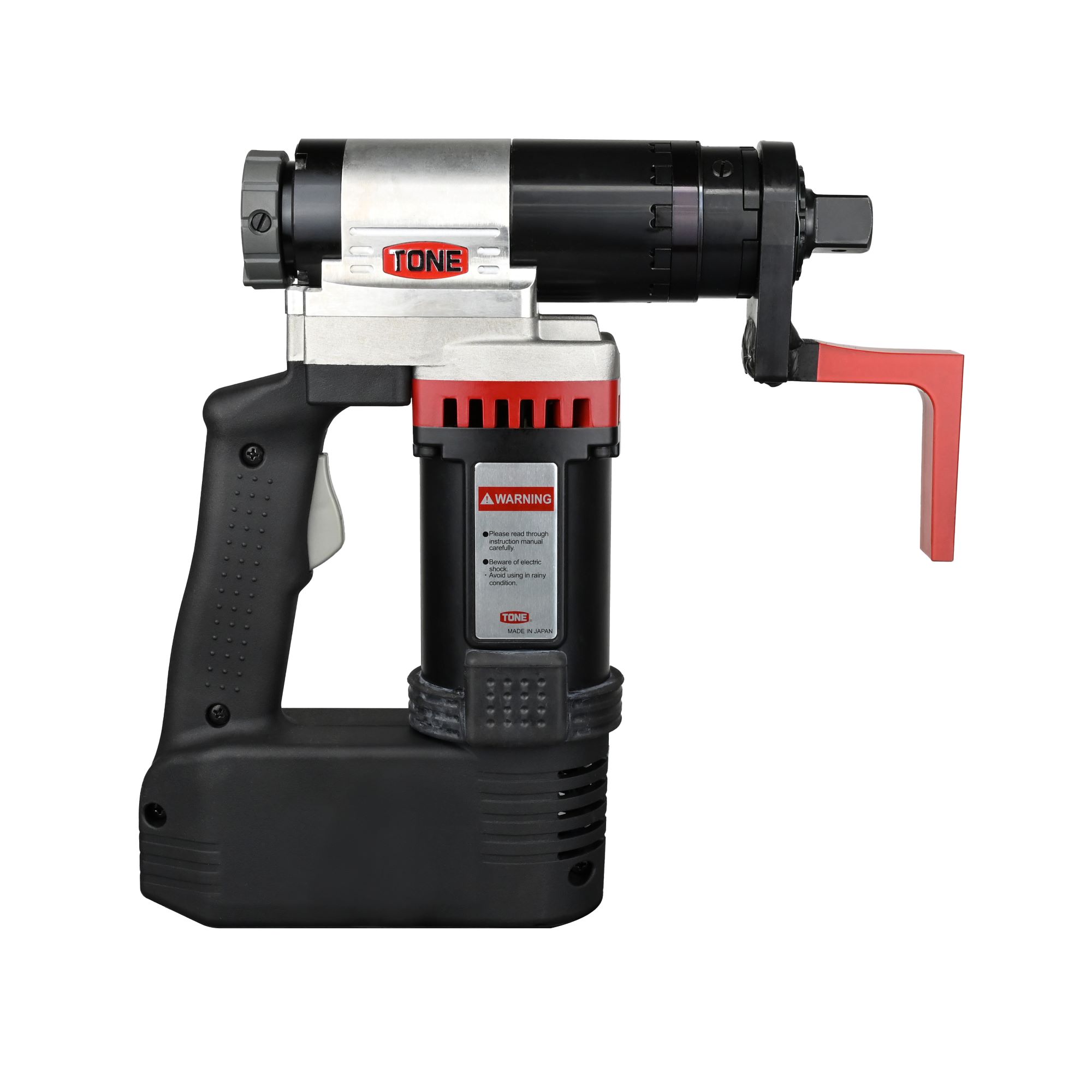

TONE GNR-31E Torque Wrench
State-of-the-art, high accuracy electric nut runner for torque-controlled installation. Powerful, compact, and lightweight.
| Fully Tensioned Structural Bolts:
A325 – 1/2″, 5/8” A325M – M14, M16 A490 – 1/2” A490M – M14 |
Adjustable Torque Range:
110-220 ft-lb. / 150-300 N-m
|
Specifications & Features
| Model | TONE GNR-31E | TONE GNR-32E |
| Voltage | 110-120 V | 220-230 V |
| Maximum Current | 10.5 A | 5.5 A |
| Maximum Power Consumption | 1,100 W | 1,100 W |
| Adjustable Torque Range | 110~220 ft-lb. | 150~300 N-m |
| No-Load Speed | 35 rpm | 35 rpm |
| Square Drive Size | 3/4″ drive | 3/4″ drive |
| Weight | 9.9 lb. | 4.5 kg |
- Repeated accuracy of ±5%
- Torque setting dial between 110~220 ft-lb.
- Clockwise and counterclockwise torque directions
- Colored LED indicator lights
- Double insulated for enhanced safety
Available Accessories
- X-Holder Extension 100mm (3-7/8″)
- Digital Torque Meter DTM5
- Impact Sockets
- Bar Sockets
