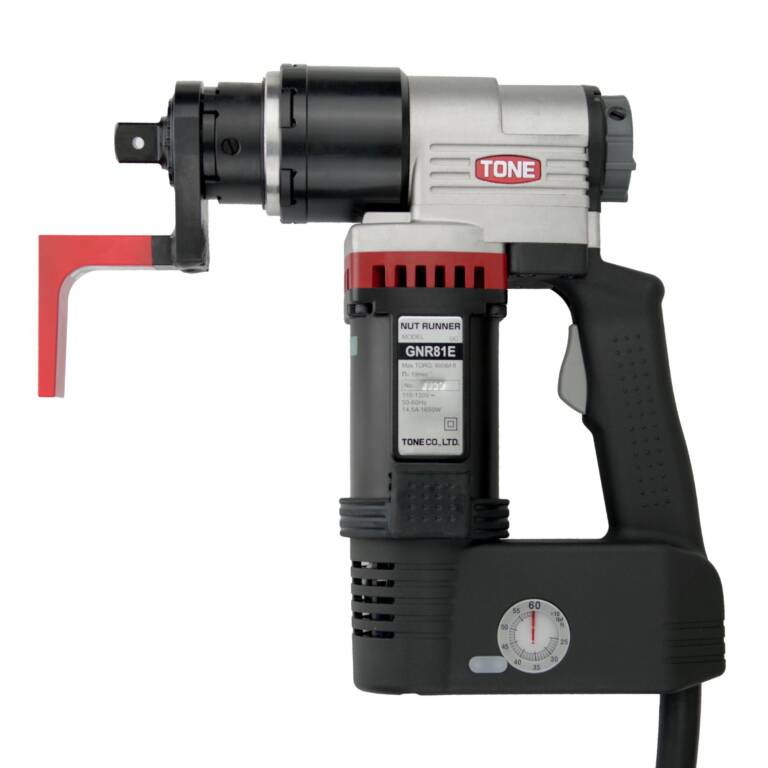

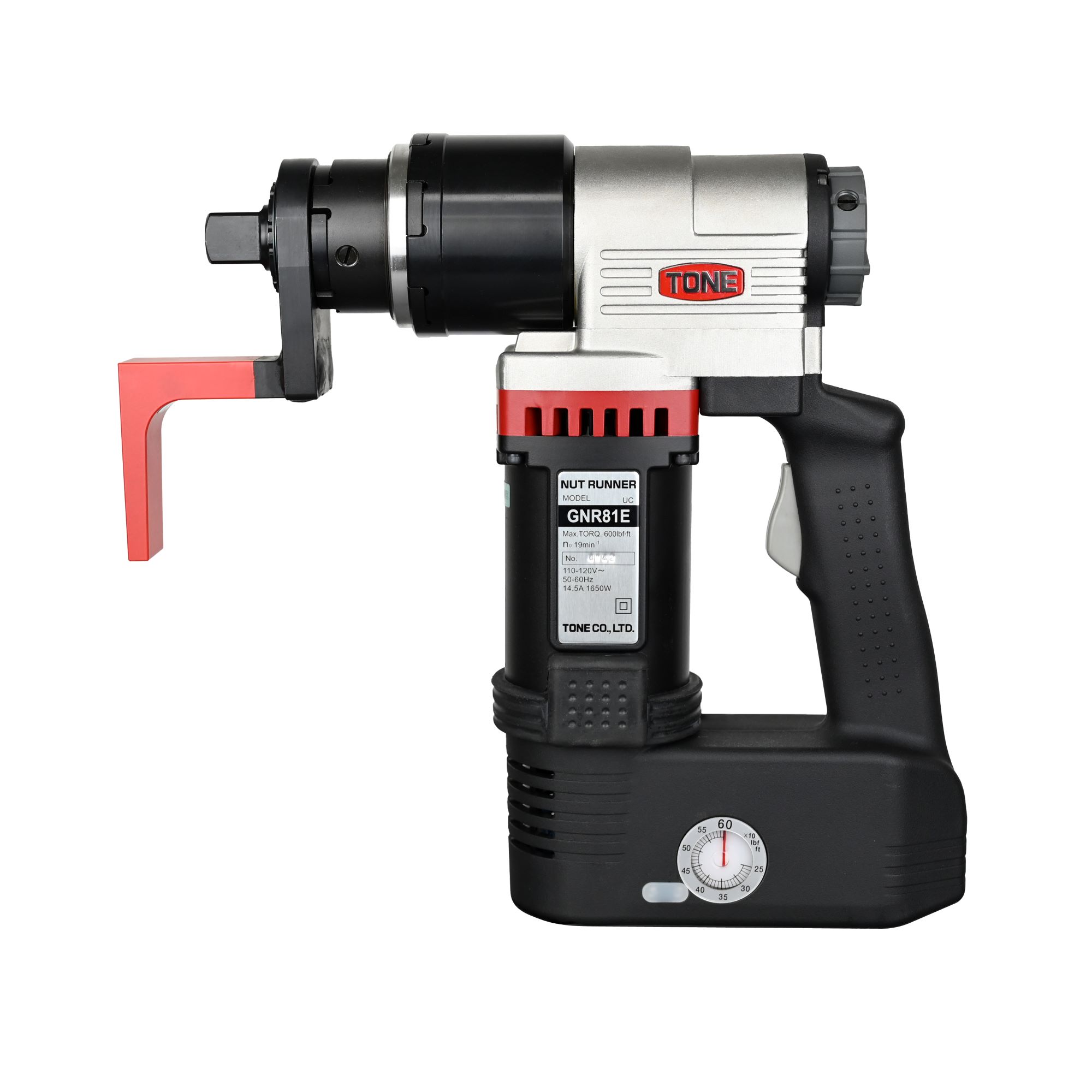

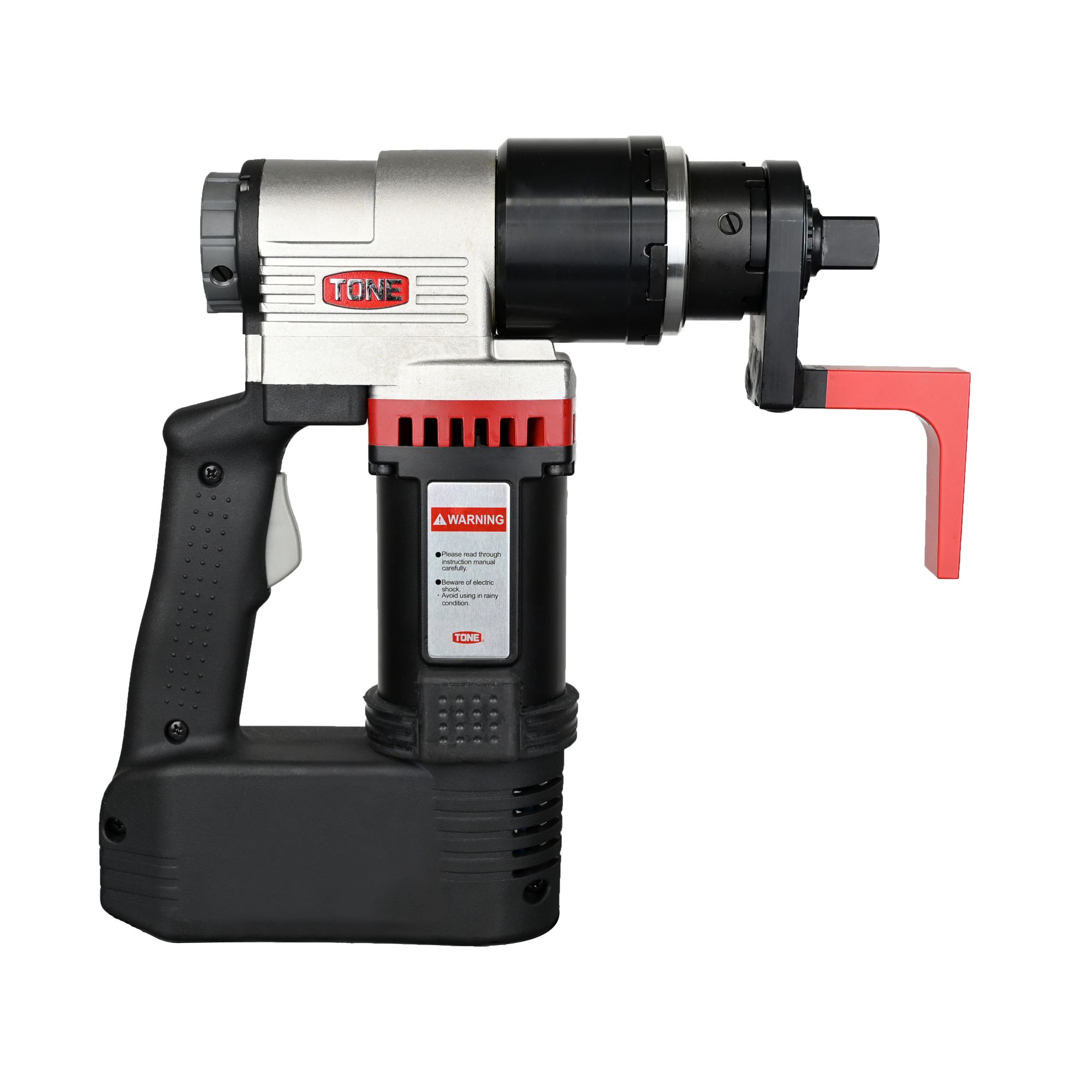

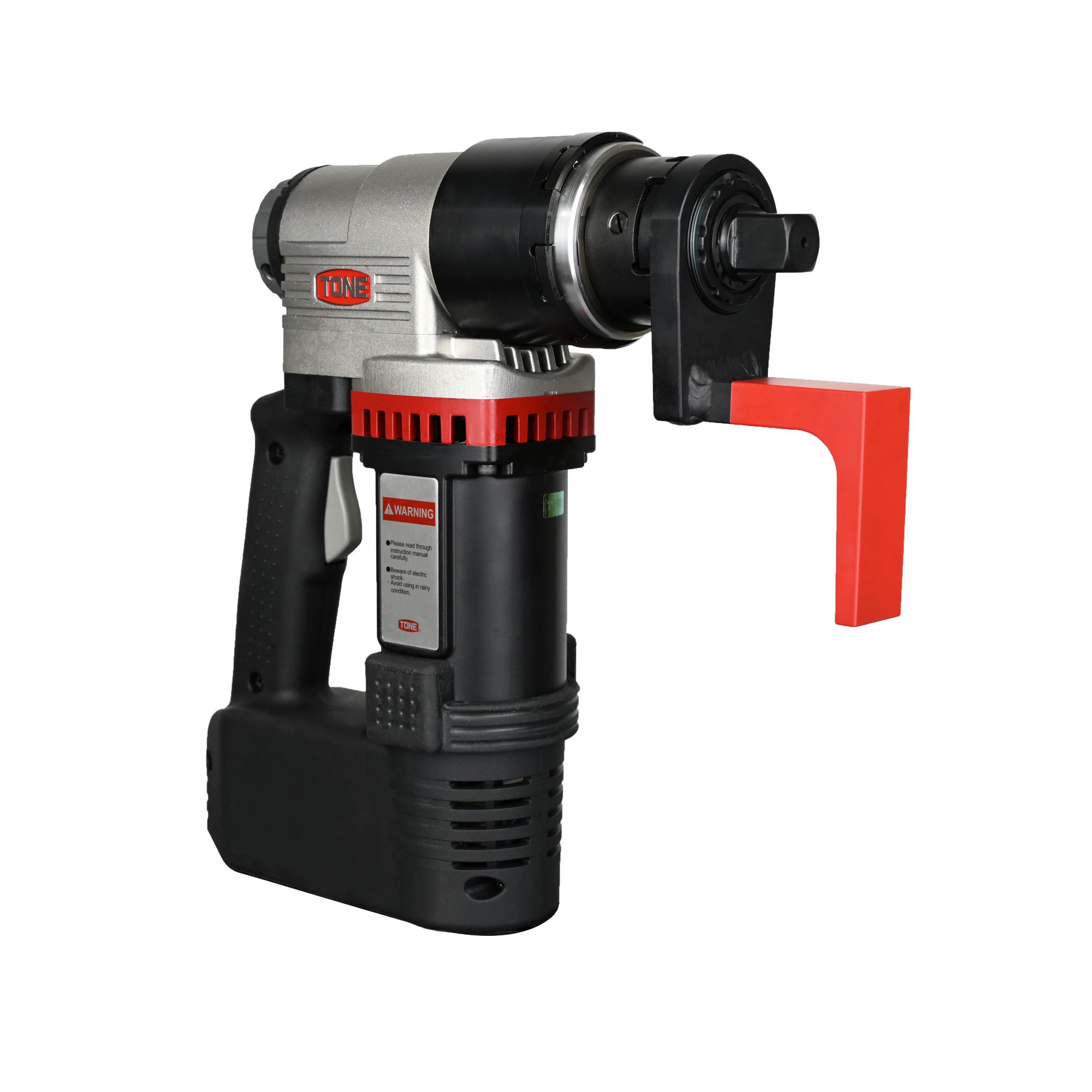

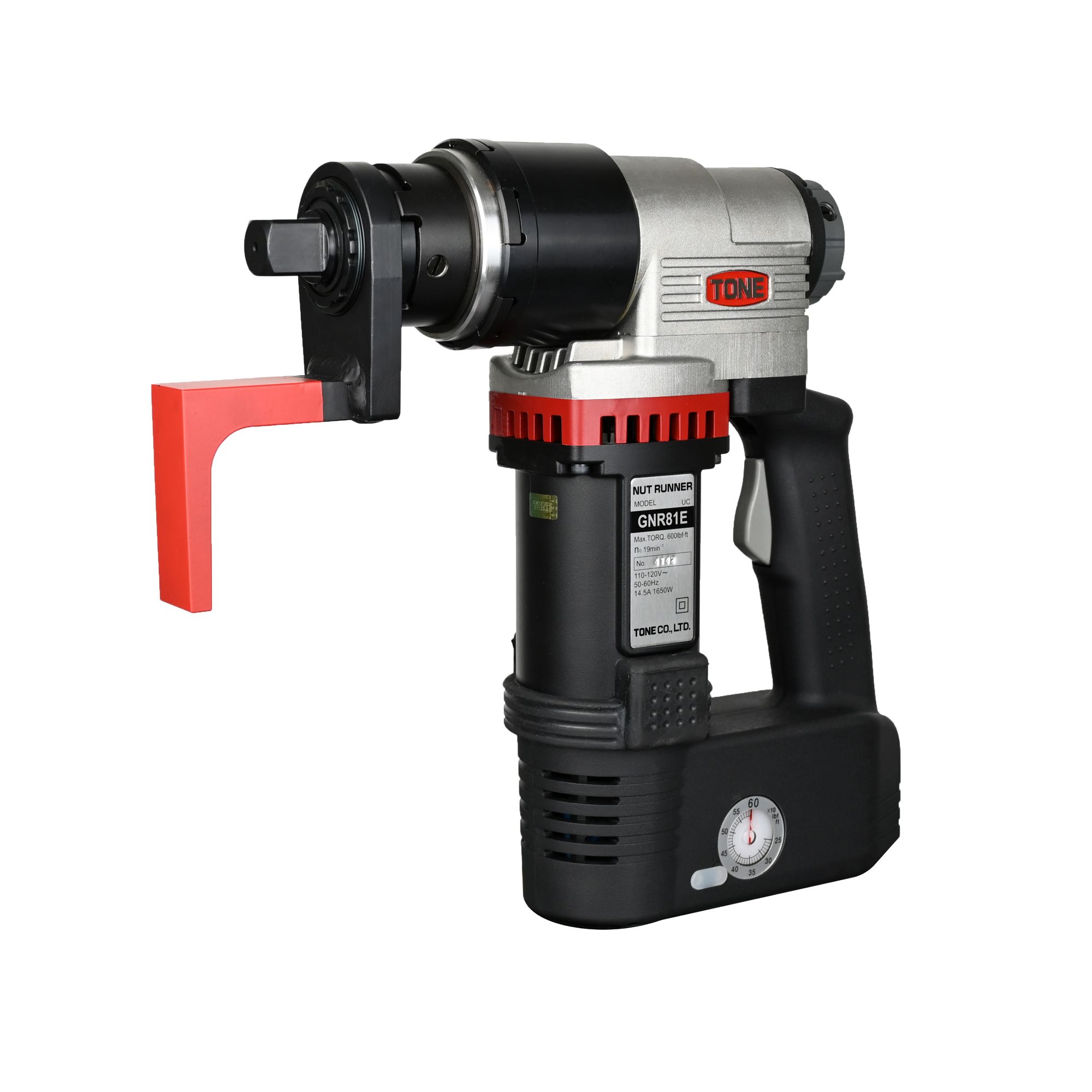

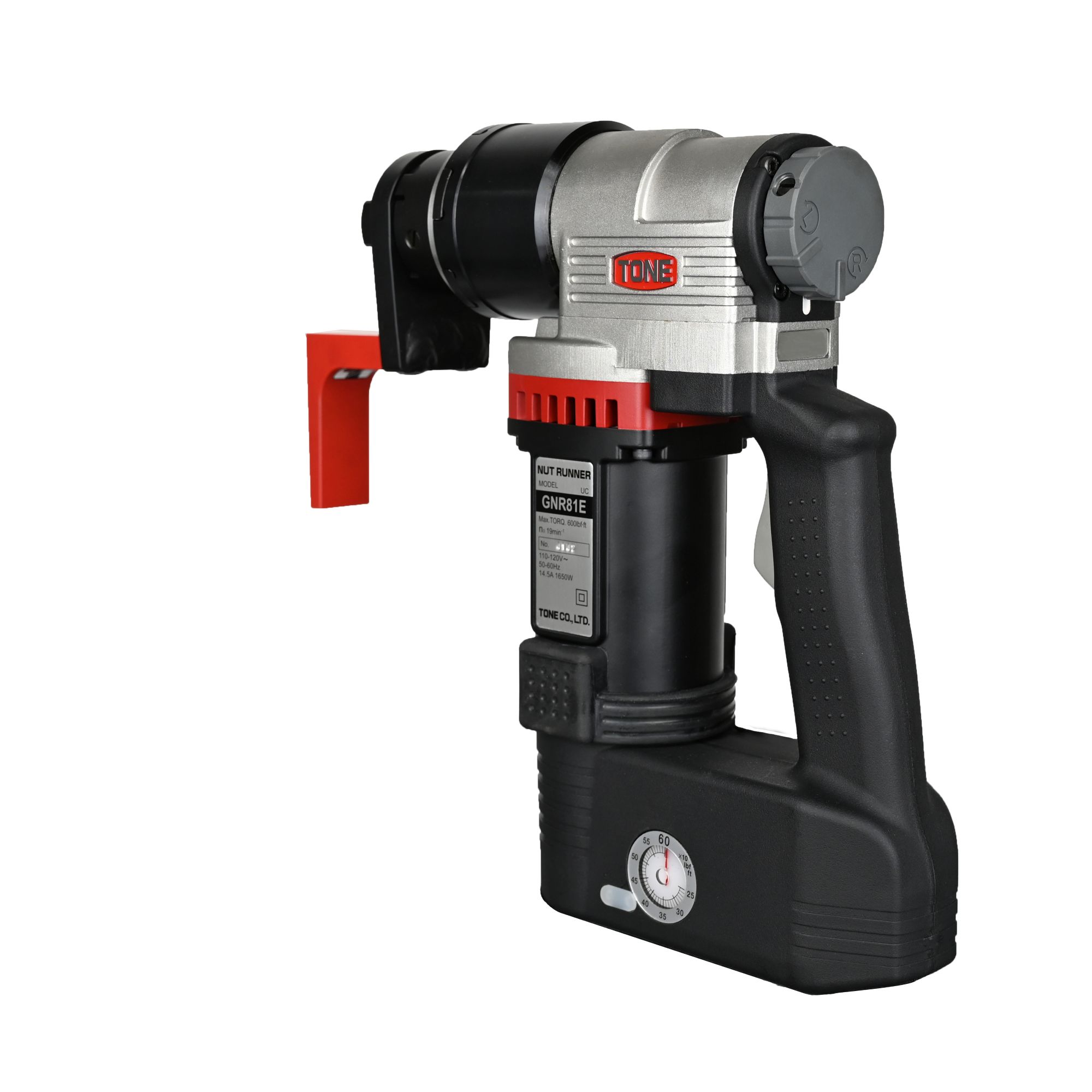

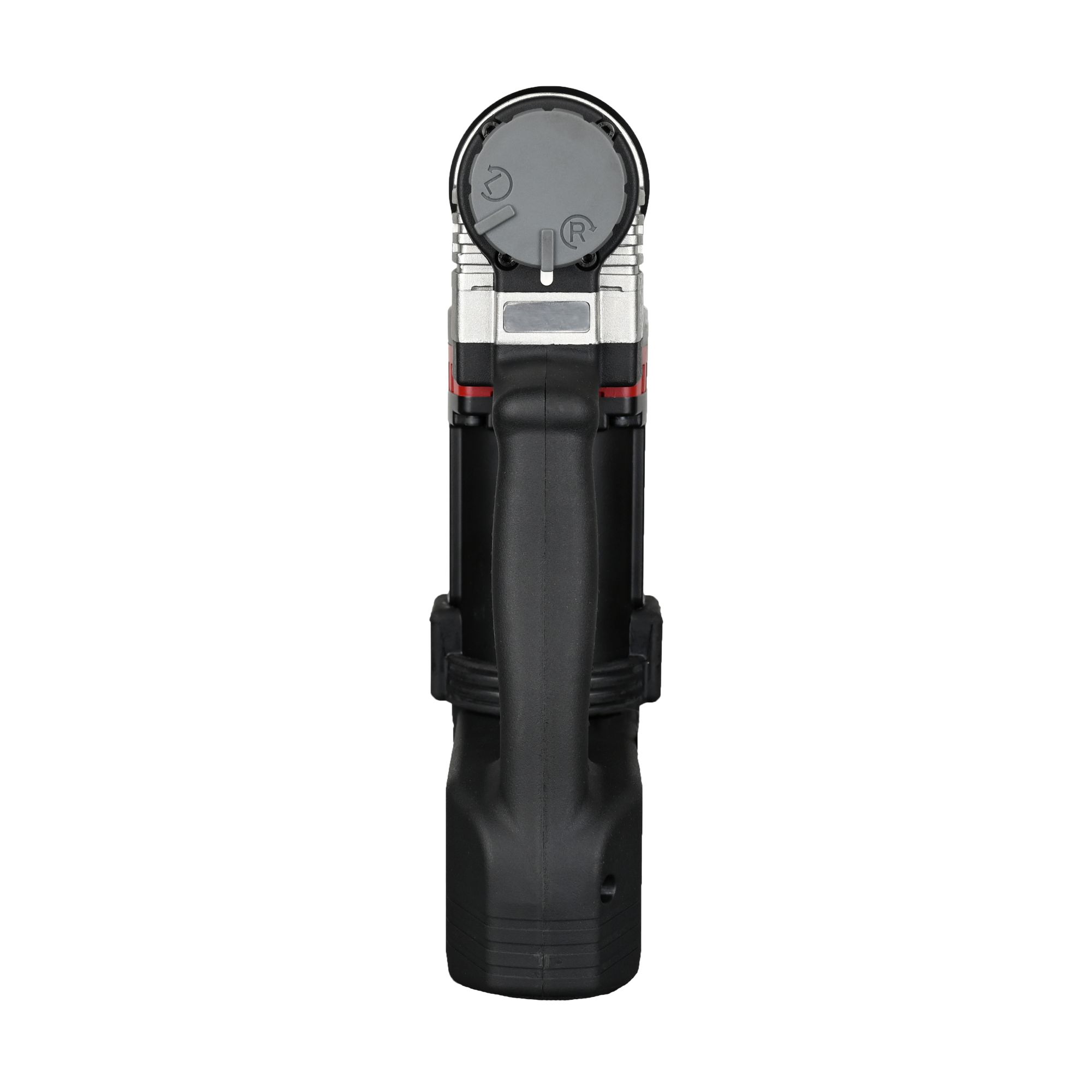

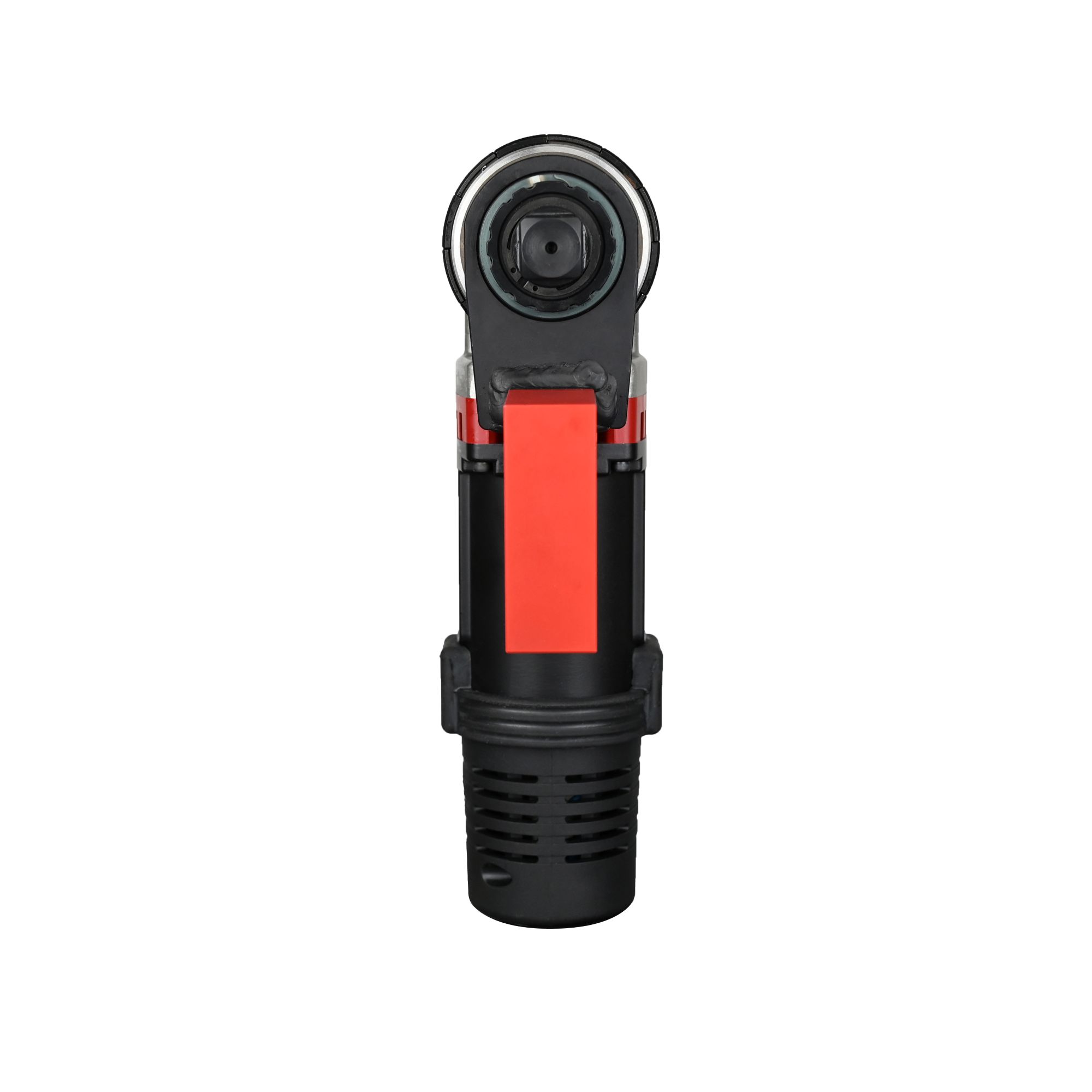

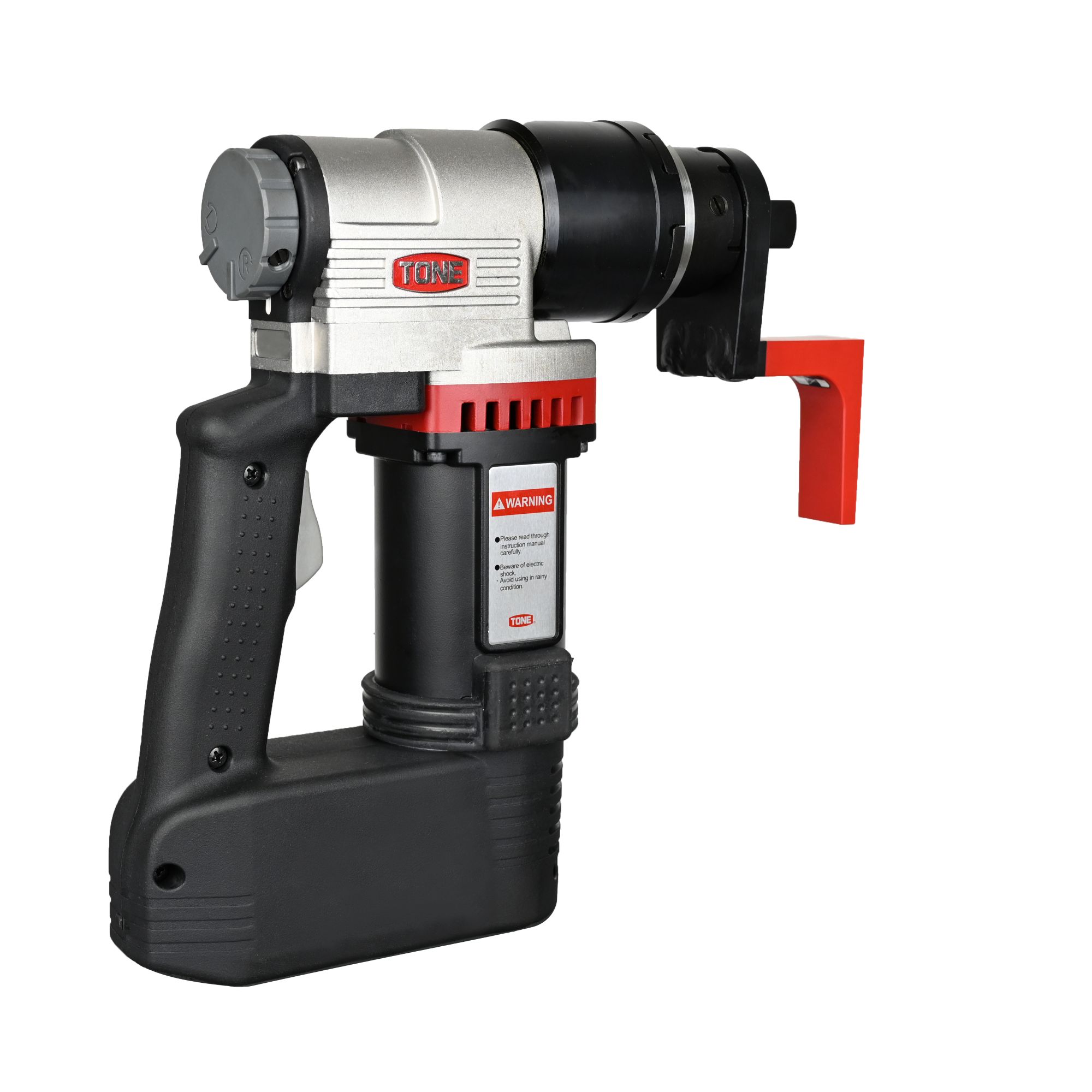

TONE GNR-81E Torque Wrench
State-of-the-art, high accuracy electric nut runner for torque-controlled installation. Powerful, compact, and lightweight.
| Fully Tensioned Structural Bolts:
A325 – 5/8″, 3/4″, 7/8″ A325M – M16, M20, M22 A490 – 5/8″, 3/4″ A490M – M16, M20 |
Adjustable Torque Range:
250–600 ft-lb. (340–800 N-m)
|
Specifications & Features
| Model | TONE GNR-81E | TONE GNR-82E |
| Voltage | 110-120 V | 220-230 V |
| Maximum Current | 14.5 A | 7.5 A |
| Maximum Power Consumption | 1,650 W | 1,650 W |
| Adjustable Torque Range | 250~600 ft-lb. | 340~800 N-m |
| No-load Speed | 19 rpm | 19 rpm |
| Square Drive Size | 3/4″ drive | 3/4″ drive |
| Weight | 11.9 lb. | 5.4 kg |
- Repeated accuracy of ±5%
- Torque setting dial between 250~600 ft-lb.
- Clockwise and counterclockwise torque directions
- Colored LED indicator lights
- Double insulated for enhanced safety
Available Accessories
- X-Holder Extension 100mm (3-7/8″)
- Digital Torque Meter DTM8
- Impact Sockets
- Bar Sockets
