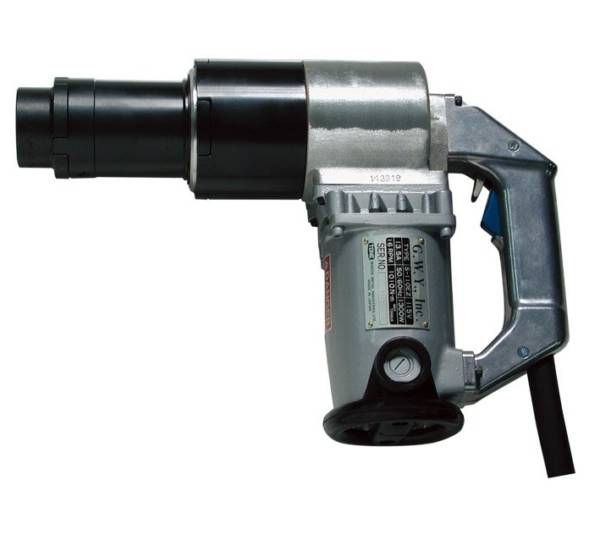

TONE S-110EZ Electric Shear Wrench
The TONE S-110EZ shear wrench is a discontinued model that is versatile and compatible with a wide range of bolt diameters. A comparable model to the S-110EZ is the GS-111EZ.
| Fully Tensioned Structural Bolts | Maximum Torque |
| A325 – 3/4″, 7/8″, 1″, 1-1/8″ | 745 ft-lb. (1,010 N-m) |
| A325M – M20, M22, M24 | |
| A490 – 3/4″, 7/8″, 1″ | |
| A490M – M20, M22, M24 |
Want to talk to a specialist now?
(888) 838 6500
Business Hours: 8am - 5pm Est
Specifications
| Model | TONE S-110EZ |
| Voltage | 115 V |
| Maximum Current | 13.5 A |
| Rated Power | 1,300 W |
| Frequency | 50-60 Hz |
| Maximum Torque | 745 ft-lb. |
| No-load Speed | 16 rpm |
| Weight | 22.7 lb. |
TONE S-110EZ TC Bolt Wrench Parts
| Part # | Description | Qty |
| 1 | SOCKET ASS’Y | 1 |
| 1-A | OUTER SOCKET | 1 |
| 1-B | INNER SOCKET | 1 |
| 2 | EJECTOR PIN | 1 |
| 3 | EJECTOR SPRING | 1 |
| 4 | INNER SOCKET SPRING | 1 |
| 5 | SPIROLOX FRS-72 | 1 |
| 6 | SPIRO STOPPER | 1 |
| 7 | SPIROLOX FRR-88 | 1 |
| 8 | SET SCREW | 2 |
| 9 | OUTER SOCKET HOLDER | 1 |
| 10 | BUSH 62X87X3 | 1 |
| 11 | INNER SOCKET HOLDER ASS’Y | 1 |
| 12 | HSH REAMER BOLT | 3 |
| 13 | 3RD SPIDER ASS’Y | 1 |
| 14 | STEEL BALL 5/16″” | 32 |
| 15 | INTERNAL GEAR | 1 |
| 16 | BUSH 83X94X5 | 1 |
| 17 | 3RD GEAR PIN | 3 |
| 18 | 3RD PINION GEAR | 1 |
| 19 | GEAR CASE | 1 |
| 20 | 3RD IDLE GEAR | 3 |
| 21 | NEEDLE CAGE KT131816 (6PCS + 3PCS) | 9 |
| 22 | STEPPED BUSH 28X45X11 | 1 |
| 23 | 2ND IDLE GEAR ASS’Y | 1 |
| 24 | 2ND GEAR PIN | 3 |
| 25 | 2ND CAGE | 1 |
| 26 | 2ND IDLE GEAR | 3 |
| 27 | 2ND PINION GEAR | 1 |
| 28 | BUSH 21.5X60X2 | 1 |
| 29 | 1ST IDLE GEAR ASS’Y | 1 |
| 30 | 1ST GEAR PIN | 3 |
| 31 | 1ST CAGE | 1 |
| 32 | METAL SLEEVE 699 | 3 |
| 33 | 1ST IDLE GEAR | 3 |
| 34 | FRICTION DISK | 1 |
| 35 | SPIROLOX RR-325 | 1 |
| 36 | SPIRO WASHER | 1 |
| 37 | METAL SLEEVE NTB2542 | 1 |
| 38 | THRUST WASHER AS2542 | 1 |
| 39 | FLANGE | 1 |
| 40 | HSH BOLT M4X10 | 6 |
| 41 | 1ST PINION GEAR | 1 |
| 42 | WOODRUFF KEY A-3X10 | 3 |
| 43 | RETAINING RING C-TYPE DIA 12 | 3 |
| 44 | METAL SLEEVE 6001 | 3 |
| 45 | BEVEL GEAR | 1 |
| 46 | HOUSING | 1 |
| 47 | HSH BOLT M5X25 | 4 |
| 48 | EJECTOR BRACKET | 1 |
| 49 | LATCH | 1 |
| 50 | LATCH GUIDE | 1 |
| 51 | LATCH SPRING | 1 |
| 52 | CRPH SCREW M4X20 | 2 |
| 53 | HSH BOLT M5X20 | 2 |
| 54 | PINION BEVEL GEAR | 1 |
| 55 | RETAINING RING C-TYPE DIA 28 | 1 |
| 56 | BUSH 12X18X3 | 1 |
| 57 | MOTOR GEAR | 1 |
| 58 | RETAINING RING C-TYPE DIA 10 | 1 |
| 59 | MOTOR PINION | 1 |
| 60 | HSH BOLT M5X16 | 6 |
| 61A | MOTOR ASS’Y 115V | 1 |
| 61B | MOTOR ASS’Y 220V | 1 |
| 62A | METAL SLEEVE BRACKET ASS’Y 115V | 1 |
| 62B | METAL SLEEVE BRACKET ASS’Y 220V | 1 |
| 63 | METAL SLEEVE 6200ZZ | 1 |
| 64A | ARMATURE 115V | 1 |
| 64B | ARMATURE 220V | 1 |
| 65 | METAL SLEEVE 608ZZ | 1 |
| 66A | STATOR 115V | 1 |
| 66B | STATOR 220V | 1 |
| 67 | CRPH SCREW M5X55 W/H WASHER | 2 |
| 68 | INSULATING WASHER | 2 |
| 69A | STATOR SPIDER ASS’Y 115V | 1 |
| 69B | STATOR SPIDER ASS’Y 220V | 1 |
| 70 | BRUSH CAP | 2 |
| 71 | CARBON BRUSH | 2 |
| 72 | HSH BOLT M5X25 W/H WASHER | 4 |
| 73 | RIVET 0X4.8MM | 4 |
| 74A | RATING PLATE 115V | 1 |
| 74B | RATING PLATE 220V | 1 |
| 75 | WARNING LABEL | 1 |
| 76 | CUSHION RUBBER | 1 |
| 77 | WASHER DIA 12 | 1 |
| 78 | CRPH SCREW M5X10 | 2 |
| 79 | GRIP WITH SPRING PIN | 1 |
| 80 | EJECTOR LEVER | 1 |
| 82 | CRPH SCREW M4X6 W/H WASHER | 5 |
| 83 | INSULATED CONNECTOR 5.5-SD | 1 |
| 84 | CORD CLAMP | 2 |
| 85 | THWWTH WASHER M4 | 2 |
| 86 | CRPH SCREW M4X14 | 2 |
| 87 | CORD ARMOUR | 1 |
| 88 | CORD ARMOUR WASHER | 1 |
| 89 | CRFH SCREW M4X30 | 2 |
| 90 | GRIP COVER | 1 |
| 91 | CONDENSER PAB 104 | 1 |
| 93A | CORD ASS’Y 115V | 1 |
| 93B | CORD ASS’Y 220V | 1 |
| 94 | PLUG 220V | 1 |
| 95 | SCREWDRIVER | 1 |
| 96 | METAL CASE | 1 |
| 98 | CONNECTOR 220V | 1 |
| 200 | TRIGGER SWITCH F-20-5A | 1 |
Parts not listed are part of an assembly and are not available separately.
