Norbar Industrial Torque Wrench
Compactable, robust, easy to use, and ideal for heavy duty applications.
The Norbar Industrial Series Adjustable Torque Wrenches are available in 3/4″ and 1″ square drives with a torque range of 100-1500 ft-lb. Designed for accuracy and convenience with a dual setting scale, new handle, and removable square drive.
- Easy to read scale is shielded from dust, dirt and spray
- Unique profiled cam and reaction plate – gives much clearer ‘torque break point’ reducing the possibility of over torquing
- Robust construction gives accurate results to ±4% even in arduous working conditions
- Easy to set accurately
- Can be split and packed in two parts for a smaller, easier to transport package
- Push-through square drive allows two direction torquing (not available for 6R-N models)
- Designed to be cost effectively serviced
- New handle – more comfortable and guides operator’s hand to correct position
- Supplied with a Declaration of Conformance, which meets the requirements of ISO 6789-1:2017
Model Specifications

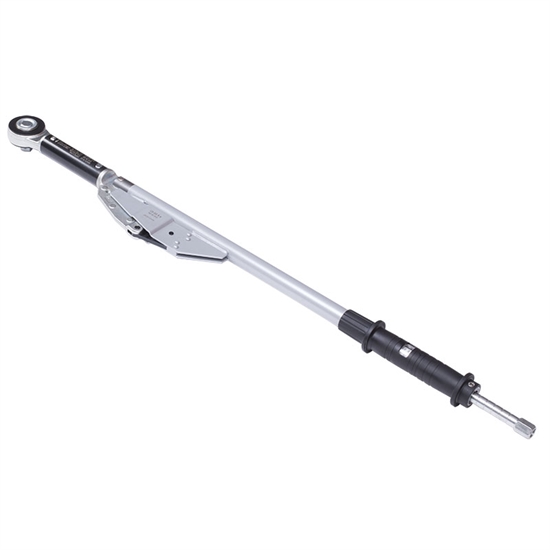

| Model | Norbar 3AR-N, 3/4″ | Norbar 3AR-N, 1″ |
| Min. Torque | 100 ft-lb. (120 N-m) | 100 ft-lb. (120 N-m) |
| Max. Torque | 450 ft-lb. (600 N-m) | 450 ft-lb. (600 N-m) |
| Increments | 10 ft-lb. (10 N-m) | 10 ft-lb. (10 N-m) |
| Square Drive | 3/4″ (19.05mm) | 1″ (25.4mm) |
| Tool Weight | 14.6 lb. (6.6 kg) | 14.6 lb. (6.6 kg) |
| Model | Norbar 4AR-N, 3/4″ | Norbar 4AR-N, 1″ |
| Min. Torque | 150 ft-lb. (200 N-m) | 150 ft-lb. (200 N-m) |
| Max. Torque | 600 ft-lb. (800 N-m) | 600 ft-lb. (800 N-m) |
| Increments | 10 ft-lb. (10 N-m) | 10 ft-lb. (10 N-m) |
| Square Drive | 3/4″ (19.05mm) | 1″ (25.4mm) |
| Tool Weight | 16.1 lb. (7.3 kg) | 16.1 lb. (7.3 kg) |
| Model | Norbar 5R-N, 3/4″ | Norbar 5R-N, 1″ |
| Min. Torque | 200 ft-lb. (300 N-m) | 200 ft-lb. (300 N-m) |
| Max. Torque | 750 ft-lb. (1000 N-m) | 750 ft-lb. (1000 N-m) |
| Increments | 10 ft-lb. (20 N-m) | 10 ft-lb. (20 N-m) |
| Square Drive | 3/4″ (19.05mm) | 1″ (25.4mm) |
| Tool Weight | 17.4 lb. (7.9 kg) | 17.4 lb. (7.9 kg) |

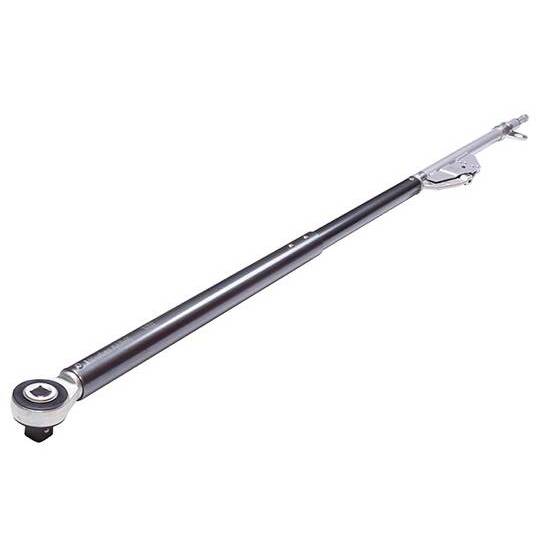

| Model | Norbar 5AR-N, 3/4″ | Norbar 5AR-N, 1″ |
| Min. Torque | 500 ft-lb. (700 N-m) | 500 ft-lb. (700 N-m) |
| Max. Torque | 1000 ft-lb. (1500 N-m) | 1000 ft-lb. (1500 N-m) |
| Increments | 10 ft-lb. (10 N-m) | 10 ft-lb. (10 N-m) |
| Square Drive | 3/4″ (19.05mm) | 1″ (25.4mm) |
| Tool Weight | 21.2 lb. (9.6 kg) | 21.2 lb. (9.6 kg) |
| Model | Norbar 6R-N, 1″ |
| Min. Torque | 750 ft-lb. (900 N-m) |
| Max. Torque | 1500 ft-lb. (2000 N-m) |
| Square Drive | 1″ (25.4mm) |
| Tool Weight | 28.1 lb. (12.75 kg) |
