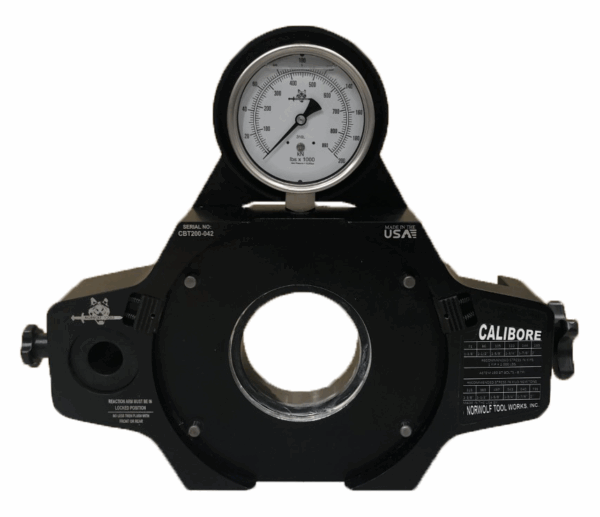

Norwolf Calibore 200
The Norwolf Calibore Bolt Tension Calibrator is the lightest, most compact and versatile in the industry. This all-in-one solution doesn’t require any additional tools to assemble so you can get right to work.
The Calibore 200 has a bolt tension capacity of 200,000 lb.
Calibrator Features & Benefits
- “Snap-In” front plate & hex bushing
- Built in adjustable reaction bar
- Gauge reads in both pounds and kilo newtons
- Solid, heavy duty gauge protector
- Solid milled clamp that secures at points for beam mounting
- Drilled holes provided for base/ table mounting
- Fitted, wheeled carrying case
- Light weight- 30 lb. (compared to competitors at 45 lb.)
- Available in 350K and 1,000K
Capacity: 200,000 lb. of Bolt Tension
Specifications
| CBT 200 | Minimum Bolt Length |
|---|---|
| Bolt Diameter | Bolt Length |
| 1-3/8″ | 3-1/8″ |
| 1-1/2″ | 3-1/4″ |
| 1-5/8″ | 3-3/8″ |
| 1-3/4″ | 3-1/2″ |
| 1-7/8″ | 4-3/8″ |

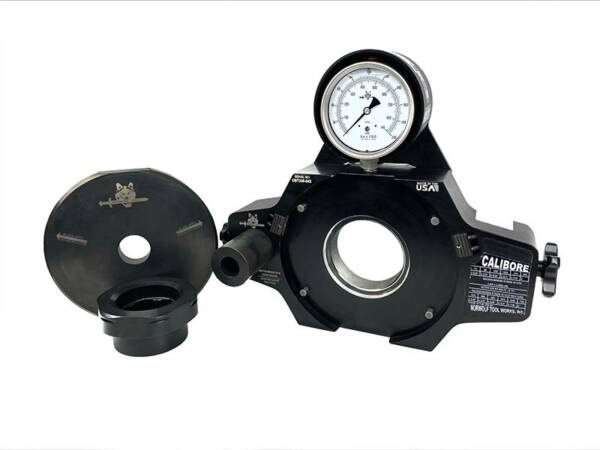

The Calibore 200 can be used with our adapter kits to test the following bolts sizes:
| Imperial | Metric |
| 1 – 3/8″ | M33 |
| 1 – 1/2″ | M36 |
| 1 – 5/8″ | M39 |
| 1 – 3/4″ | M42 |
| 1 – 7/8″ | M45 |
