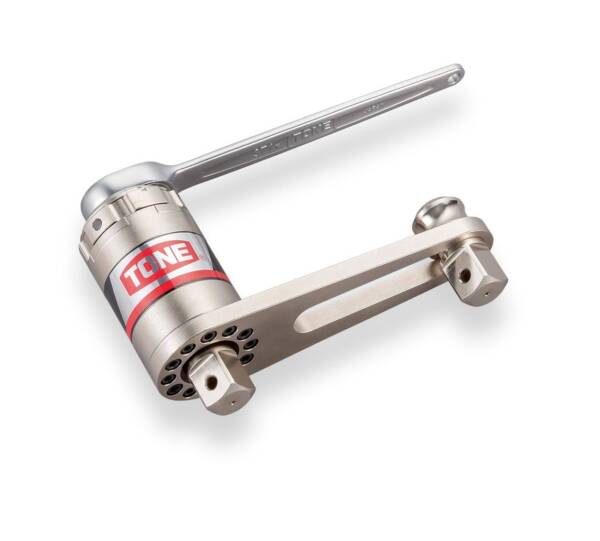

TONE P150A Manual Torque Multiplier
The P150A is our compact torque multiplier with a 23x magnification ratio and a maximum torque output of 1,100 ft-lb.
High torque output by hand
- Tightens bolts with minimal effort even in confined spaces
- Installation torque is absorbed by reaction arm, not the worker
- ±5% repeated tightening accuracy
- Clockwise and counterclockwise directions
Specifications
| Model | TONE P150A (with included ratchet wrench) |
| Output Torque Range | 220-1,100 ft-lb. (300-1,500 N-m) |
| Input Torque Range | 10-45 ft-lb. (13-61 N-m) |
| Output Square Drive | 1″ (25.4mm) |
| Input Square Drive | 1/2″ (12.7mm) |
| Magnification* | 23.0 |
| Gear Ratio | 25.0 |
| Weight** | 10.2 lb. (4.6 kg) |
| Shipping Weight | 18 lb. (8.2 kg) |
With Manual Torque Wrench (sold separately):
| Model | Torque Wrench | Output Torque | Input Torque | Weight** |
| P150AT | T4MF75 | 345-1,100 ft-lb. | 15-50 ft-lb. | 10.8 lb. (4.9 kg) |
| T4MN100 | 460-1,500 N-m | 20-65 N-m |
*Actual magnification may vary depending on condition
**Total weight of the torque multiplier, side-type reaction arm, and ratchet wrench
Documents
Helpful resources:
Dimensioned Drawing
Instructional Manual
Torque Catalog
