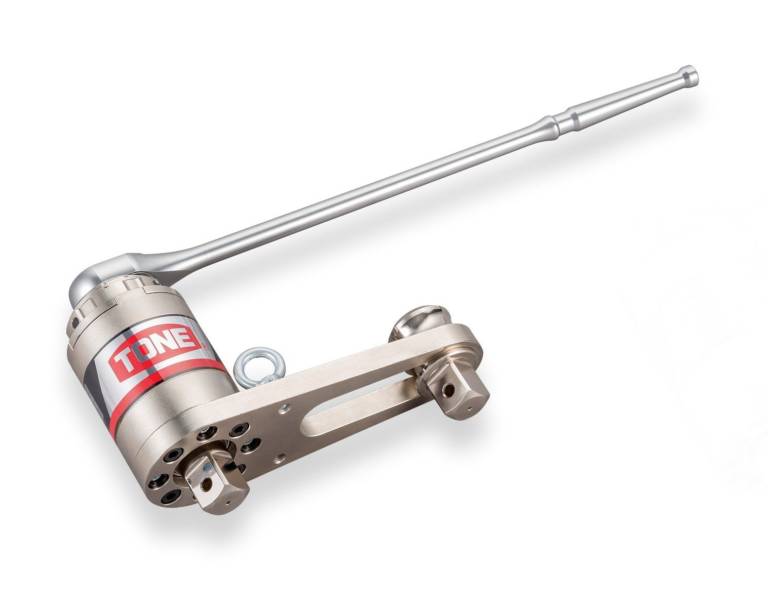

TONE P300A Manual Torque Multiplier
The P300A is our mid-range torque multiplier with a magnification ratio of 16.7x and a maximum torque output of 2,200 ft-lb.
High torque output by hand
- Tightens bolts with minimal effort even in confined spaces
- Installation torque is absorbed by reaction arm, not the worker
- ±5% repeated tightening accuracy
- Clockwise and counterclockwise directions
Specifications
| Model | TONE P300A (with included ratchet wrench) |
| Output Torque Range | 440-2,200 ft-lb. (600-3,000 N-m) |
| Input Torque Range | 25-130 ft-lb. (36-180 N-m) |
| Output Square Drive | 1″ (25.4mm) |
| Input Square Drive | 1/2″ (12.7mm) |
| Magnification* | 16.7 |
| Gear Ratio | 18.2 |
| Weight** | 15.7 lb. (7.1 kg) |
Pelican IM2700 Case is available to purchase in black with custom foam inserts.
With Manual Torque Wrench (sold separately):
| Model | Torque Wrench | Output Torque | Input Torque | Weight** |
| P300AT | T4MF150 | 501-2,200 ft-lb. | 44-130 ft-lb. | 17.4 lb. (7.9 kg) |
| T4MN300 | 1,002-3,000 N-m | 60-180 N-m |
*Actual magnification may vary depending on condition
**Total weight of the torque multiplier, side-type reaction arm, and ratchet wrench
