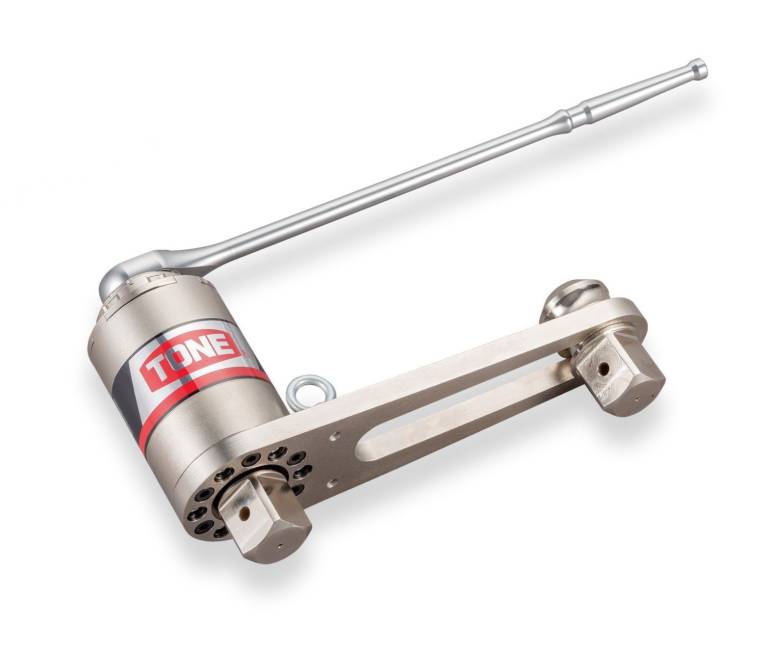

TONE P600A Manual Torque Multiplier
The P600A is our largest torque multiplier with a magnification ratio of 23.5x and a maximum torque output of 4,425 ft-lb.
High torque output by hand
- Tightens bolts with minimal effort even in confined spaces
- Installation torque is absorbed by reaction arm, not the worker
- ±5% repeated tightening accuracy
- Clockwise and counterclockwise directions
Specifications
| Model | TONE P600A (with included ratchet wrench) |
| Output Torque Range | 885-4,425 ft-lb. (1,200-6,000 N-m) |
| Input Torque Range | 35-190 ft-lb. (51-255 N-m) |
| Output Square Drive | 1-1/2″ (38.1mm) |
| Input Square Drive | 1/2″ (12.7mm) |
| Magnification* | 23.5 |
| Gear Ratio | 25.5 |
| Weight** | 25.8 lb. (11.7 kg) |
Pelican IM2700 Case is available to purchase in black with custom foam inserts.
With Manual Torque Wrench (sold separately):
| Model | Torque Wrench | Output Torque | Input Torque | Weight** |
| P600AT | T4MF250 | 1,040-4,425 ft-lb. | 45-190 ft-lb. | 27.6 lb. (12.5 kg) |
| T4MN300 | 1,410-6,000 N-m | 60-255 N-m |
*Actual magnification may vary depending on condition
**Total weight of the torque multiplier, side-type reaction arm, and ratchet wrench
Documents
Helpful resources:
Dimensioned Drawing
Instructional Manual
Torque Catalog
