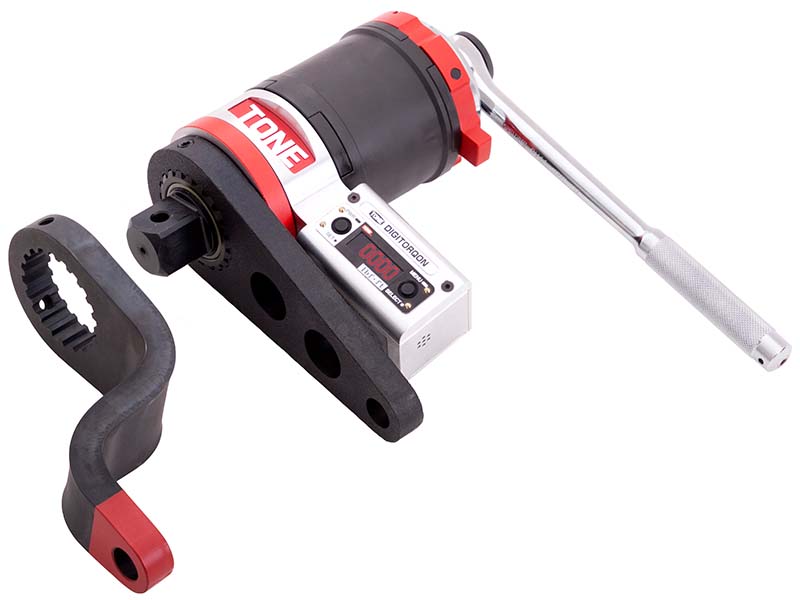

TONE PD-150EFA Digital Torque Multiplier
The PD-150EFA is our smallest digital torque multiplier with digital readout, a magnification ratio of 20.8x, and a maximum torque output of 1,100 ft-lb.
These tools are perfectly suited for both installation and inspection tasks. Tighten and
inspect fasteners with minimal effort, even in confined environments.
- Installation torque is absorbed by the reaction arm, not the worker
- Easy-to-read digital display
- Audible alert when preset torque is reached
- Save torque readings on microSD card and download to your PC
- ±4% tightening torque accuracy
- Clockwise and counterclockwise directions
Specifications
| Model | TONE PD150EFA |
| Torque Range | 220-1,100 ft-lb (300-1,500 N-m) |
| Output Square Drive | 1″ (25.4mm) |
| Input Square Drive | 1/2″ (12.7mm) |
| Body Weight | 9.9 lb. (4.5 kg) |
Pelican IM2400 Case is available to purchase in black with custom foam inserts.
