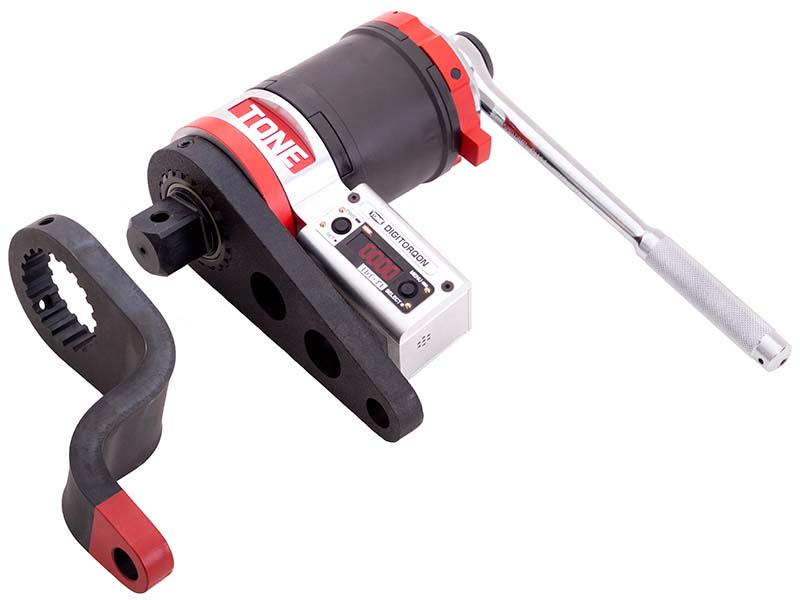

TONE PD-300EFA Digital Torque Multiplier
The PD-300EFA is our mid-range digital torque multiplier with digital readout, a magnification ratio of 14.5x, and a maximum torque output of 2,200 ft-lb.
These tools are perfectly suited for both installation and inspection tasks. Tighten and
inspect fasteners with minimal effort, even in confined environments.
- Installation torque is absorbed by the reaction arm, not the worker
- Easy-to-read digital display
- Audible alert when preset torque is reached
- Save torque readings on microSD card and download to your PC
- ±4% tightening torque accuracy
- Clockwise and counterclockwise directions
Specifications
| Model | TONE PD300EFA |
| Torque Range | 450-2,200 ft-lb. (600-3,000 N-m) |
| Output Square Drive | 1″ (25.4mm) |
| Input Square Drive | 3/4″ (19.0mm) |
| Body Weight | 13.7 lb. (6.2 kg) |
Pelican IM2700 Case is available to purchase in black with custom foam inserts.
Documents
Helpful resources:
Dimensioned Drawing
Instructional Manual
Torque Catalog
