S Series Square Drive Torque Wrench

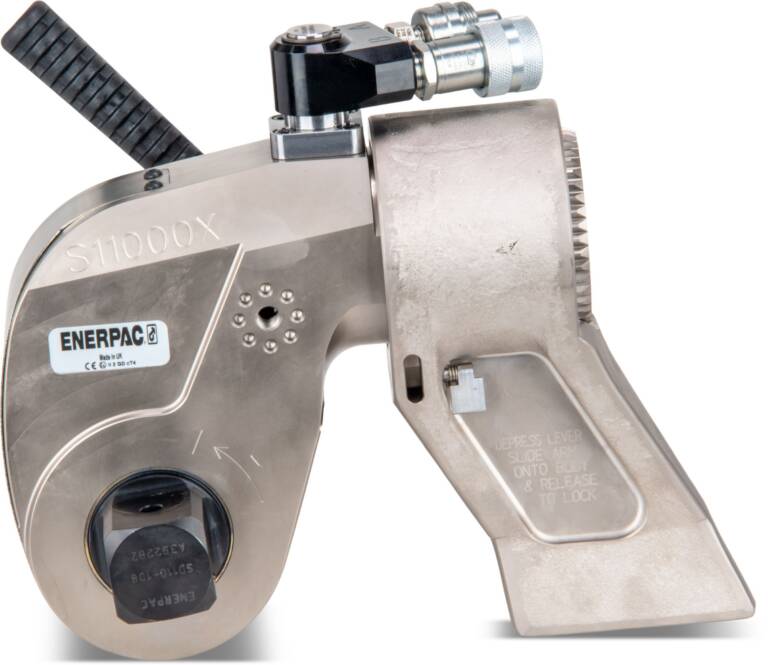

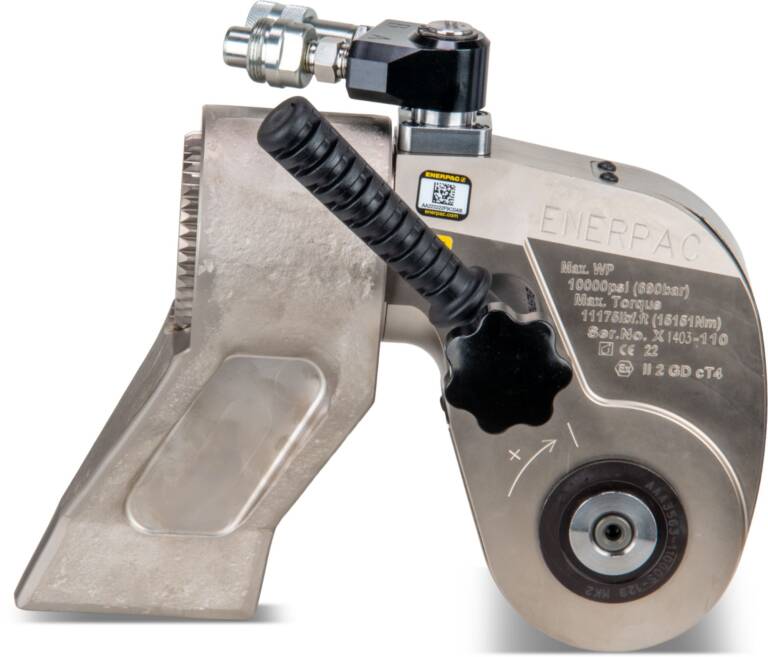

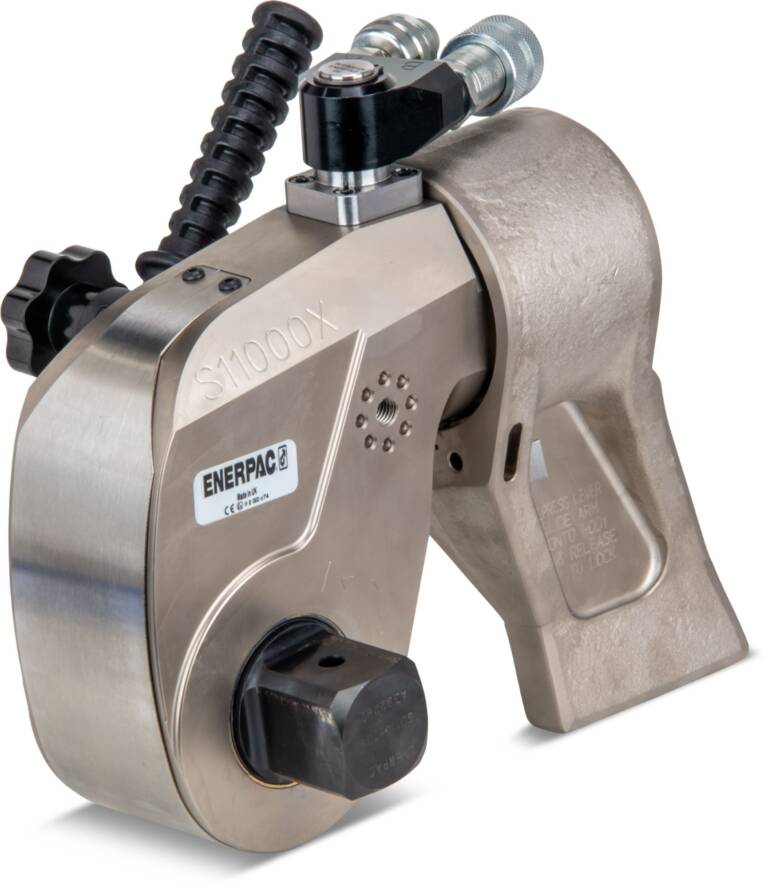

Enerpac S11000X Square Drive Wrench

The S11000X is a compact, high-strength steel square drive hydraulic torque wrench with a maximum torque output of 11,175 ft-lb. For use with 1-1/2″ square drive sockets.

Talk to a Specialist
Want to talk to a specialist now?
(888) 838 6500
Business Hours: 8am - 5pm Est

Specifications

Model ENERPAC S11000X
Square Drive 1-1/2″
Nominal Torque Rated At 10,000 psi (690 bar)
Maximum Torque Output 11,175 ft-lb. (15,151 N-m)
Minimum Torque Rated At 1000 psi (69 bar)
Minimum Torque  1,118 ft-lb. (1,516 N-m)
Weight 34.7 lb.
  • Compact, high strength unibody construction provides a small operating radius without sacrificing endurance
  • 35° rotation angle and rapid return stroke for fast operation
  • Tough manifold design with added safety feature for enhanced operator safety
  • 360° click-on reaction arm with quick release lever provides easier handling, even when wearing gloves
  • Includes robust handle which mounts on both sides of tool for extra maneuverability
  • Push button square drive release for quickly reversing the square drive for tightening or loosening
  • Constant torque output provides accuracy of +/-3% across full stroke
  • Optional Angle-of-Turn Indicator provides measurement of rotation

Documents

Helpful resources:

S11000 Dimensioned Drawing

Instruction Manual

Specifications
