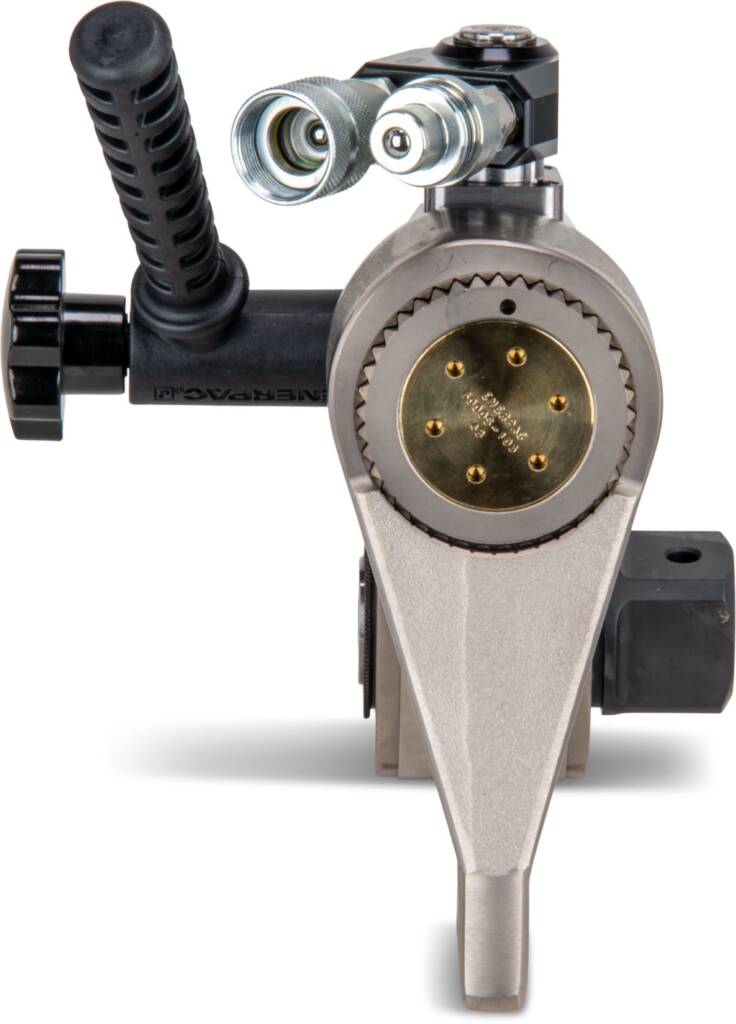

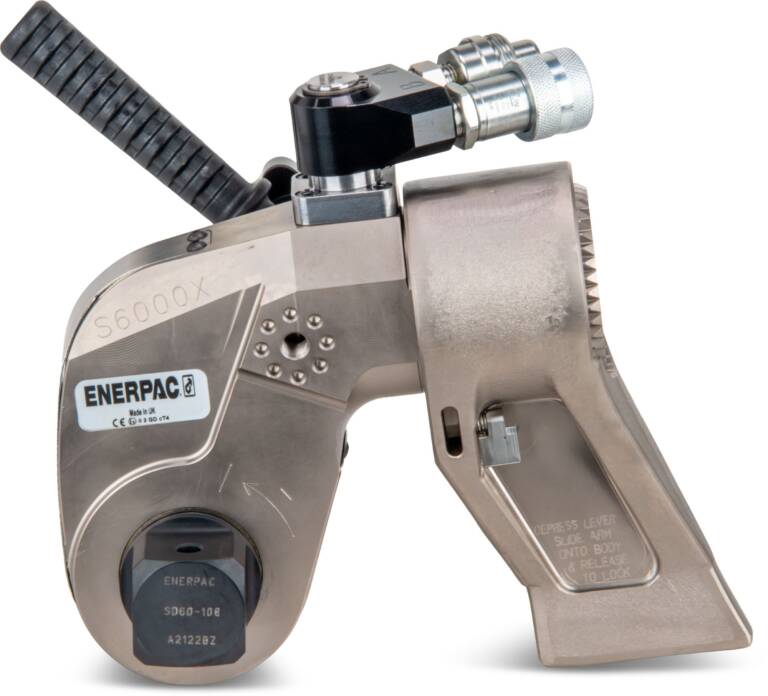

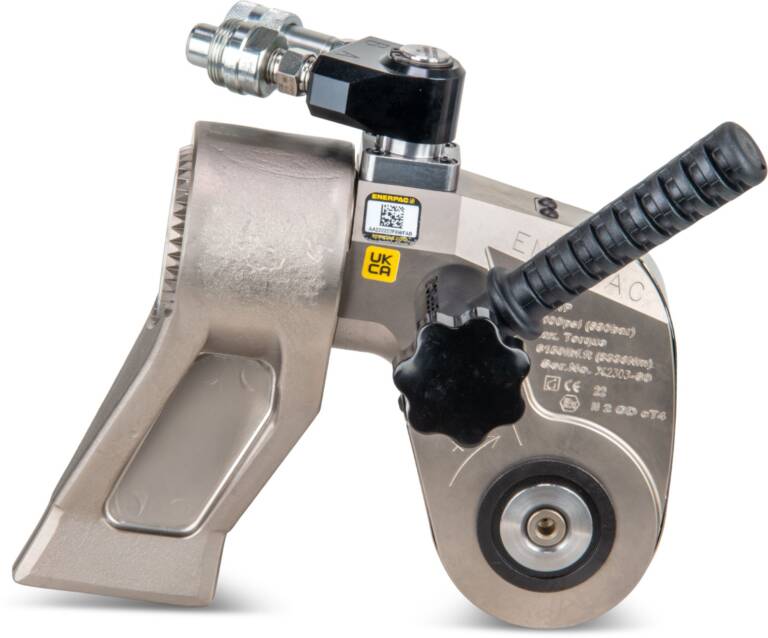

Enerpac S6000PX Pro Series Swivel Square Drive Wrench
The S6000PX is a compact, high-strength steel square drive hydraulic torque wrench with a maximum torque output of 6,150 ft-lb. For use with 1-1/2″ square drive sockets. The Pro Series Swivel features tilt and swivel technology providing 360° X-axis rotation and 160° Y-axis rotation.
Specifications
| Model | ENERPAC S6000PX |
| Square Drive | 1-1/2″ |
| Nominal Torque Rated At | 10,000 psi (690 bar) |
| Maximum Torque Output | 6,150 ft-lb. (8,338 N-m) |
| Minimum Torque Rated At | 1000 psi (69 bar) |
| Minimum Torque | 615 ft-lb. (834 N-m) |
| Weight | 20.2 lb. |
- Compact, high strength unibody construction provides a small operating radius without sacrificing endurance
- 35° rotation angle and rapid return stroke for fast operation
- Tough manifold design with added safety feature for enhanced operator safety
- 360° click-on reaction arm with quick release lever provides easier handling, even when wearing gloves
- Includes robust handle which mounts on both sides of tool for extra maneuverability
- Push button square drive release for quickly reversing the square drive for tightening or loosening
- Fitted with enhanced tilt and swivel TSP300 manifold for horizontal and vertical maneuverability, with greater durability
- Constant torque output provides accuracy of ± 3% across full stroke
- Optional Angle-of-Turn Indicator provides measurement of rotation
Documents
Helpful resources:
Dimensioned Drawing
Instruction Manual
Specifications
