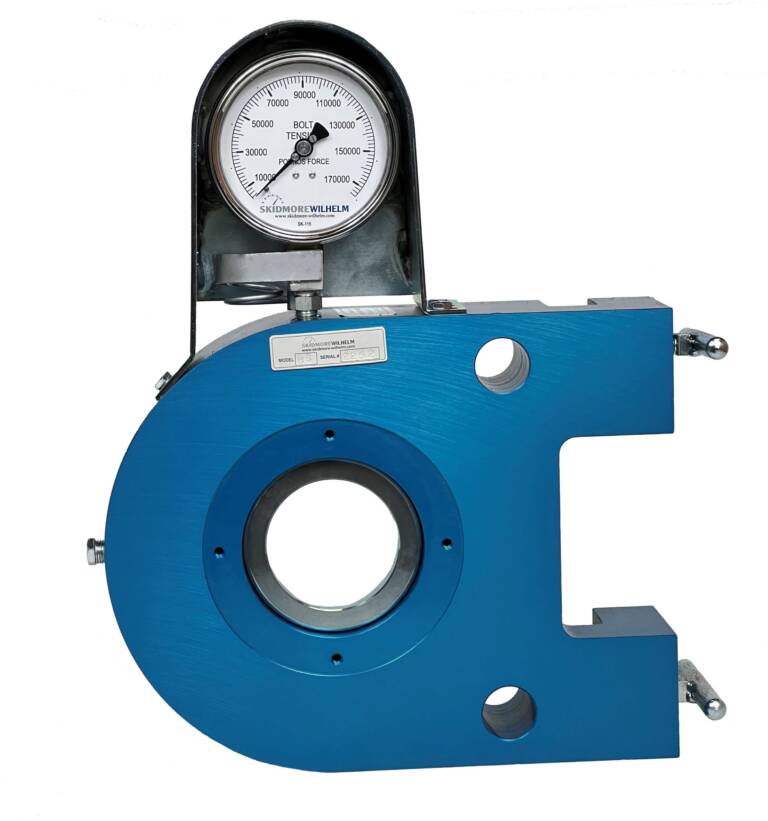

Skidmore Model HS
The Skidmore Model HS is our mid-range heavy duty bolt tension calibrator reaching 170,000 lbs. of bolt tension.
The Model HS Bolt Tension Calibrator verifies:
- Fasteners meet minimum bolt tension specifications.
- Impact wrenches are properly calibrated to achieve proper tension in the bolted joint.
- Tension-control fasteners shear off at the correct tension.
- Direct Tension Indicating (DTI) washers are indicating at proper tension
- Bolting crew understands how to achieve proper tension in all types of fasteners
- You have the right installation tools and equipment.
Capacity: 170,000 lbs. of Bolt Tension
Specifications
| Skidmore HS | Minimum Bolt Length | |
|---|---|---|
| Bolt Diameter | Regular Bolt Length | Short Bolt Length |
| 1″ | 3″ | 2 – 1/4″ |
| 1 – 1/8″ | 3 – 1/4″ | 2 – 1/2″ |
| 1 – 1/4″ | 3 – 1/2″ | 2 – 3/4″ |
| 1 – 3/8″ | 3 – 3/4″ | 3 – 1/4″ |
| 1 – 1/2″ | 4″ | 3 – 3/4″ |
The Model HS can be used with our adapter kits to test the following bolts sizes:
| Imperial | Metric |
| 1″ | M24 |
| 1 – 1/8″ | M27 |
| 1 – 1/4″ | M30 |
| 1 – 3/8″ | M33 |
| 1 – 1/2″ |
