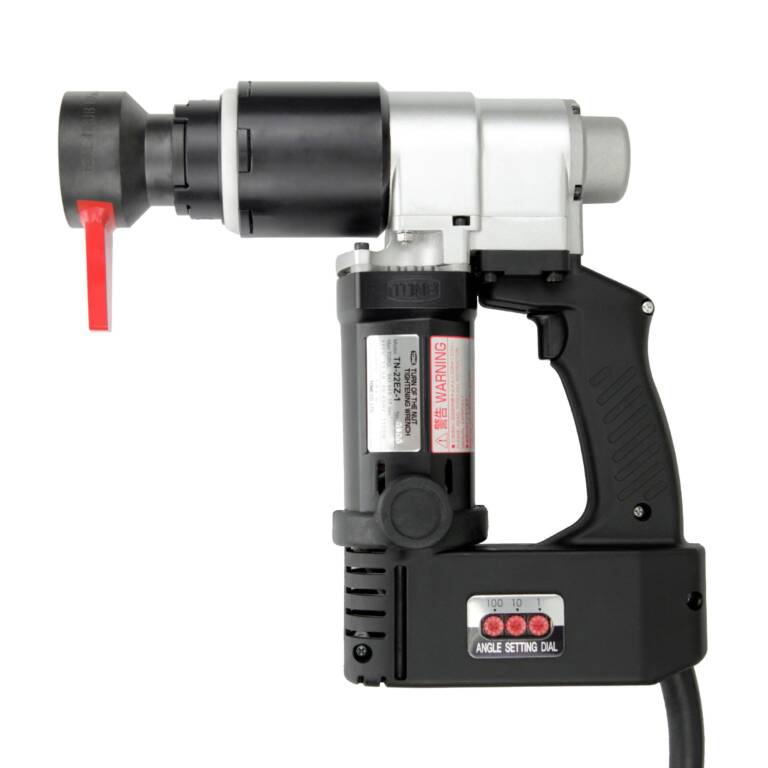

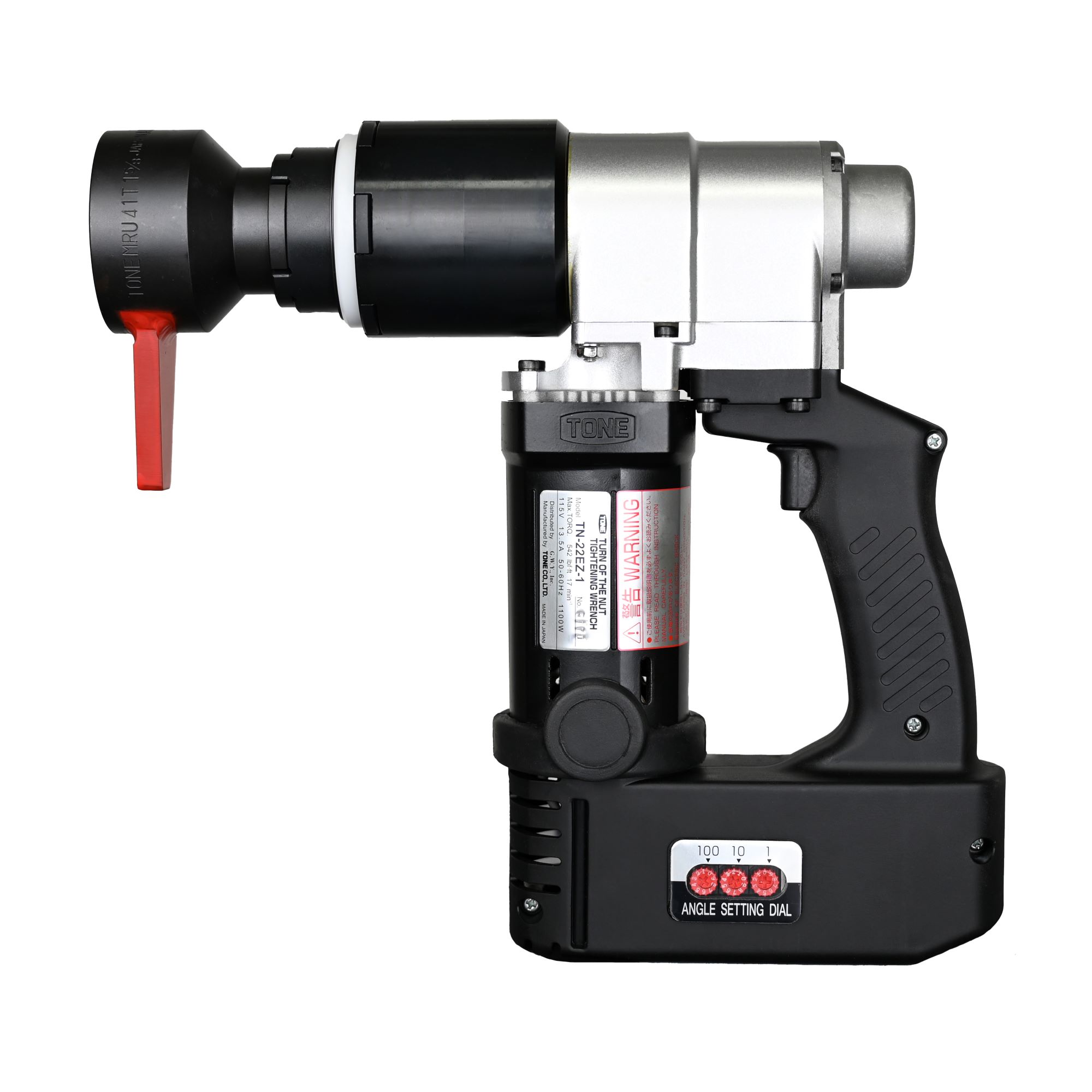

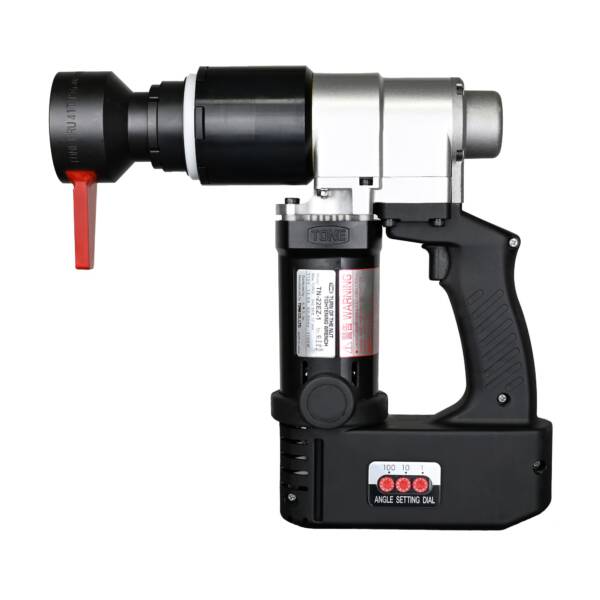

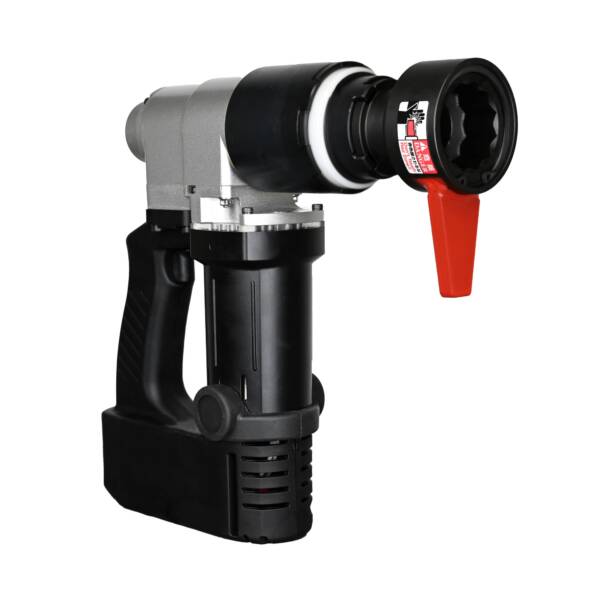

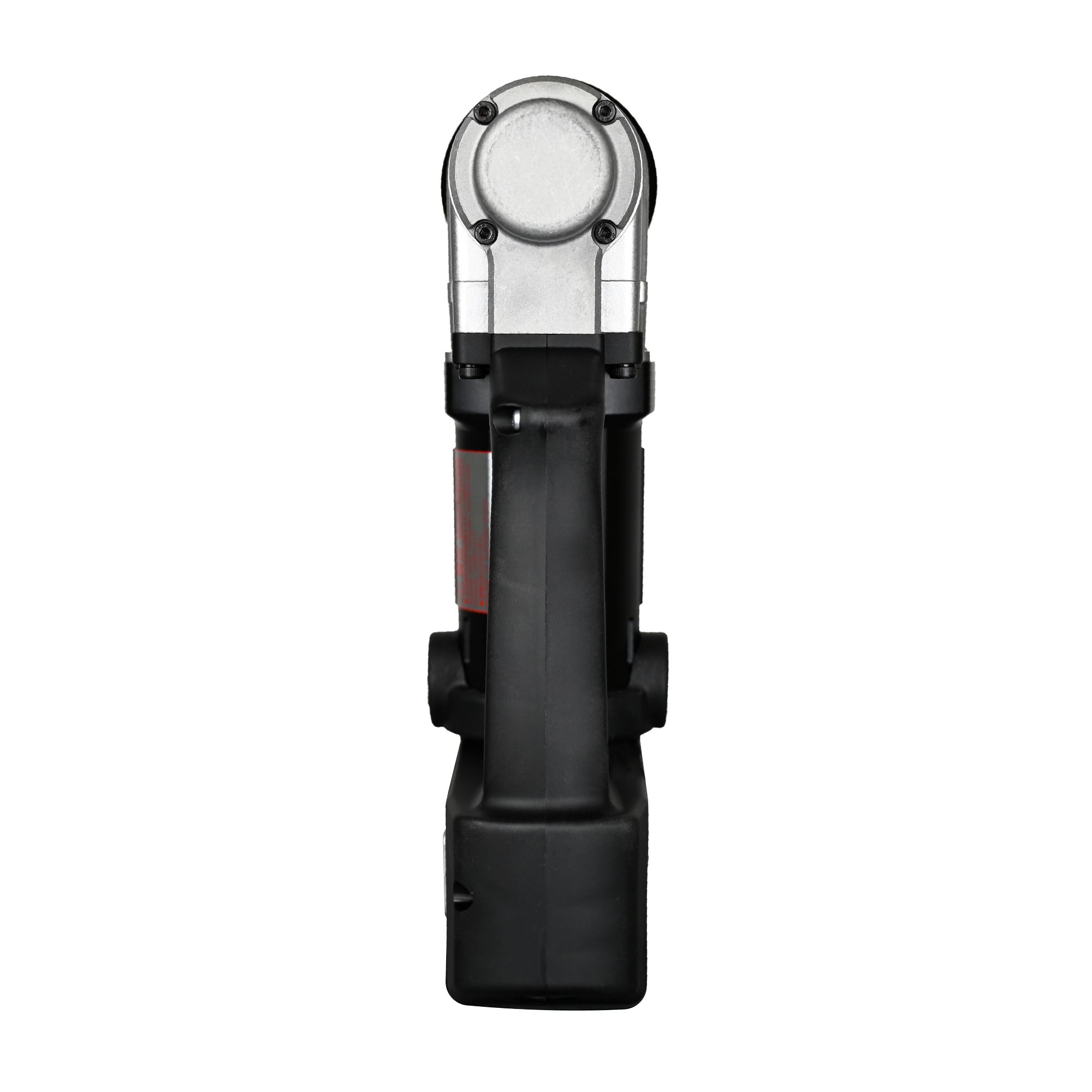

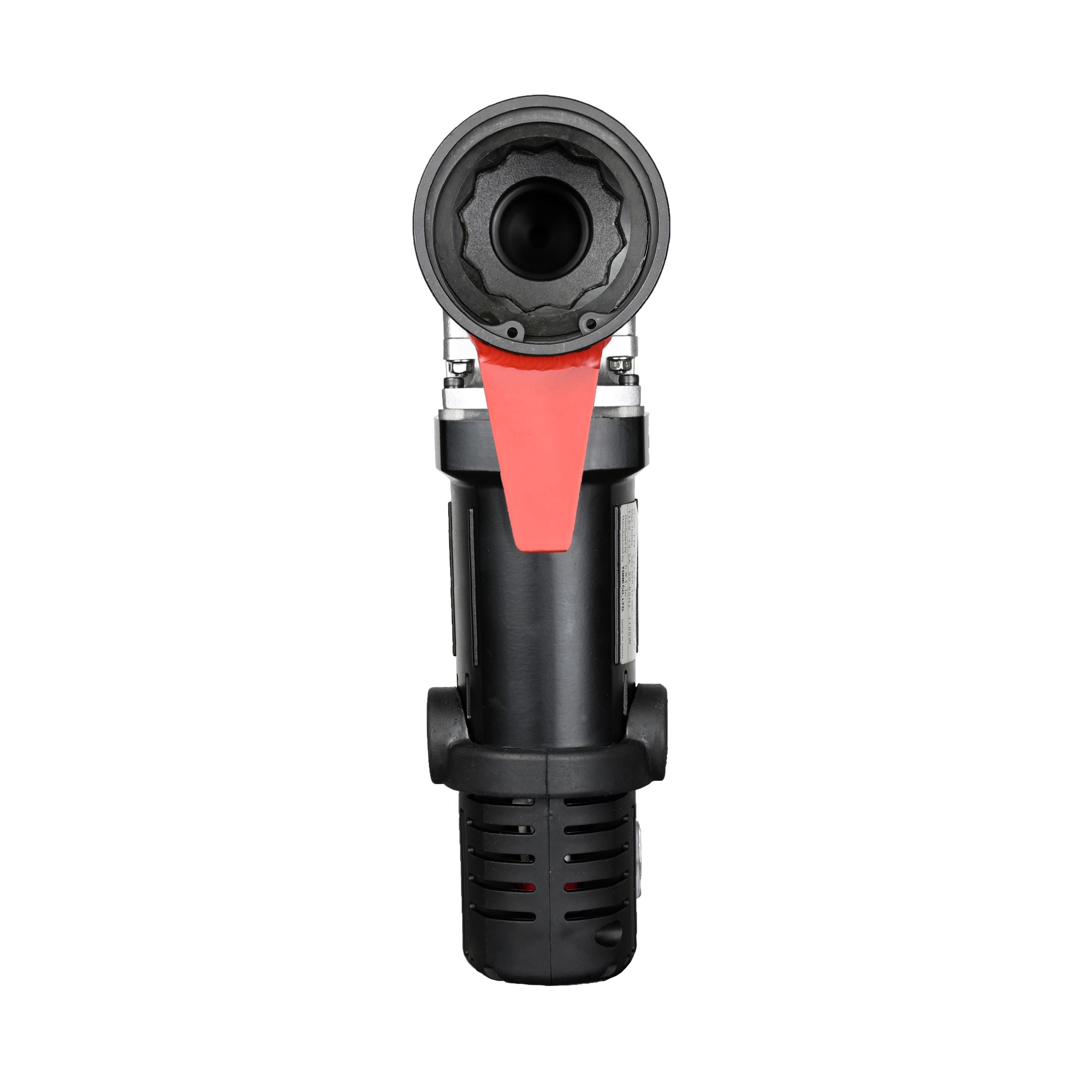

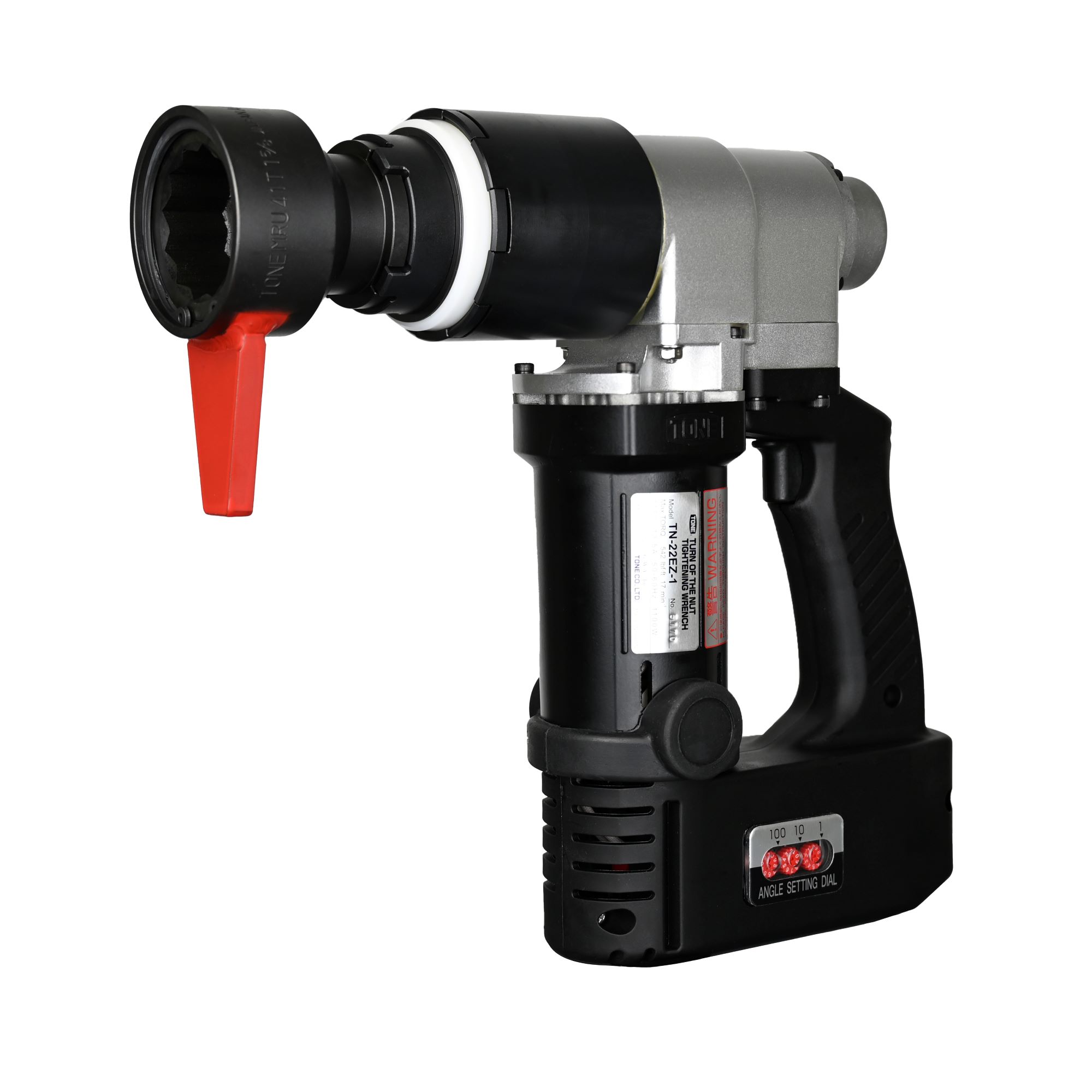

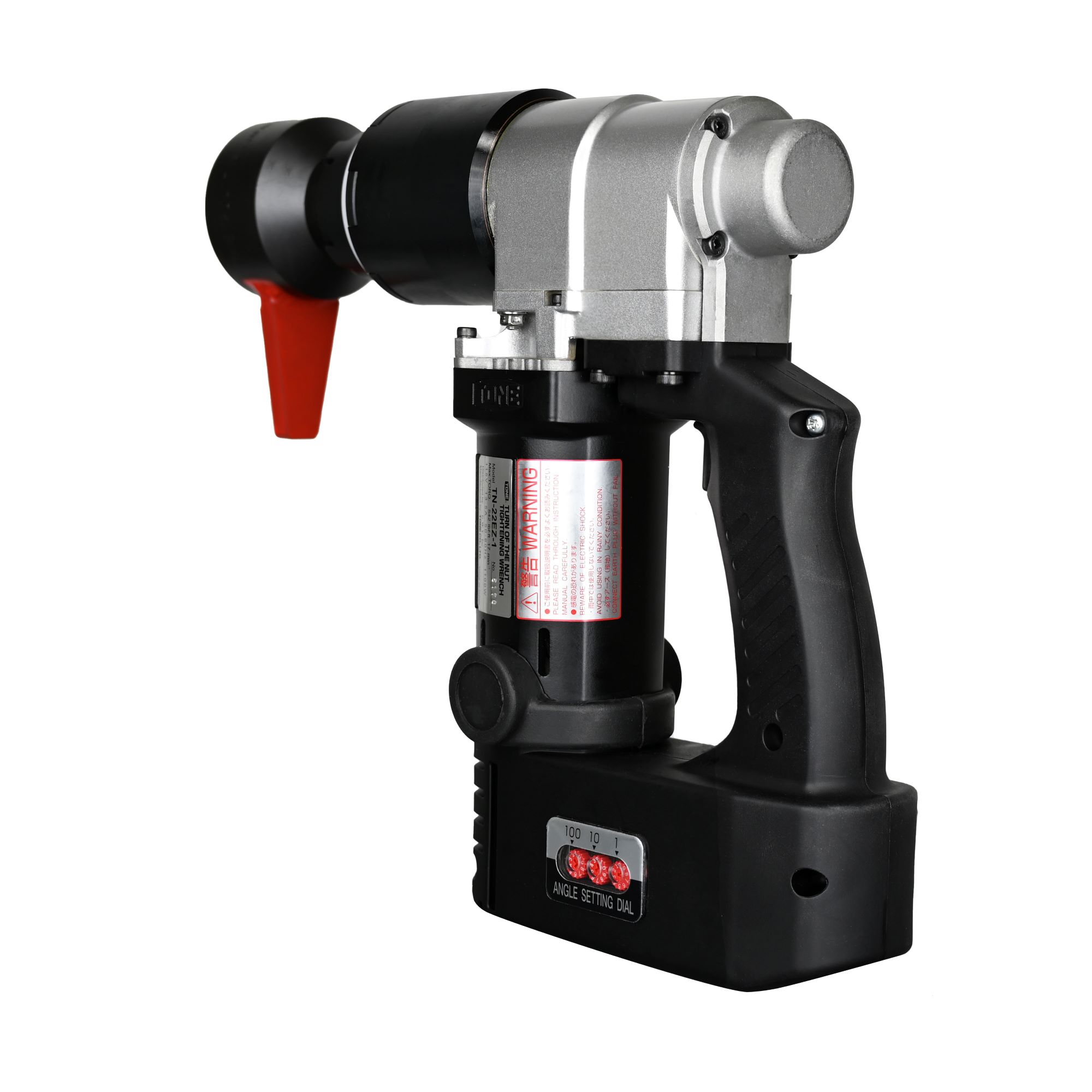

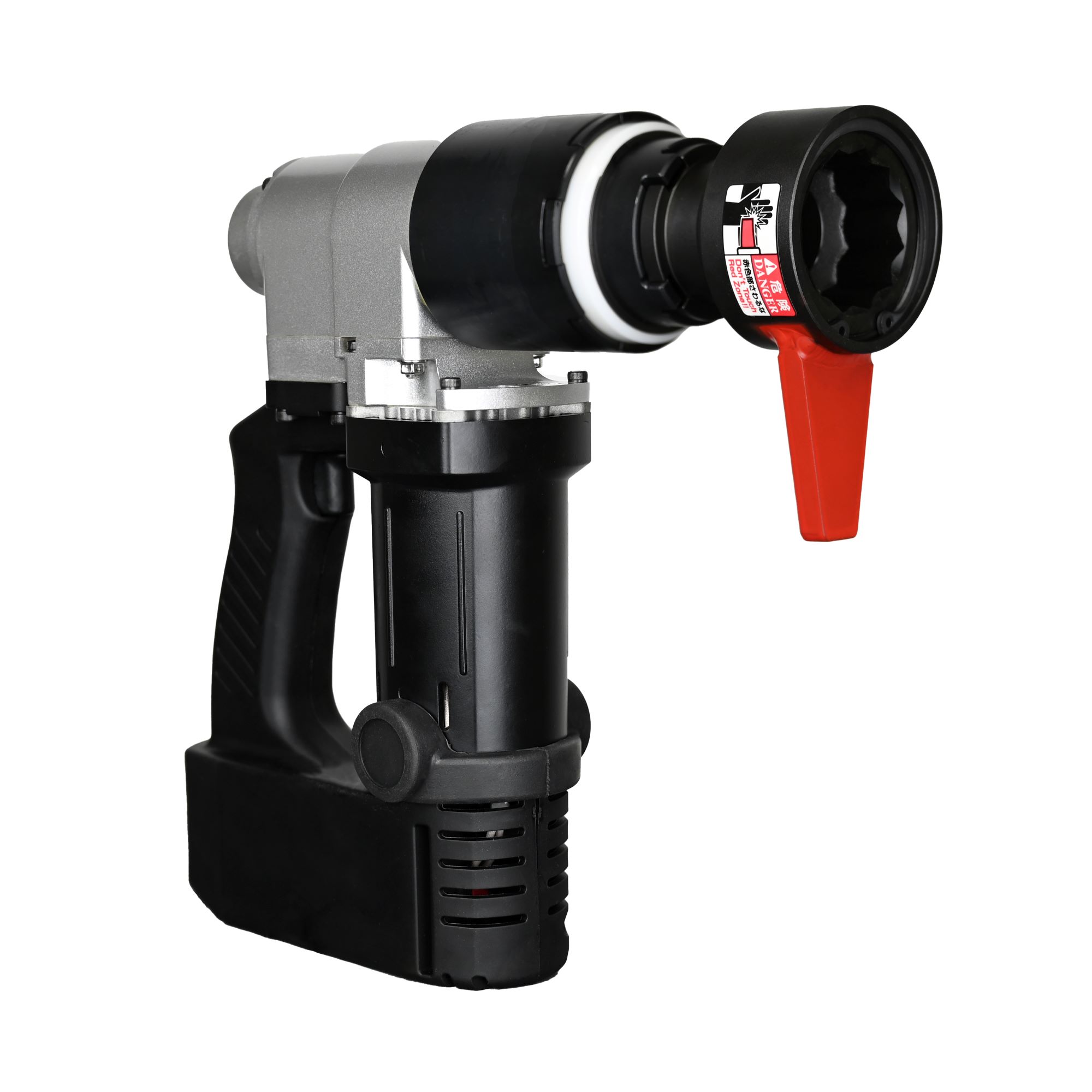

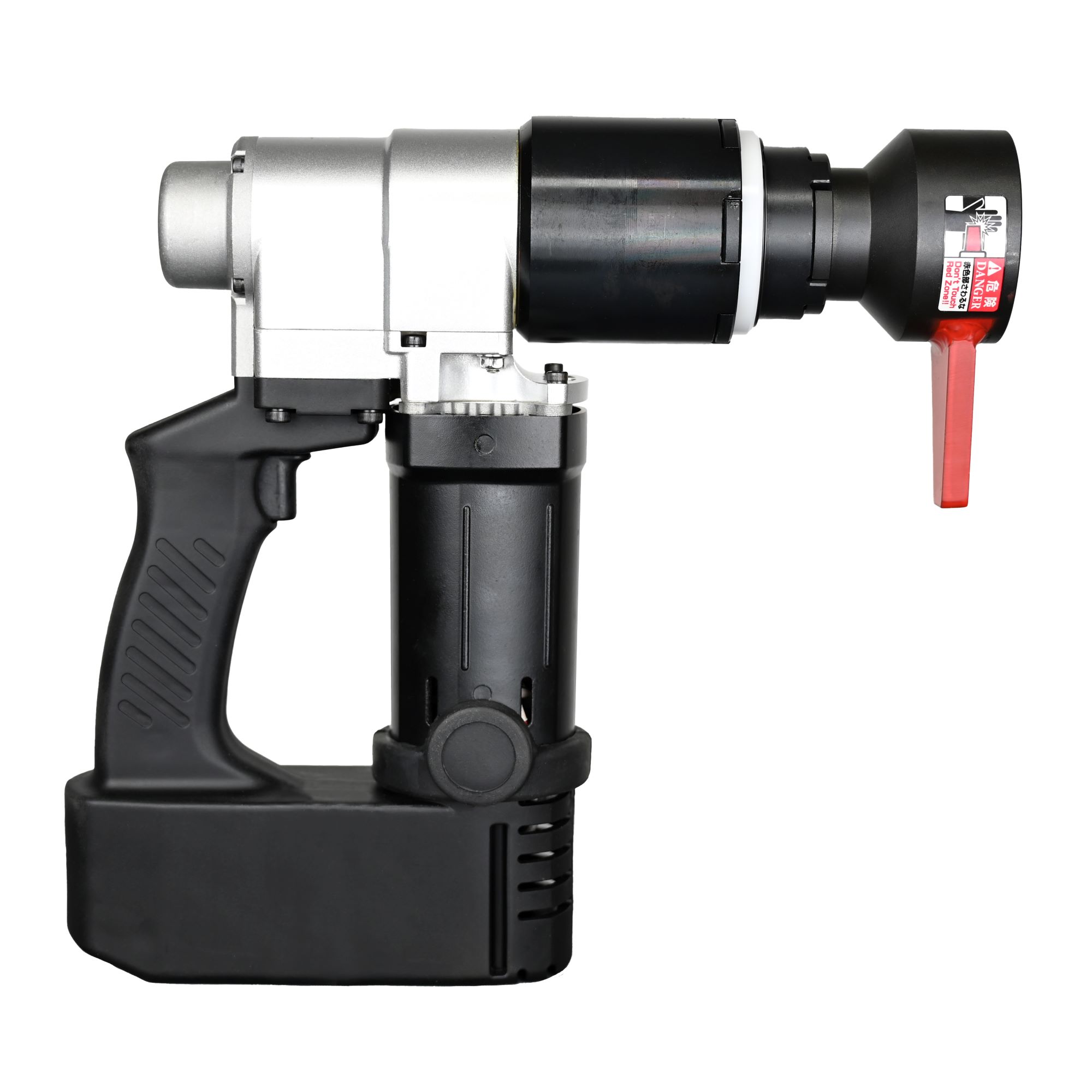

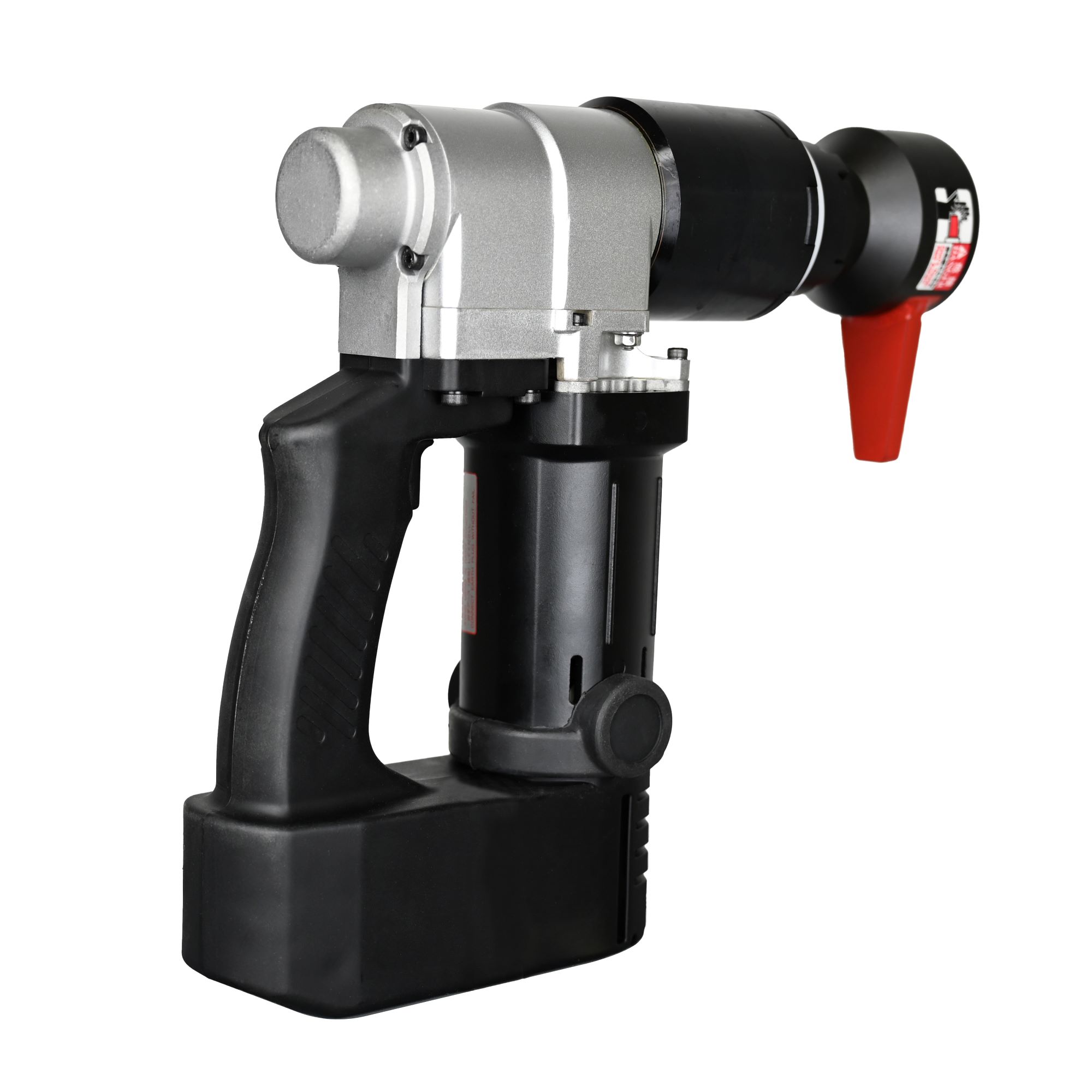

TONE TN-22EZ Turn-of-Nut Wrench

Our exclusive Turn-of-Nut Wrenches are custom designed with timesaving features that minimize error and maximize on the job productivity. Installing hex-head bolts with Turn-of-Nut or DTIs has never been easier.

Fully Tensioned Structural Bolts:

A325 – 5/8″, 3/4″, 7/8″

A325M – M16, M20, M22

A490 – 5/8″, 3/4″

A490M – M16, M20

 Maximum Torque:

542 ft-lb. (735 N-m)
Talk to a Specialist
Want to talk to a specialist now?
(888) 838 6500
Business Hours: 8am - 5pm Est

Specifications & Features

Model TONE TN-22EZ
Voltage 115 V
Maximum Current 13.5 A
Maximum Power 1,100 W
Frequency 50-60 Hz
Maximum Torque 542 ft-lb. (735 N-m)
No-load Speed 17 rpm
Tool Weight 12.3 lb. (5.6 kg)
    • Angle control in 1° increments
    • Controllable angle range between 90-240°
    • Repeated accuracy ±10°
    • Reaction arm absorbs the torque
    • Reduces the risk of injury from arm fatigue
    • Easily move around the jobsite

Available Accessories

Inch Sockets Metric Sockets
Nut Dimension Across Flats Heavy-Hex Bolt Diameter Nut Dimension Across Flats Heavy-Hex Bolt Diameter Finished Hex Bolt Diameter
1 – 1/16″ 5/8″ 24 mm – M16
1 – 1/4″ 3/4″ 27 mm M16 M18
1 – 7/16″ 7/8″ 30 mm – M20
– – 32 mm M20 M22
  • X-Holder Socket Extension 100mm (3-7/8″)
  • Digital Torque Meter DTM8
  • Bar Sockets
  • Pelican IM2700 Case with custom foam inserts



Turn-of-Nut Wrench Parts- Available for all models with same day shipping. Contact us for more information.

Documents

Helpful resources:

Instructional Manual

Dimensioned Drawings

Turn-of-Nut Catalog

Extension Cord Chart

Safety Precautions
