TN-24EZA

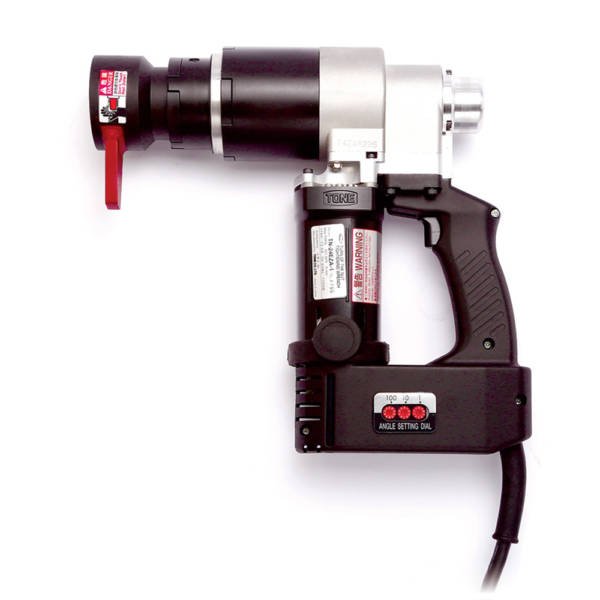

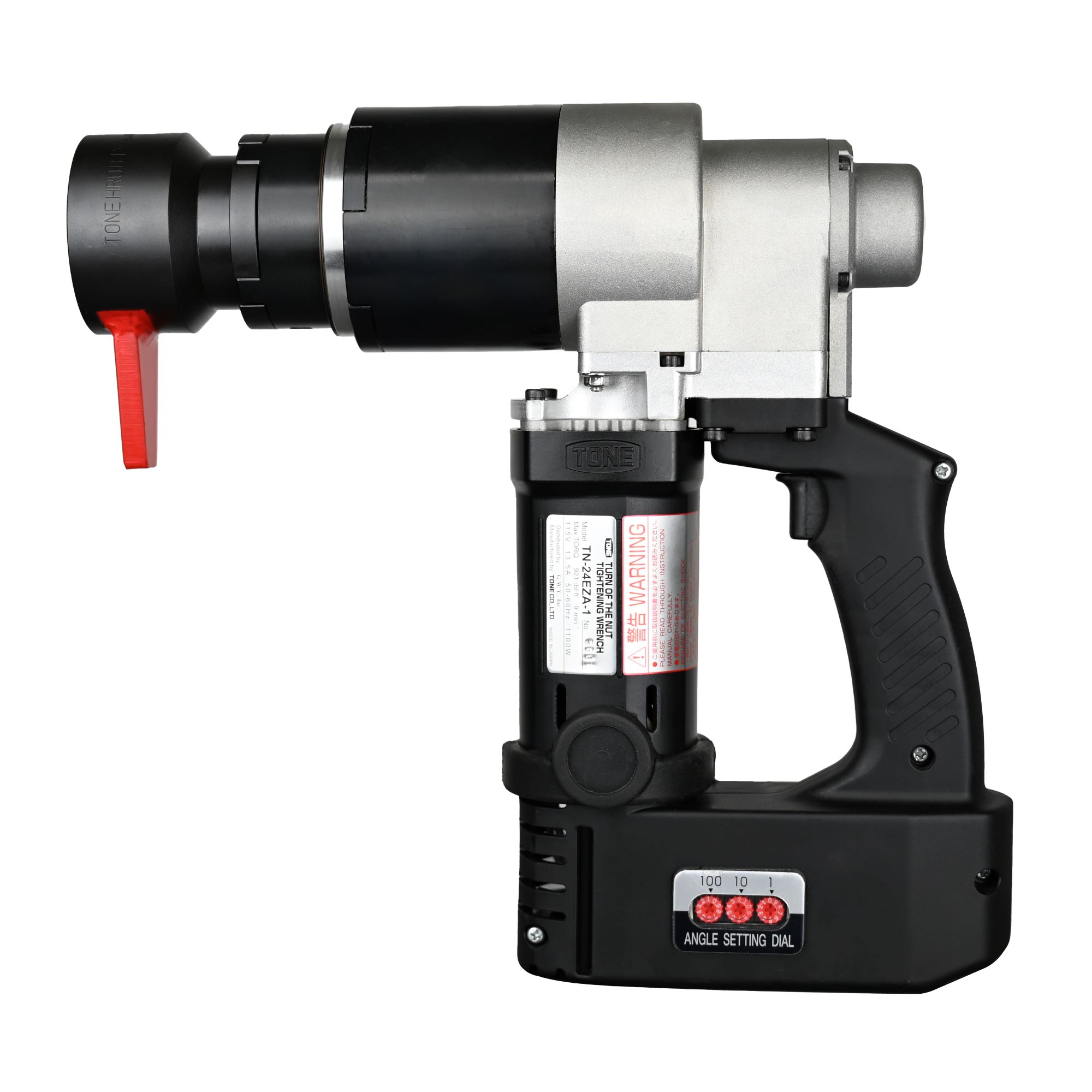

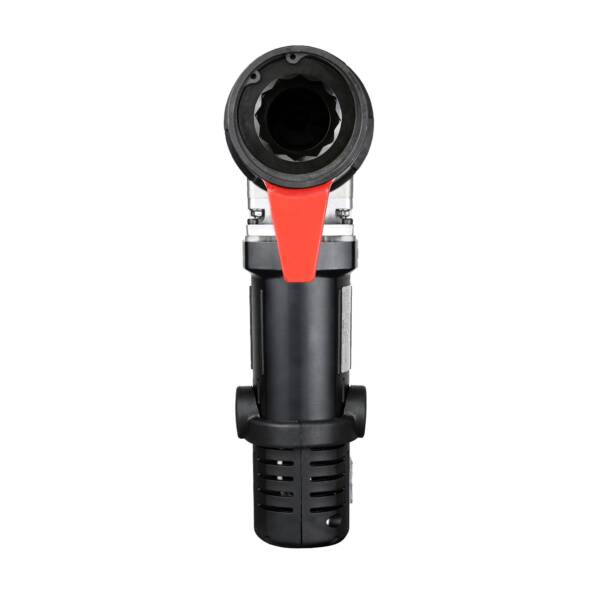

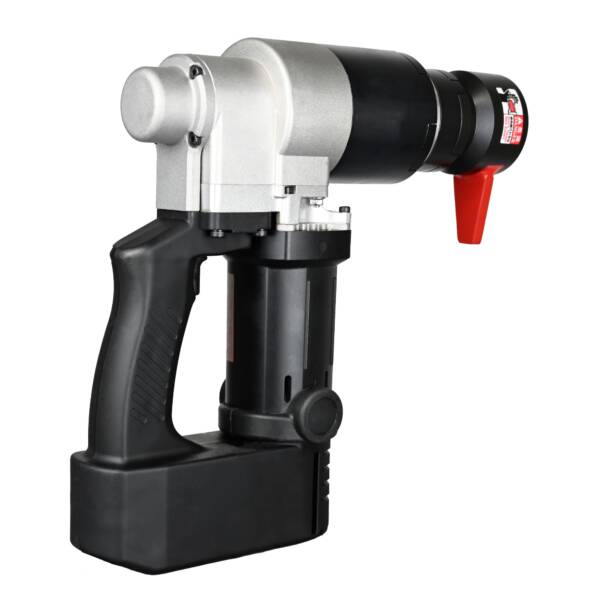

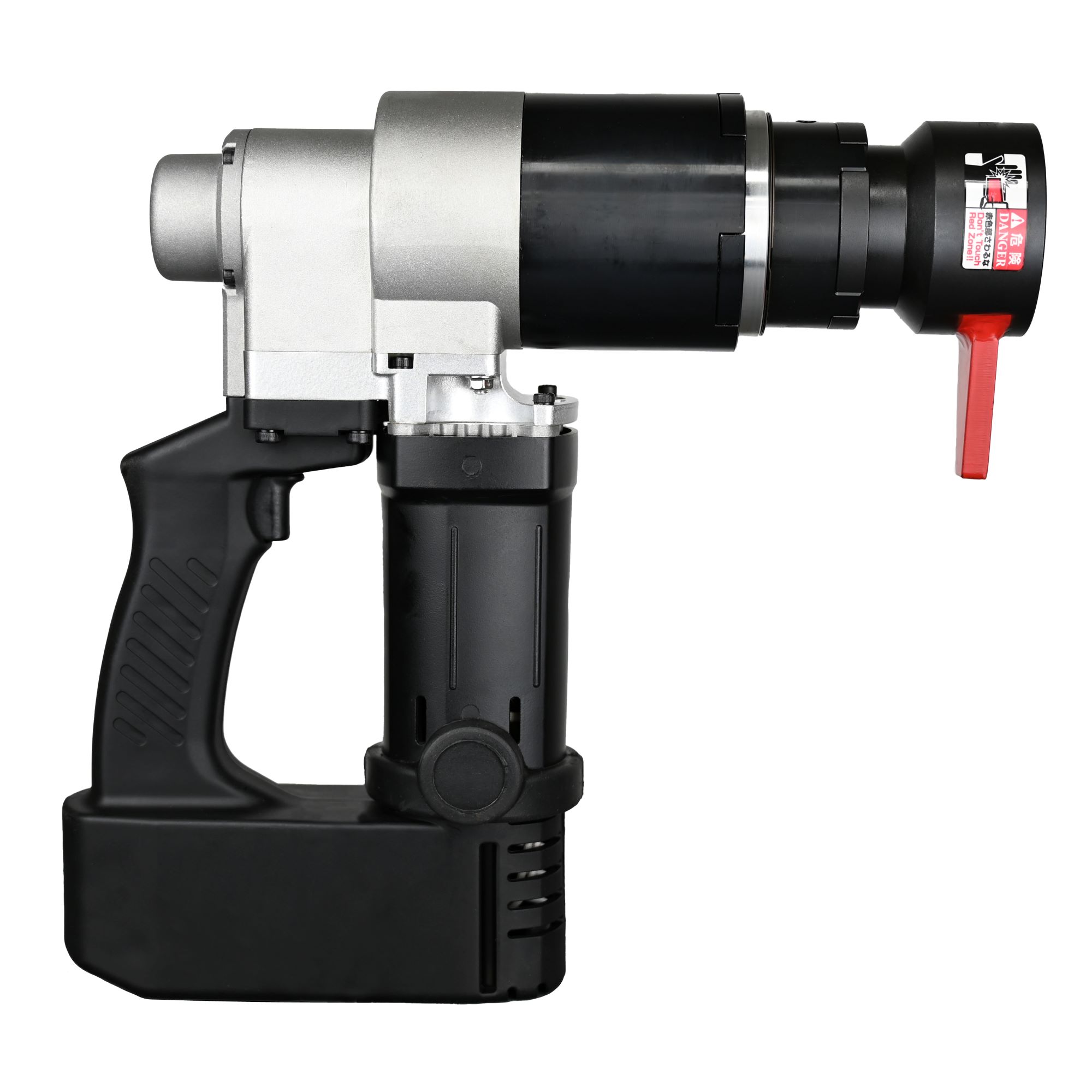

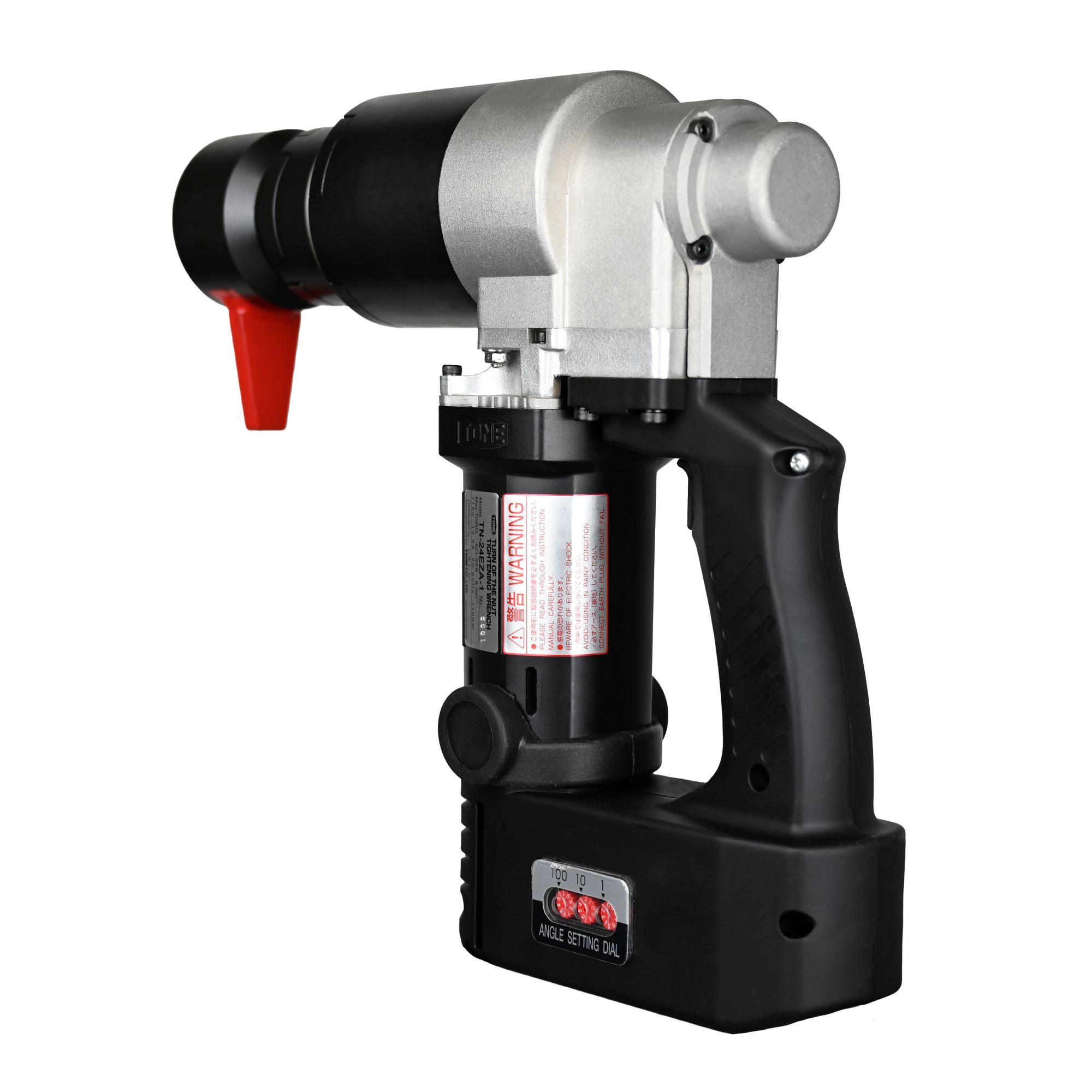

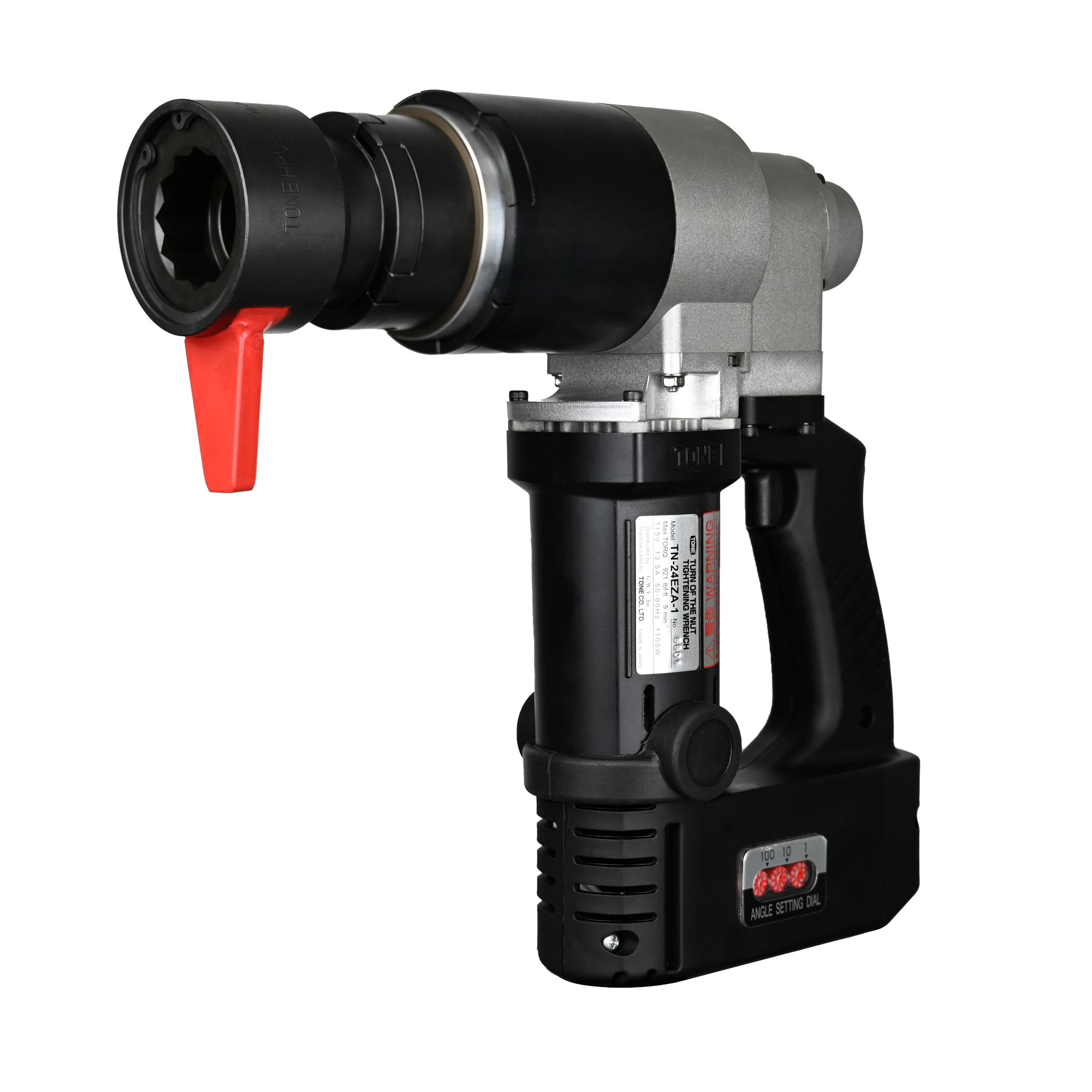

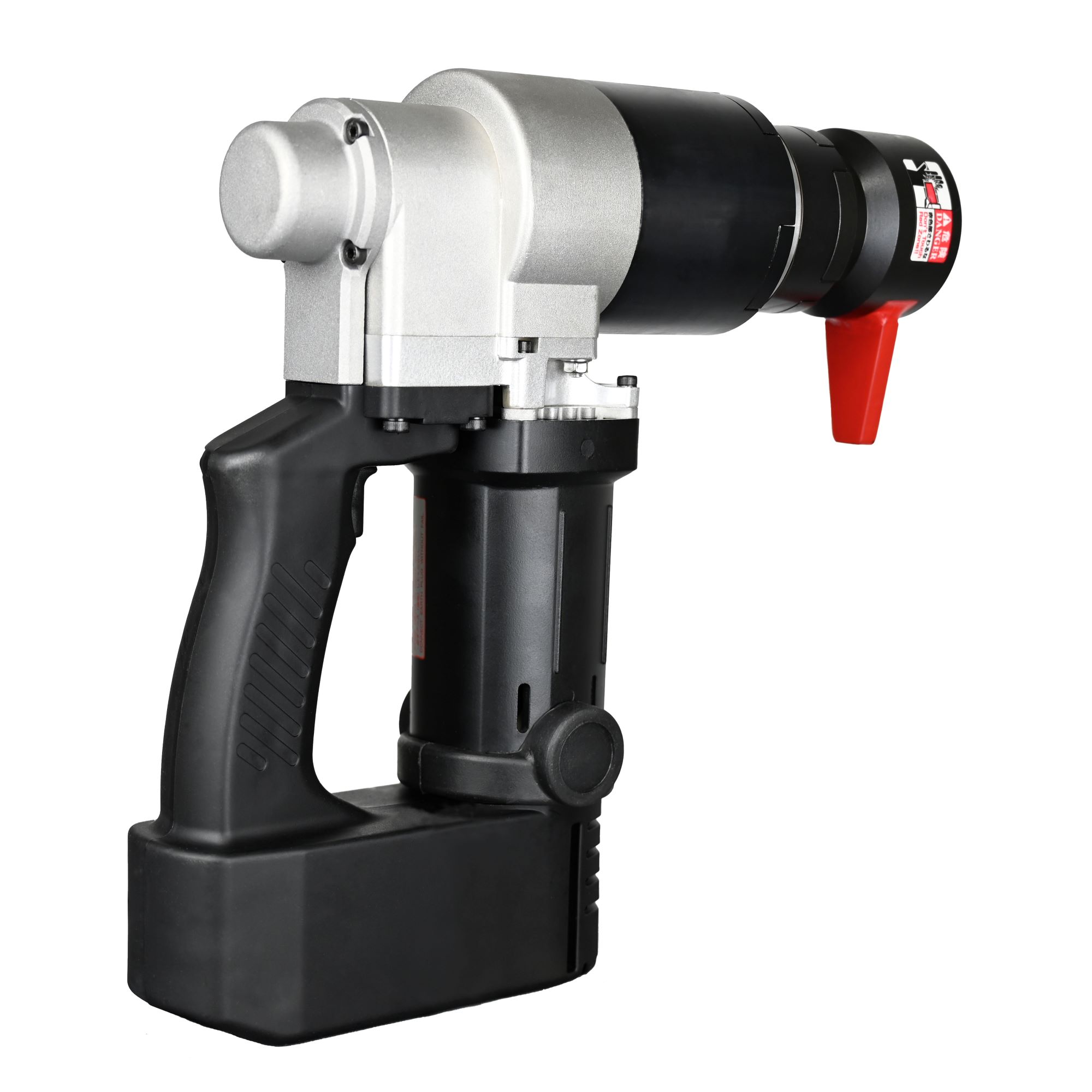

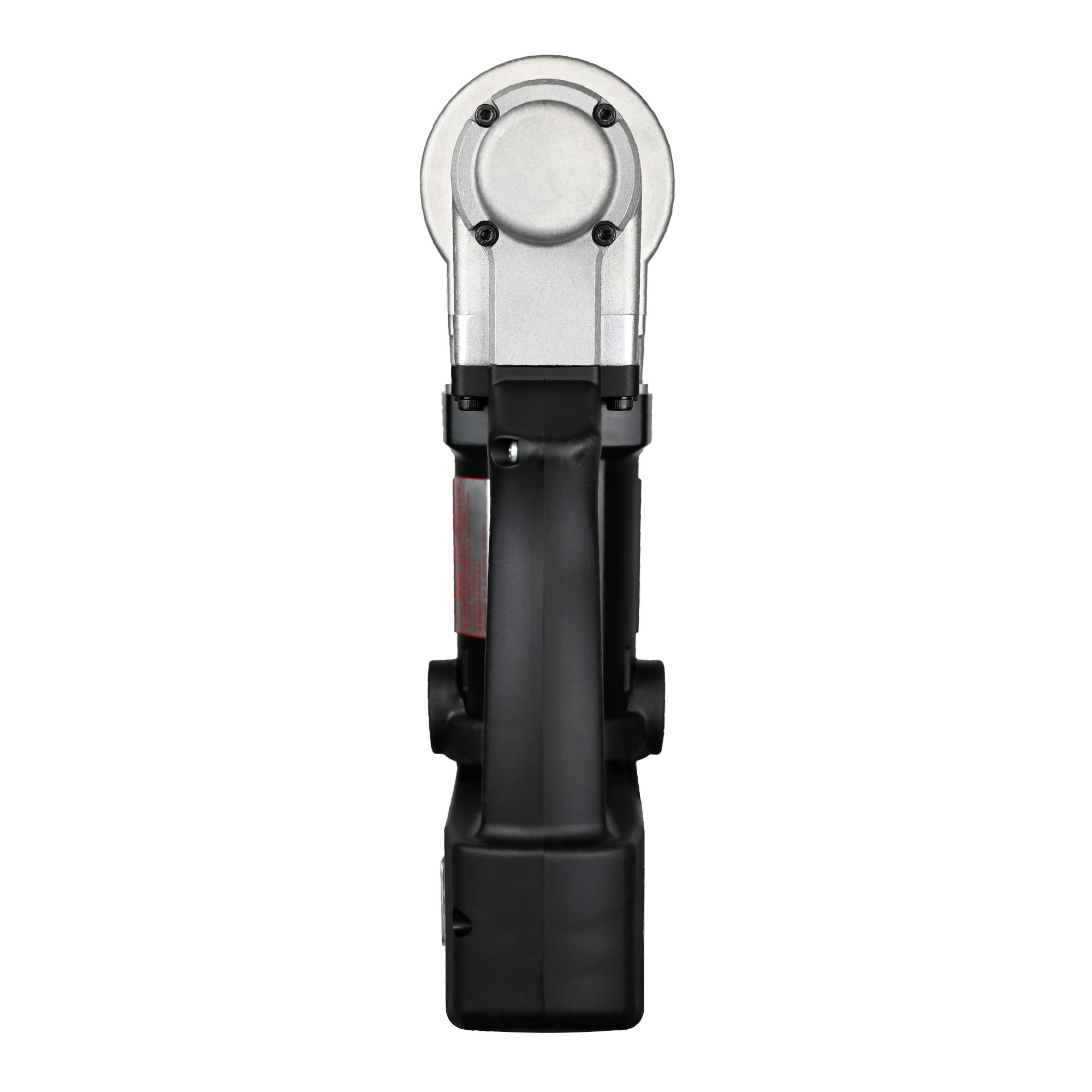

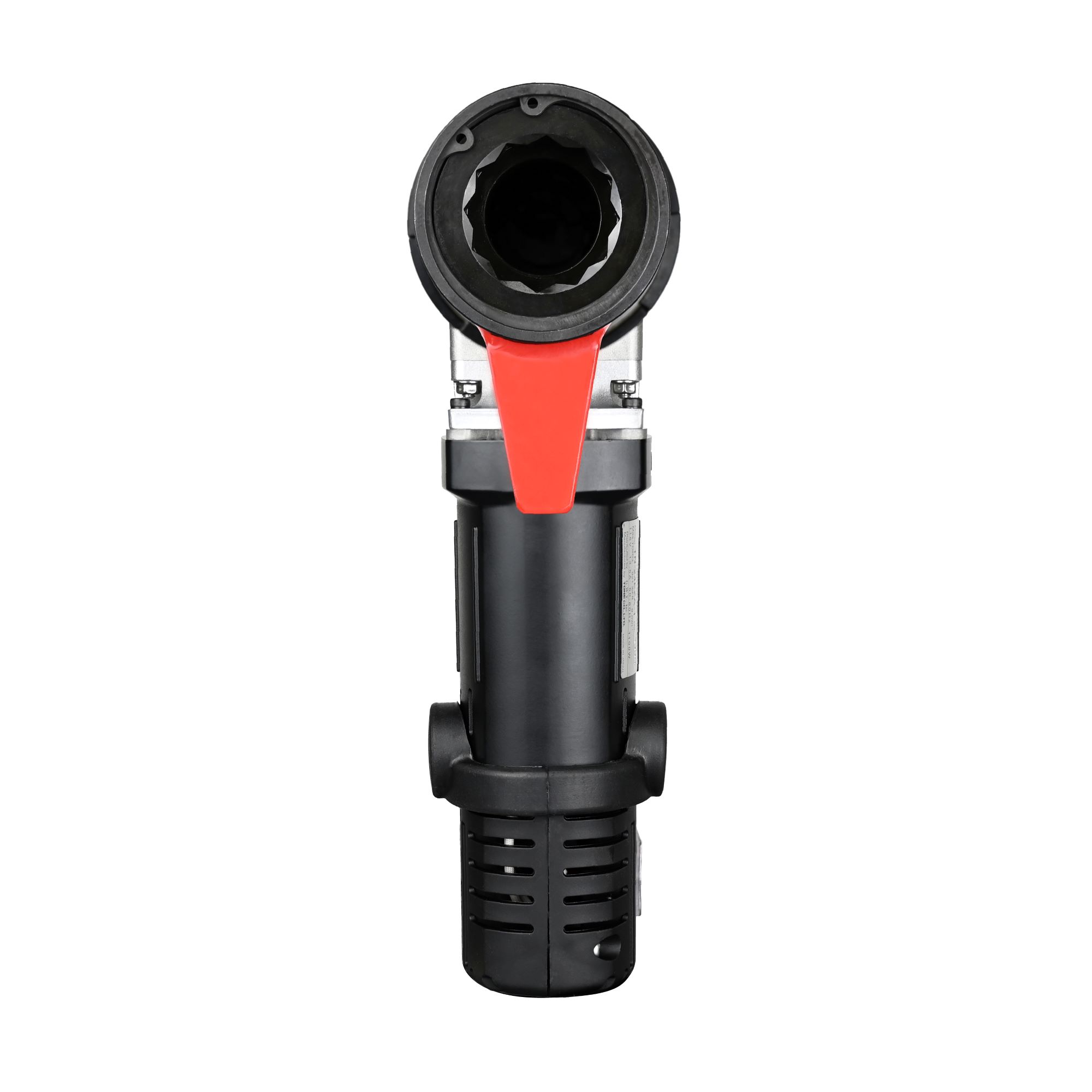

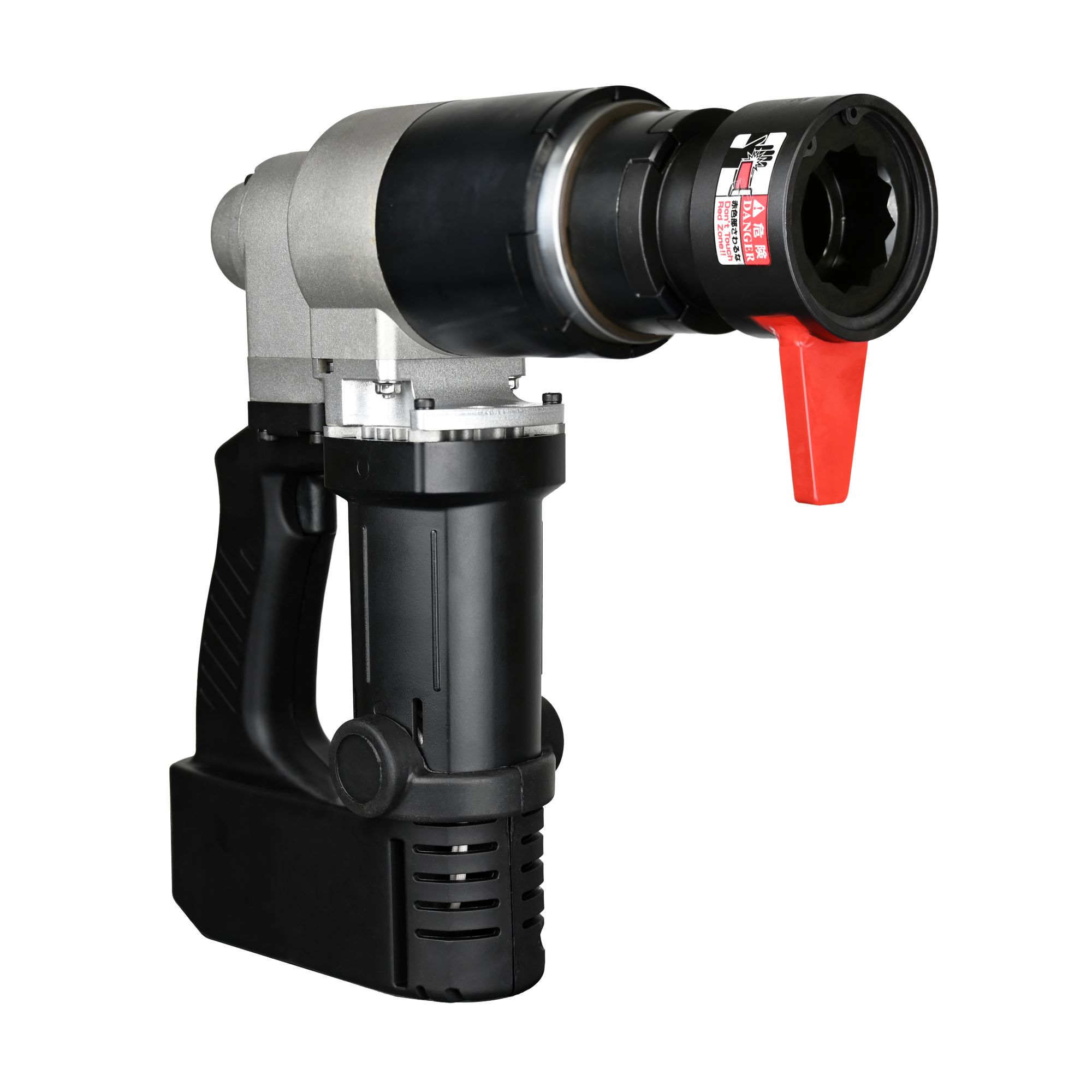

TONE TN-24EZA Turn-of-Nut Wrench

Our exclusive Turn-of-Nut Wrenches are custom designed with timesaving features that minimize error and maximize on the job productivity. Installing hex-head bolts with Turn-of-Nut or DTIs has never been easier.

Fully Tensioned Structural Bolts:

A325 – 3/4”, 7/8”, 1″*

A325M – M20, M22, M24*

A490 – 3/4”, 7/8″

A490M – M20, M22

 Maximum Torque:

921 ft-lb. (1250 N-m)

*Not for normal use with these diameter bolts, lubrication is required

Talk to a Specialist
Want to talk to a specialist now?
(888) 838 6500
Business Hours: 8am - 5pm Est

Specifications & Features

Model TONE TN-24EZA
Voltage 115 V
Maximum Current 13.5 A
Maximum Power  1,100 W
Frequency 50-60 Hz
Maximum Torque 921 ft-lb. (1,250 N-m)
No-load Speed 9 rpm
Tool Weight 15.4 lb. (7.0 kg)
    • Angle control in 1° increments
    • Controllable angle range between 90-240°
    • Repeated accuracy ±10°
    • Reaction arm absorbs the torque
    • Reduces the risk of injury from arm fatigue
    • Easily move around the jobsite

Available Accessories

Inch Sockets Metric Sockets
Nut Dimension Across Flats Heavy-Hex Bolt Diameter Nut Dimension Across Flats Heavy-Hex Bolt Diameter Finished Hex Bolt Diameter
1 – 1/4″ 3/4″ 32 mm M20 M22
1 – 7/16″ 7/8″ 36 mm M22 M24
1 – 5/8″* 1″* 41 mm* M24* M27*

*Not for normal use with these diameter bolts, lubrication is required

  • X-Holder Socket Extension 100mm (3-7/8″)
  • Digital Torque Meter DTM12
  • Bar Sockets
  • Reverse Kit Installation
  • Pelican IM2700 Case with custom foam inserts



Turn-of-Nut Wrench Parts- Available for all models with same day shipping. Contact us for more information.

Documents

Helpful resources:

Instructional Manual

Dimensioned Drawings

Turn-of-Nut Catalog

Extension Cord Chart

Safety Precautions

Trusted by:

Testimonials

Kind words from our customers:

  • “It was a great pleasure working with GWY. They go above and beyond to help with what we needed. Don was very quick on getting what we needed out to us to complete the job. Very proud to be a GWY customer.”

    Bobby
    HB Metal Builders

  • “I have enjoyed working with GWY. Their people know their product well. Their prompt response and delivery of the product is as good as any service Ogeechee Steel has ever had the pleasure of doing business with.”

    David
    Ogeechee Steel

FAQs

Because the TN-tool is rotation based, can it do smaller sizes than what it is recommended for?

No, because for the tool to start counting the degrees of rotation, a certain torque must be met.

Does my TN wrench need to be calibrated?

No, turn of nut (TN) wrenches do not require calibration. TN tools are rotation tools, and they measure rotation mechanically. These tools either work or they do not. You can match mark to show they are functioning properly.

Are the same size sockets interchangeable between different tools?

Typically, the answer is no but there are exceptions.  The only interchangeable sockets for current model shear wrenches are between the GV-301ZA and the GVC-301EZ. The Older models like the S-60EZA share sockets with their newer models like the S-61EZ. The same is true for the S-90EZ and GS-91EZ as well as the S-110EZ and the GS-111EZ. There are a few TN tools that share sockets with each other such as the TN-20EZ and the TN-22EZ as well as the TN-30EZ and the TN-33EZ. The GNR series can share sockets with some of the TN tools. The GNR-31E, 51E, & 81E can use the TN-20EZ/22EZ bar sockets instead of impact sockets. The GNR-121E can use the bar sockets of the TN-24EZA and the GNR-211E can use the bar sockets of the TN-30EZ/33EZ. The GNR’s can also share impact sockets that have their correct drive size.
