TN-39EZ

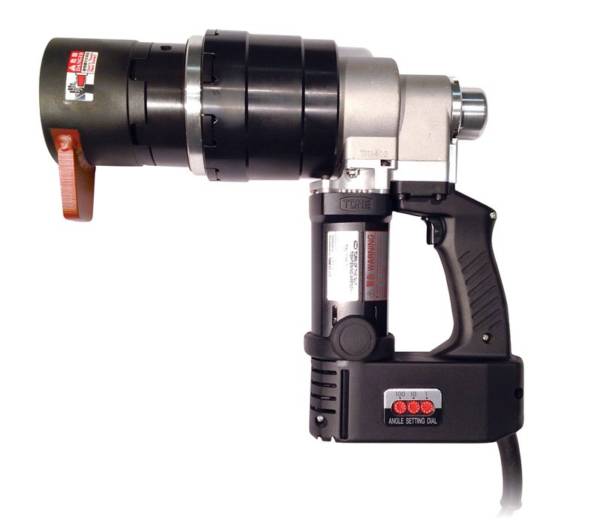

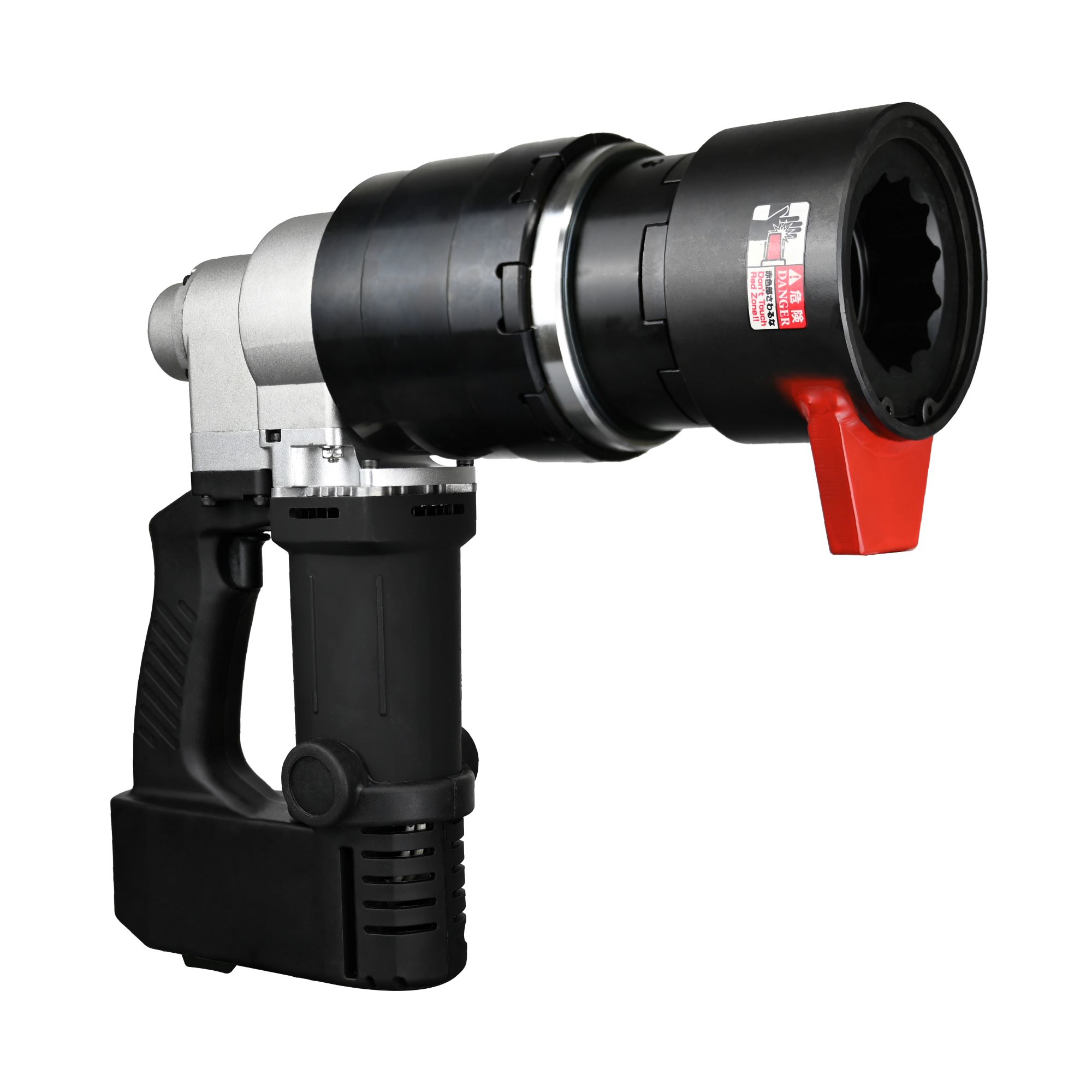

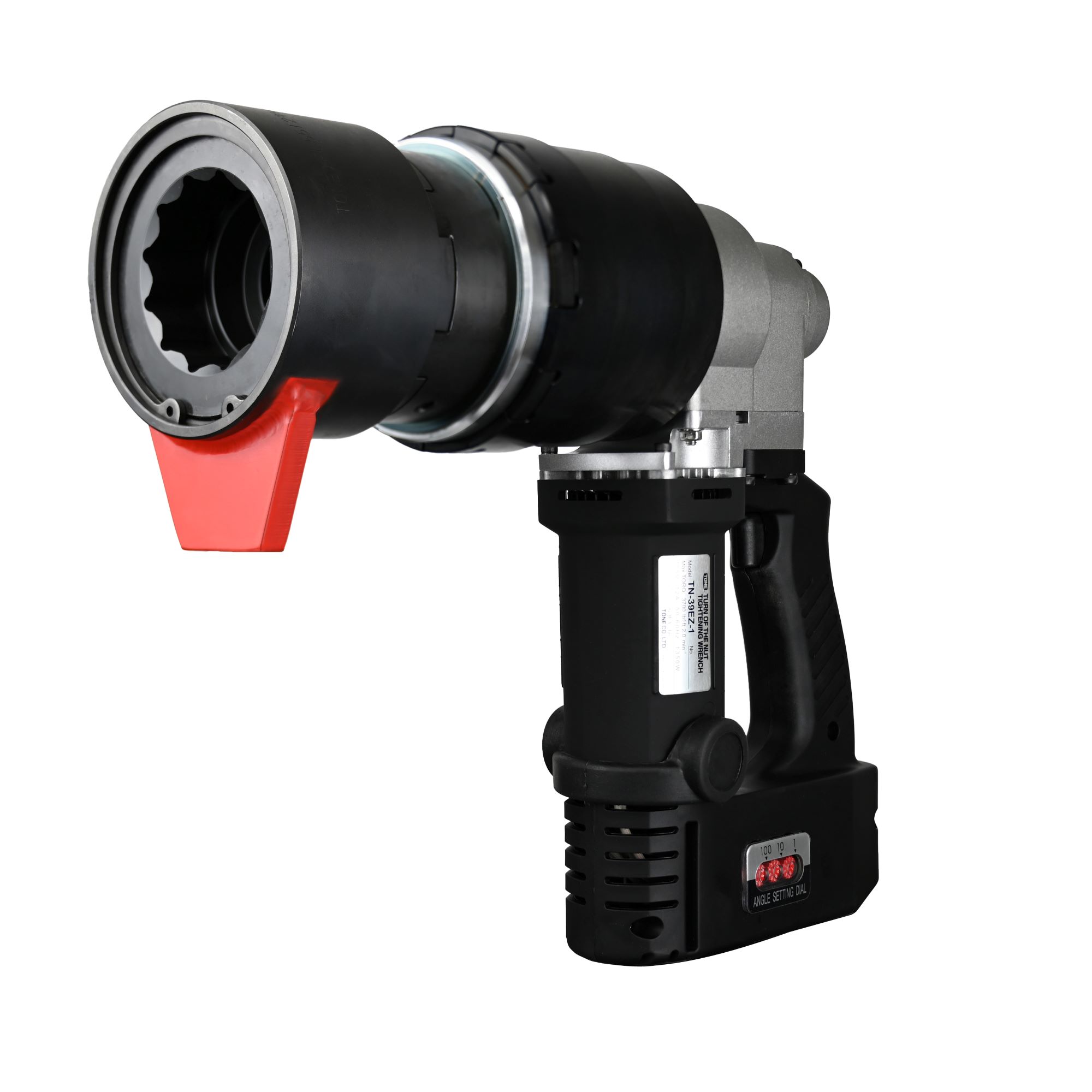

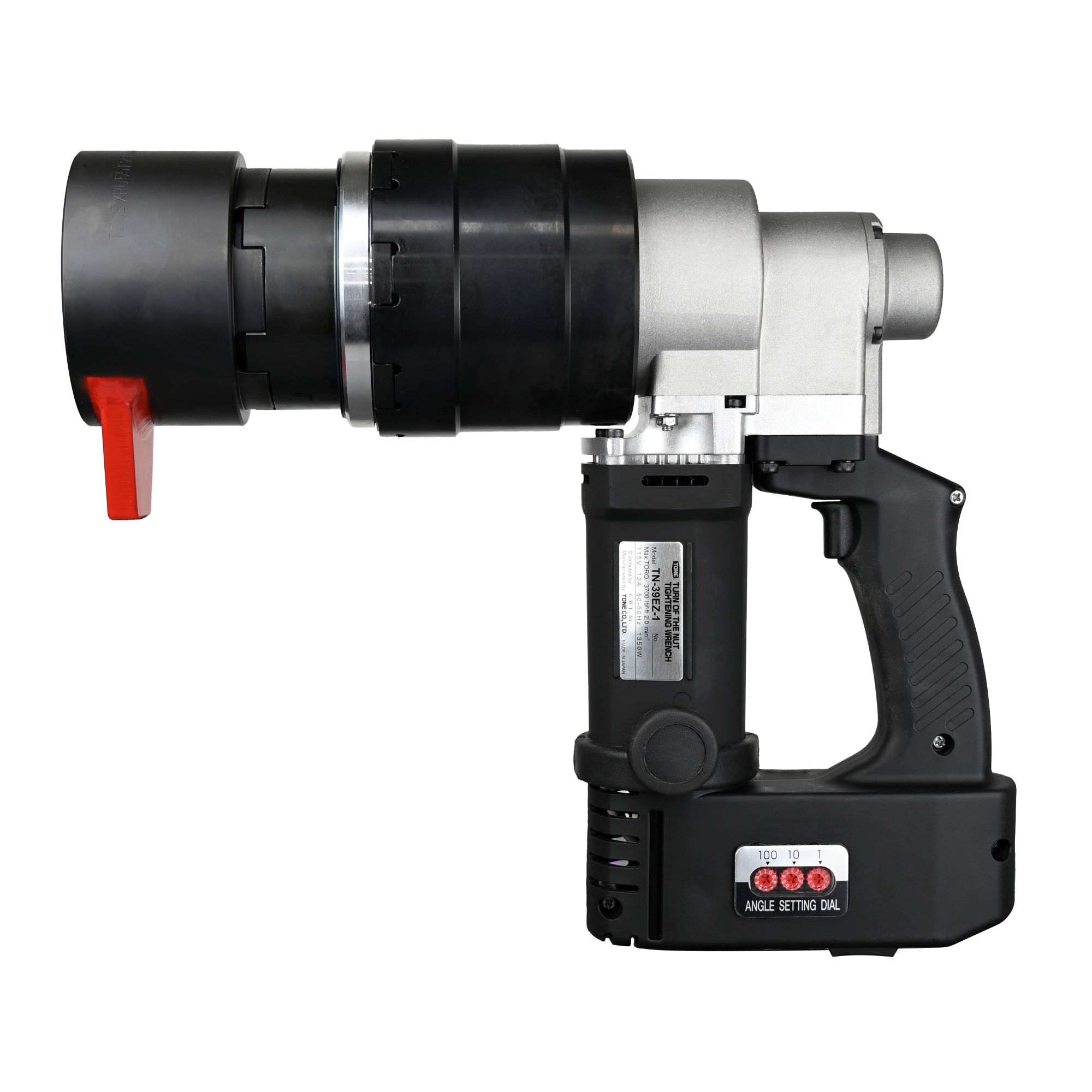

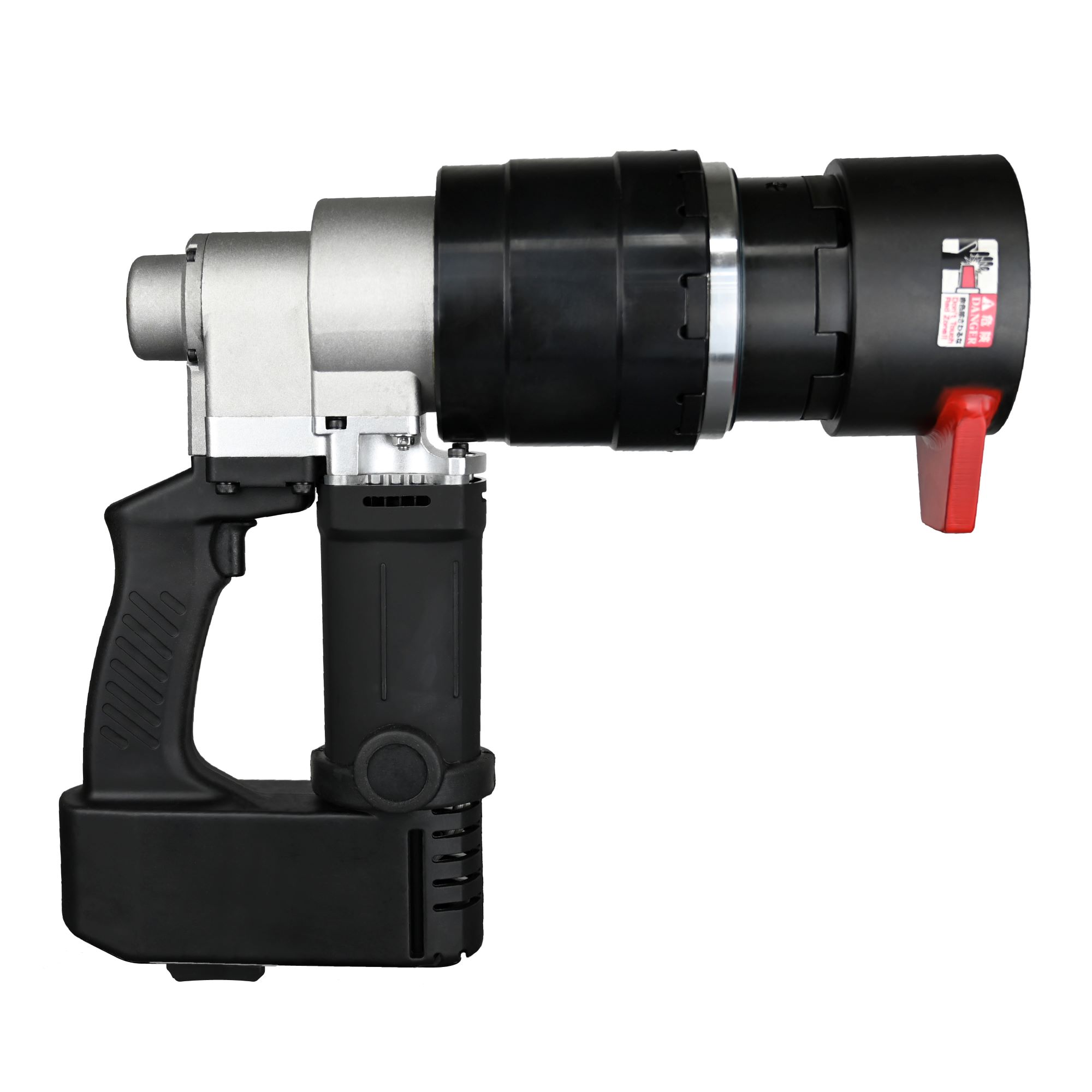

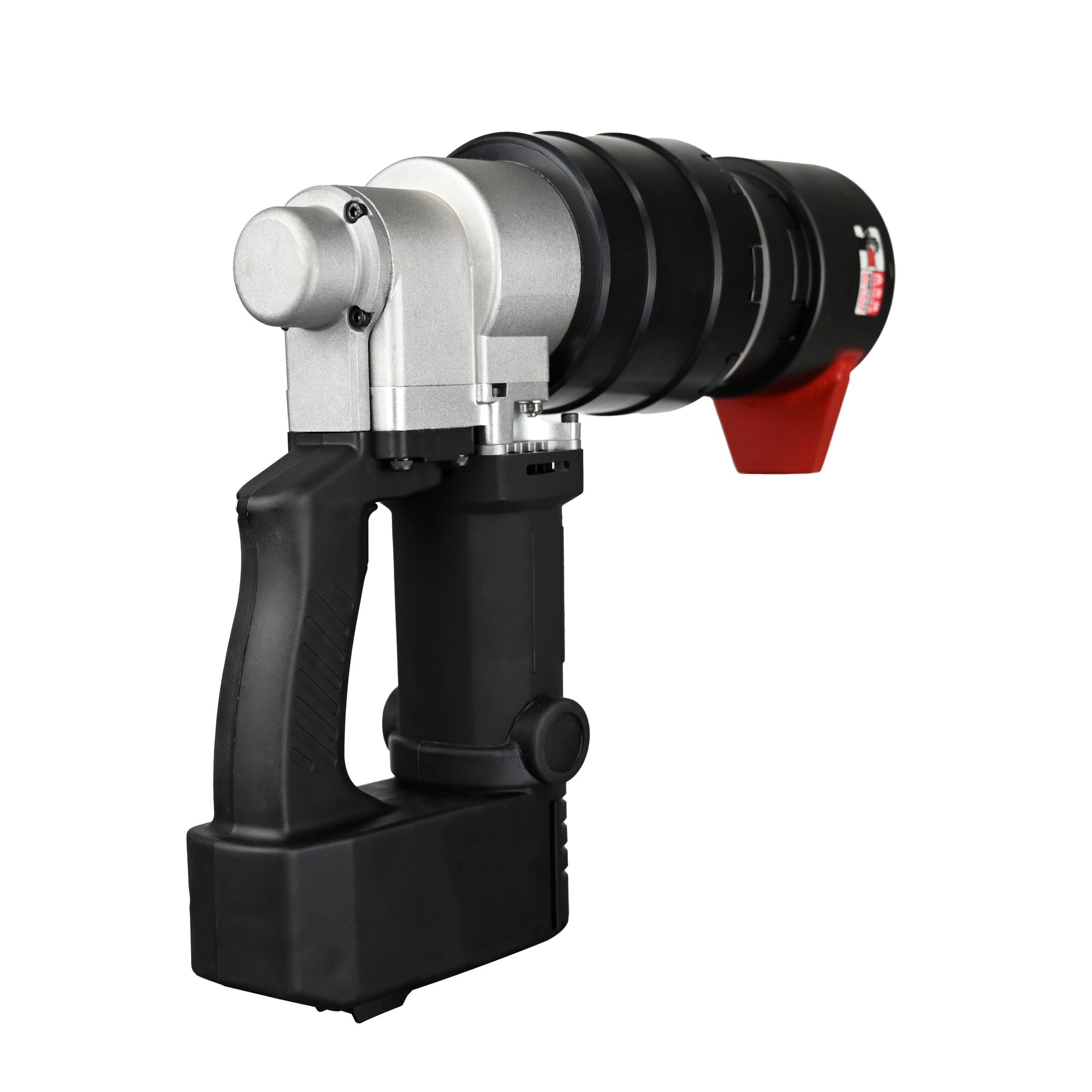

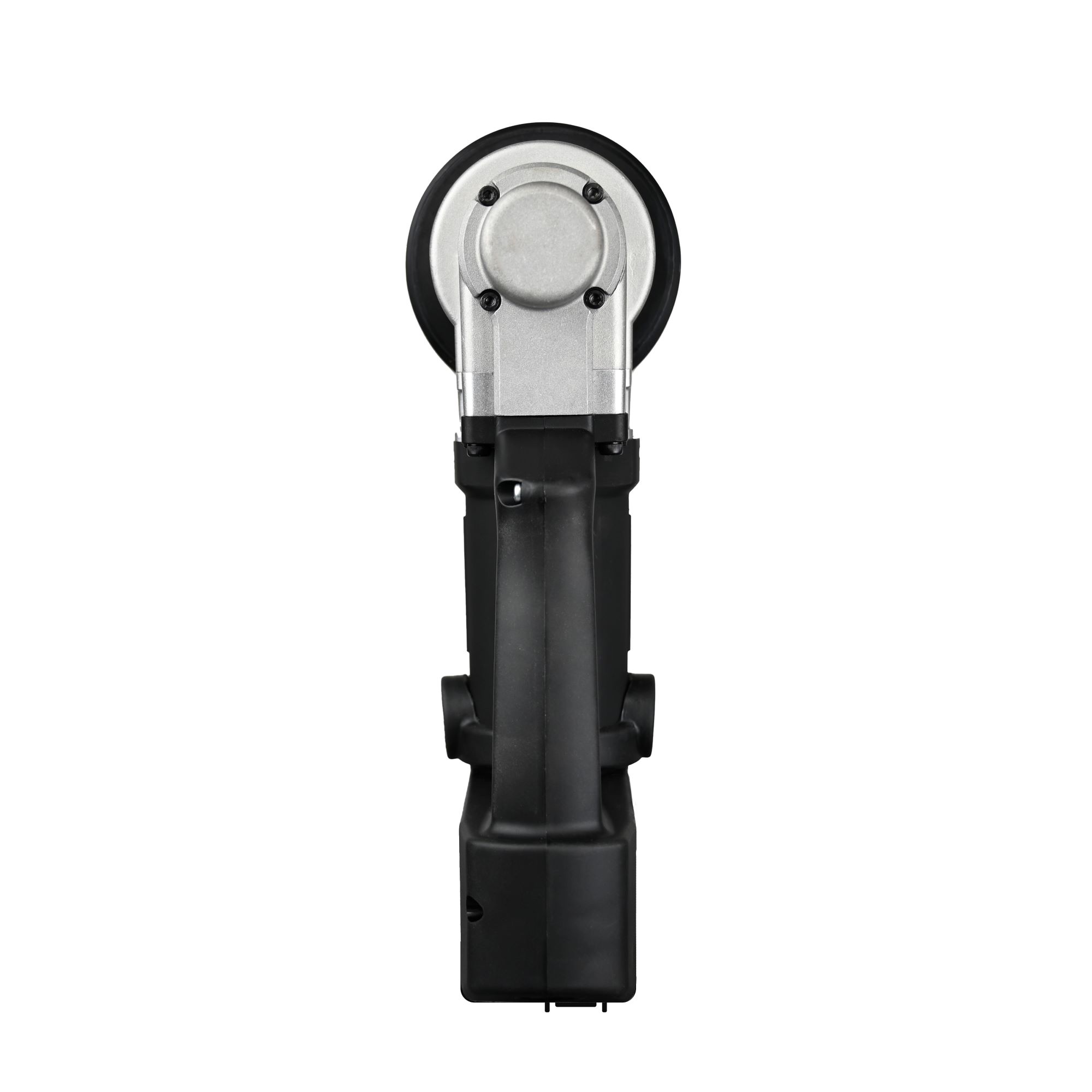

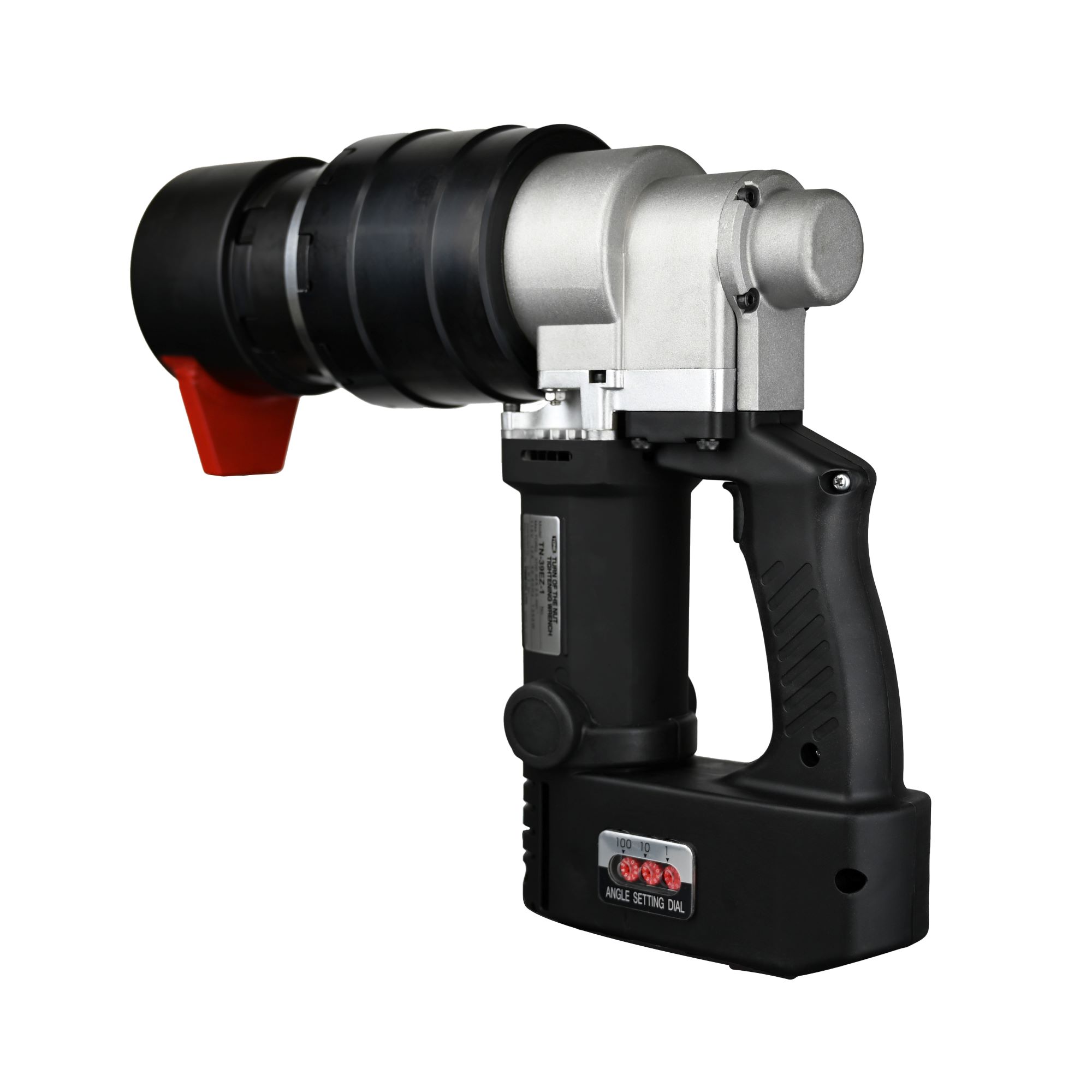

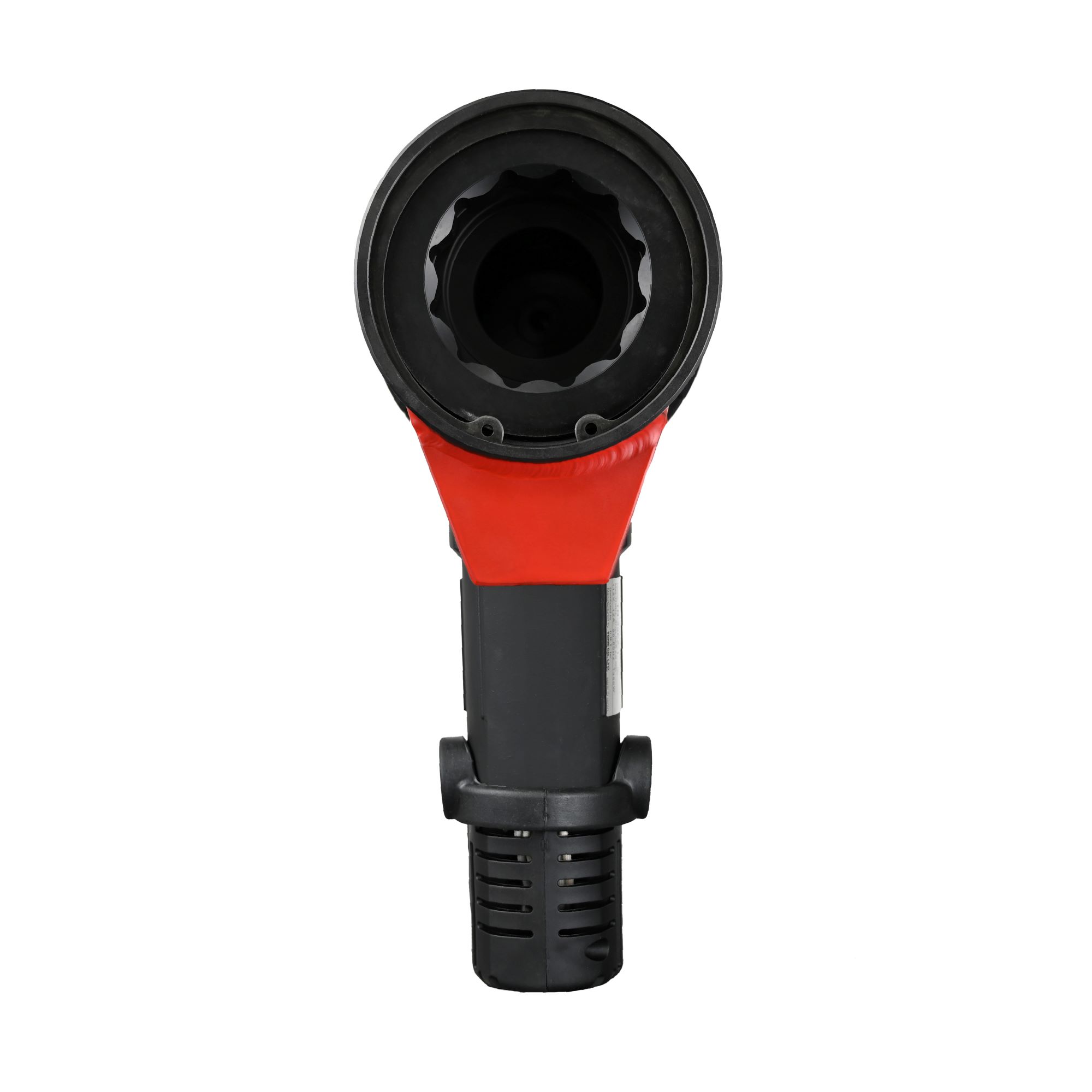

TONE TN-39EZ Turn-of-Nut Wrench

Our exclusive Turn-of-Nut Wrenches are custom designed with timesaving features that minimize error and maximize on the job productivity. Installing hex-head bolts with Turn-of-Nut or DTIs has never been easier.

Fully Tensioned Structural Bolts:

A325 – 1-1/4”, 1-3/8″, 1-1/2″

A325M – M30, M33

A490 – 1-1/4″, 1-3/8″, 1-1/2″*

A490M – M30, M33

 Maximum Torque:

3,700 ft–lb. (5,017 N-m)

*1-1/2” A490 bolts may need to be lubricated to reduce installation torque below the 3700 ft-lb.

Talk to a Specialist
Want to talk to a specialist now?
(888) 838 6500
Business Hours: 8am - 5pm Est

Specifications & Features

Model TONE TN-39EZ
Voltage 115 V
Maximum Current 12.0 A
Maximum Power  1,350 W
Frequency 50-60 Hz
Maximum Torque 3,700 ft-lb. (5017 N-m)
No-load Speed 2.0 rpm
Tool Weight 23.1 lb. (10.5 kg)
    • Angle control in 1° increments
    • Controllable angle range between 90-240°
    • Repeated accuracy ±10°
    • Reaction arm absorbs the torque
    • Reduces the risk of injury from arm fatigue
    • Easily move around the jobsite

Available Accessories

Inch Sockets Metric Sockets
Nut Dimension Across Flats Heavy-Hex Bolt Diameter Nut Dimension Across Flats Heavy-Hex Bolt Diameter Finished Hex Bolt Diameter
2″ 1 – 1/4″ 50 mm M30 M33
2 – 3/16″ 1 – 3/8″ 55 mm M33 M36
2 – 3/8″ 1 – 1/2″ – – –



Turn-of-Nut Wrench Parts- Available for all models with same day shipping. Contact us for more information.

Documents

Helpful resources:

Instructional Manual

Dimensioned Drawings

Turn-of-Nut Catalog

Extension Cord Chart

Safety Precautions

Trusted by:

Testimonials

Kind words from our customers:

  • “GWY’s parts inventory and response is top notch. You can expect prompt, respectful, knowledgeable answers to questions and full cooperation when you need it. Truly a mark of a reputable company with a good team.”

    Ron
    GEM Inc.

  • “It was a great pleasure working with GWY. They go above and beyond to help with what we needed. Don was very quick on getting what we needed out to us to complete the job. Very proud to be a GWY customer.”

    Bobby
    HB Metal Builders

FAQs

Because the TN-tool is rotation based, can it do smaller sizes than what it is recommended for?

No, because for the tool to start counting the degrees of rotation, a certain torque must be met.

Does my TN wrench need to be calibrated?

No, turn of nut (TN) wrenches do not require calibration. TN tools are rotation tools, and they measure rotation mechanically. These tools either work or they do not. You can match mark to show they are functioning properly.

Are the same size sockets interchangeable between different tools?

Typically, the answer is no but there are exceptions.  The only interchangeable sockets for current model shear wrenches are between the GV-301ZA and the GVC-301EZ. The Older models like the S-60EZA share sockets with their newer models like the S-61EZ. The same is true for the S-90EZ and GS-91EZ as well as the S-110EZ and the GS-111EZ. There are a few TN tools that share sockets with each other such as the TN-20EZ and the TN-22EZ as well as the TN-30EZ and the TN-33EZ. The GNR series can share sockets with some of the TN tools. The GNR-31E, 51E, & 81E can use the TN-20EZ/22EZ bar sockets instead of impact sockets. The GNR-121E can use the bar sockets of the TN-24EZA and the GNR-211E can use the bar sockets of the TN-30EZ/33EZ. The GNR’s can also share impact sockets that have their correct drive size.
