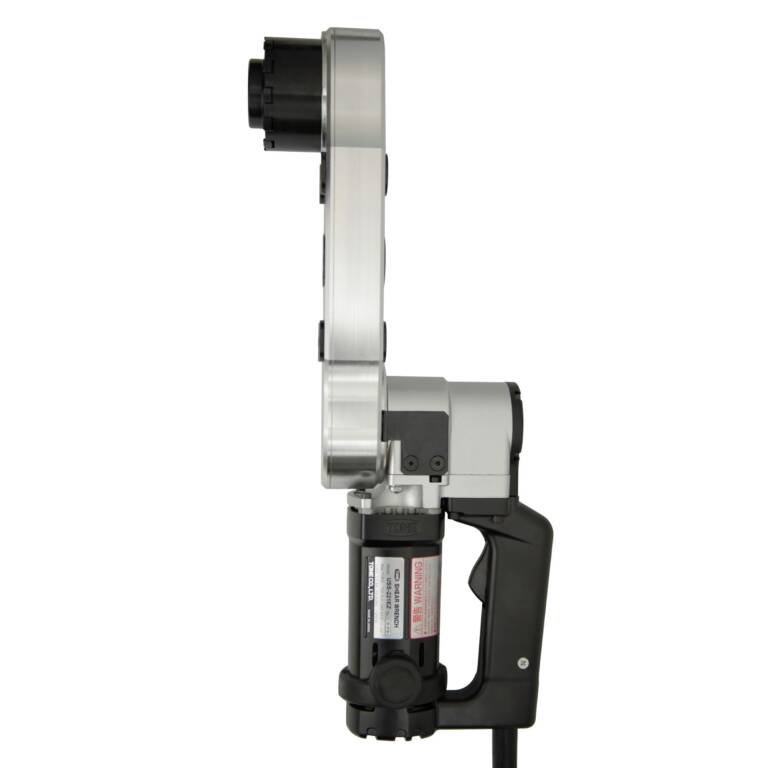

TONE USS-221EZ Minimal Clearance Shear Wrench

Extra low-profile electric shear wrench for minimal clearance applications. Designed to shear off the spline of a TC bolt when it reaches the correct tension. The ejector lever is then pulled to eject the spline for easy removal.

Fully Tensioned Structural Bolts: Maximum Torque:
A325- 5/8″, 3/4″, 7/8″

A325M- M16, M20, M22

A490- 5/8″, 3/4″, 7/8″

A490M- M16, M20, M22

 540 ft-lb. (735 N-m)
Talk to a Specialist
Want to talk to a specialist now?
(888) 838 6500
Business Hours: 8am - 5pm Est

Specifications

Model TONE USS-221EZ TONE USS-222EZ
Voltage 115 V 220 V
Maximum Current 13.5 A 6.5 A
Rated Power 1,350 W 1,350 W
Frequency 50-60 Hz 50-60 Hz
Maximum Torque 540 ft–lb. 735 N-m
No-load Speed 13 rpm 13 rpm
Tool Weight 19.6 lb. 8.9 kg



Available Accessories

Documents

Helpful resources:

Instruction Manual

Dimensioned Drawing

Parts Diagram

Shear Catalog

Extension Cord Chart

Trusted by:

Testimonials

Kind words from our customers:

  • “I have enjoyed working with GWY. Their people know their product well. Their prompt response and delivery of the product is as good as any service Ogeechee Steel has ever had the pleasure of doing business with.”

    David
    Ogeechee Steel

  • “From choosing the right equipment for each job’s unique requirements to problem solving in the field, GWY is always willing to go out of the way to find a solution. Mix that customer service in with their technical expertise and easy-to-use tools, they really help make bolt up easy.”

    Jake
    South Capital Bridgebuilders

FAQs

Does my shear wrench need to be calibrated?

No, shear wrenches do not have any settings for calibration. TC bolts are calibrated and come with mill certificates to prove calibration.

Are my sockets for the S90EZ/GS91EZ interchangeable with the S-110EZ/GS-111EZ tools? Every tool?

The S-60EZA and S-61EZ are interchangeable. The S-90EZ and GS-91EZ are interchangeable and the S110EZ and GS-111EZ are interchangeable. All other sockets for the shear wrenches are specific to the models.

Does the tool come with anything?

All of our tools come with a case.  Our Turn-of-Nut & Shear Wrenches come with the one size socket and a metal case.  The cordless tools come with one or two batteries, a charger, and a case.

Are the same size sockets interchangeable between different tools?

Typically, the answer is no but there are exceptions.  The only interchangeable sockets for current model shear wrenches are between the GV-301ZA and the GVC-301EZ. The Older models like the S-60EZA share sockets with their newer models like the S-61EZ. The same is true for the S-90EZ and GS-91EZ as well as the S-110EZ and the GS-111EZ. There are a few TN tools that share sockets with each other such as the TN-20EZ and the TN-22EZ as well as the TN-30EZ and the TN-33EZ. The GNR series can share sockets with some of the TN tools. The GNR-31E, 51E, & 81E can use the TN-20EZ/22EZ bar sockets instead of impact sockets. The GNR-121E can use the bar sockets of the TN-24EZA and the GNR-211E can use the bar sockets of the TN-30EZ/33EZ. The GNR’s can also share impact sockets that have their correct drive size.
