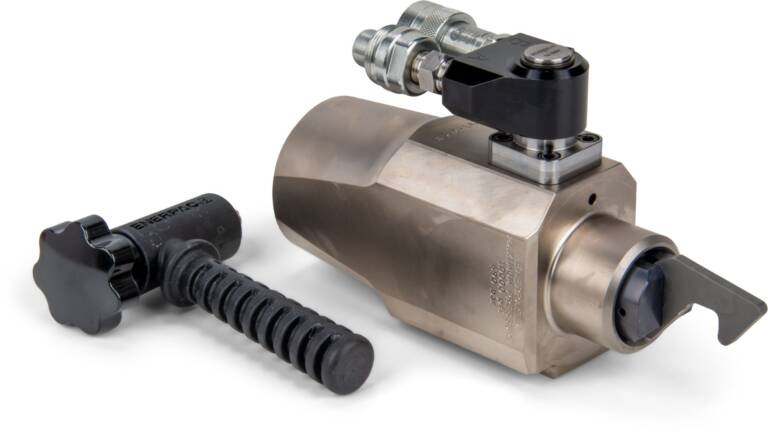

Enerpac W15000X Low Profile Torque Wrench Drive Unit
The W15000X Low-profile hydraulic torque wrench sets a new standard in safety, simplicity and performance with a maximum torque output of 15,330 ft-lb. This hydraulic torque wrench has a superior strength to size ratio and provides easy access to difficult to reach applications without sacrificing endurance.
Hydraulic torque wrench drive units are used in combination with the W-Series Hex Cassettes.
Specifications
| Model | ENERPAC W15000X |
| Nominal Torque Rated At | 10,000 psi (690 bar) |
| Maximum Torque Output | 15,333 ft-lb. (20,785 N-m) |
| Minimum Torque Rated At | 1000 psi (69 bar) |
| Minimum Torque | 1,533 ft-lb. (2,078 N-m) |
| Hexagon Range (in) | 2-7/16″ to 4-5/8″ |
| Hexagon Range (mm) | 65-115 mm |
| Weight | 10.72 lb. |
- Superior strength to size ratio provides easy access to difficult to reach applications without sacrificing endurance
- 30° rotation angle and rapid return stroke provide fast operation
- Tough manifold design with added safety feature for enhanced operator safety
- Fast release drive unit enables rapid exchange of cassettes, no tools required
- Quick and easy disassembly for maintenance without special tools
- Includes robust handles which mount on both sides, and the tops of cassettes to allow for extra maneuverability
- Available with optional enhanced tilt and swivel TSP300 manifold for horizontal and vertical maneuverability, with greater durability
- X-Edition drive units, cassettes and most accessories are compatible with standard edition tools.
- Drive unit compatible with UltraSlim and WCR-Series cassettes
- Constant torque output provides accuracy of ± 3% across full stroke

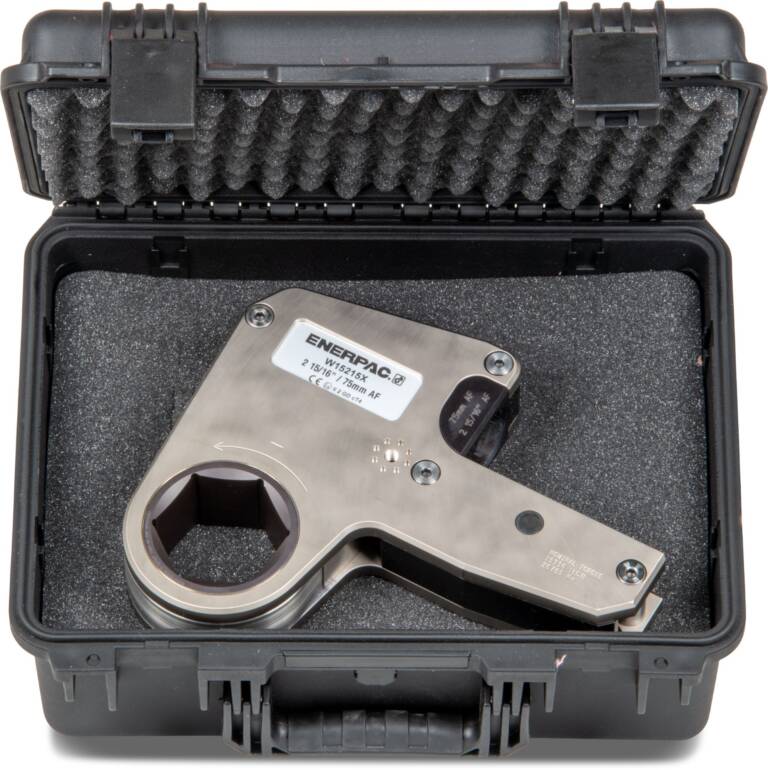

W15000X Drive Unit Cassettes (available to purchase)
| Model Number | Cassette Size* | Heavy-Hex Bolt Diameter |
|---|---|---|
| W15212 | 2-3/4″ | 1-3/4″ |
| W15302 | 3-1/8″ | 2″ |
| W15308 | 3-1/2″ | 2-1/4″ |
| W15313 | 3-7/8″ | 2-1/2″ |
| W15404 | 4-1/4″ | 2-3/4″ |
| W15410 | 4-5/8″ | 3″ |
*Additional cassette sizes are available to purchase
