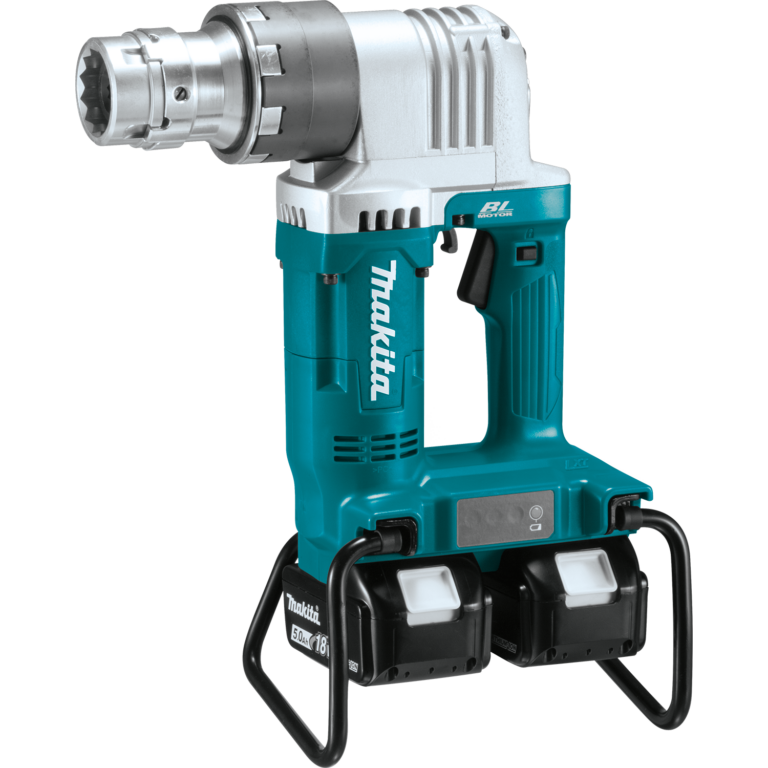

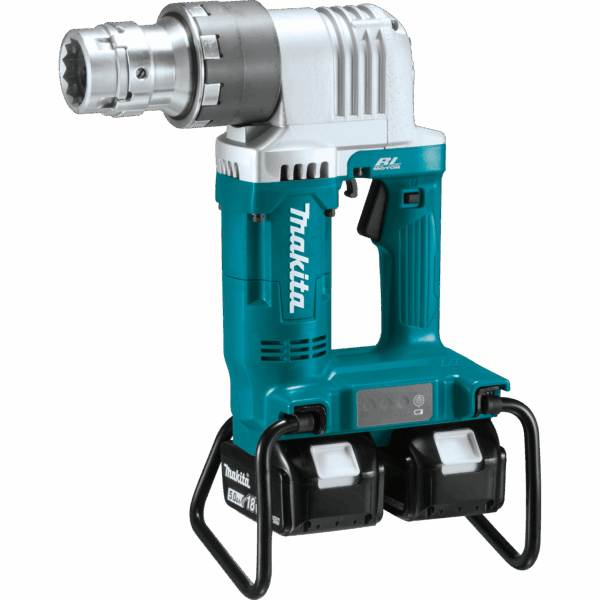

Makita XTW01PT Cordless Shear Wrench Kit

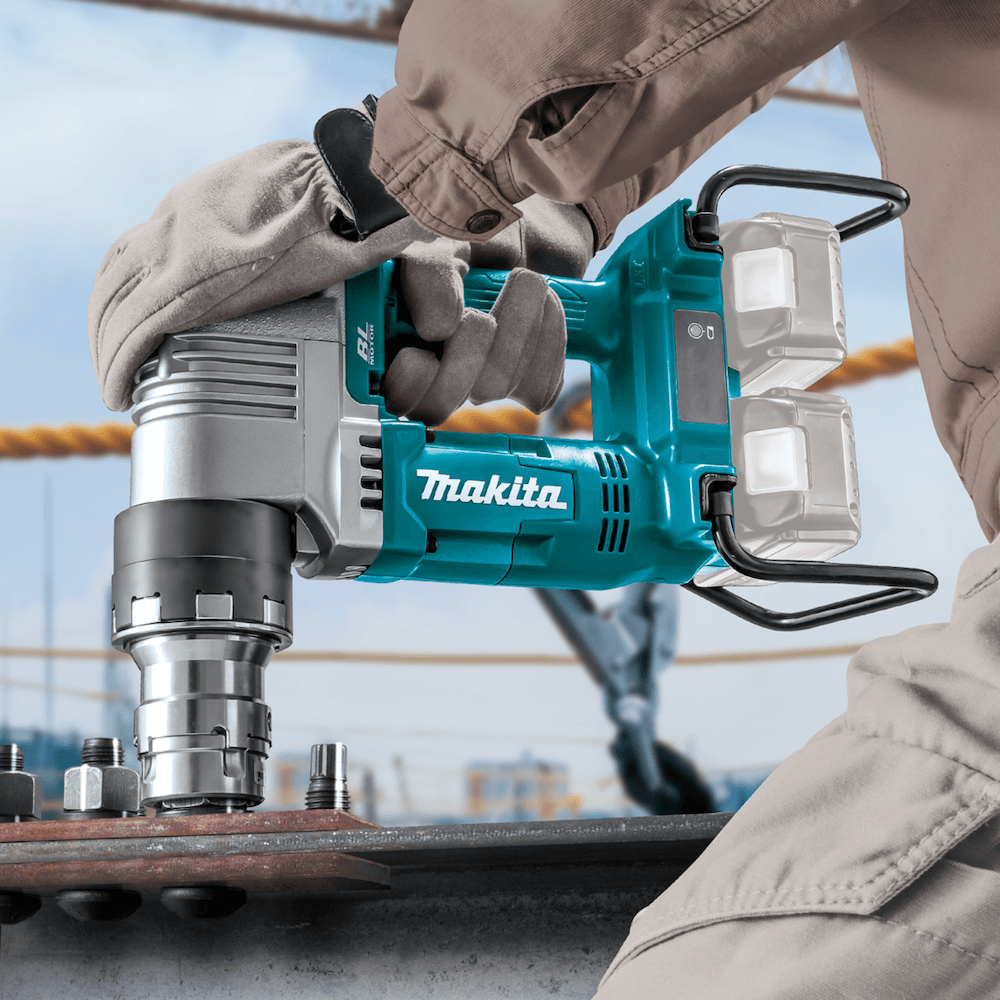

The Makita XTW01PT is powered by an efficient brushless motor for maximum power, speed and run-time without the cord. Designed to shear off the spline of a TC bolt when it reaches the correct tension. The ejector lever is then pulled to eject the spline for easy removal.

Fully Tensioned Structural Bolts: Maximum Torque:
A325 (F1852) TC Bolts – 5/8”, 3/4”, 7/8”

A490 (F2280) TC Bolts – 5/8”, 3/4”

 593 ft-lb. (804 N-m)
Talk to a Specialist
Want to talk to a specialist now?
(888) 838 6500
Business Hours: 8am - 5pm Est

(36V) BRUSHLESS CORDLESS SHEAR WRENCH KIT

  • TECHNOLOGY: Two 18V LXT® Lithium-Ion batteries deliver the power and run time for corded demands
  • POWER: BL™ Brushless motor delivers 593 lb. of torque to handle the most demanding applications
  • PRODUCTIVITY: Electric brake allows the tool to be repositioned faster for maximum productivity
  • DURABILITY: Extreme Protection Technology (XPT™) is engineered for improved dust and water resistance

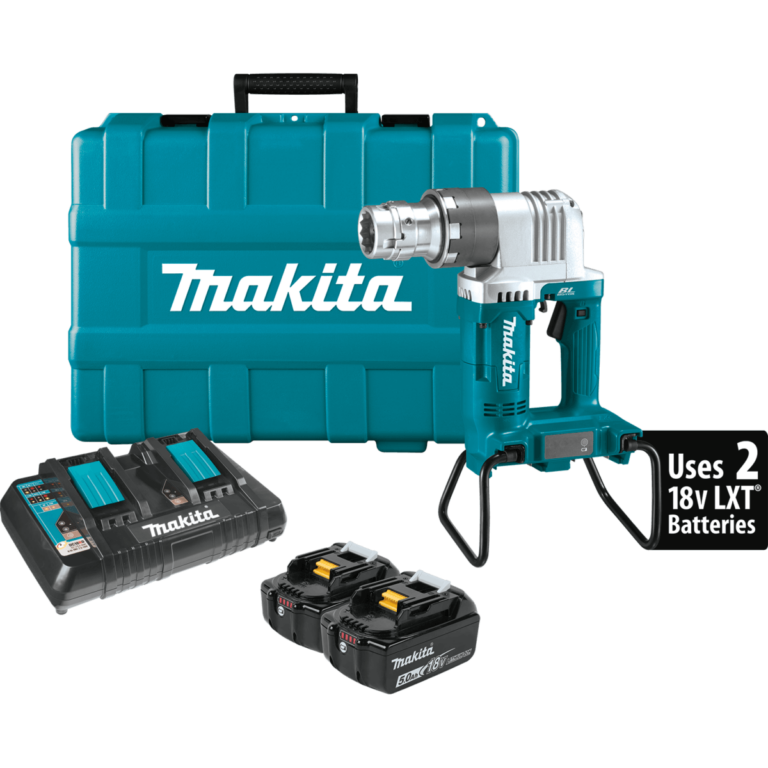

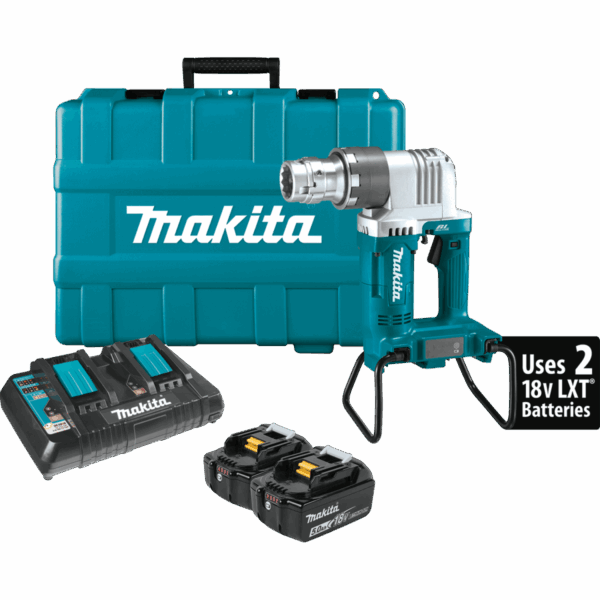

  • KIT INCLUDES: (2) 18V LXT® Lithium-Ion 5.0Ah batteries, dual port rapid charger, 3/4″ Inner & Outer Socket, 7/8″ Inner & Outer Socket, Shoulder Strap, Screwdriver, and Tool Case

Specifications

Model MAKITA XTW01
Voltage DC 36 V
Maximum Torque 593 ft-lb (804 N-m)
No-load Speed 14 rpm
Weight 15.7 lb. (7.1 kg)

Available Accessories

  • Inner & outer sockets
  • 84mm (3-5/16”) extension socket set for 3/4” & 7/8″ TC bolts

Documents

Helpful resources:

Dimensioned Drawing

Instructional Manual

Parts Diagram

Shear Catalog

Trusted by:

Testimonials

Kind words from our customers:

  • “GWY has been a great company to work with. My company requires receipts for all credit card purchases and GWY has made this very easy. With rental equipment this usually isn't the easiest to deal with but they have made this process very smooth. I get a weekly receipt emailed to me without having to ask for it. They also have great customer service and are very helpful and friendly. Would definitely recommend.”

    Jeremy
    Faith Technologies, Inc.

  • “GWY’s parts inventory and response is top notch. You can expect prompt, respectful, knowledgeable answers to questions and full cooperation when you need it. Truly a mark of a reputable company with a good team.”

    Ron
    GEM Inc.

FAQs

Does my shear wrench need to be calibrated?

No, shear wrenches do not have any settings for calibration. TC bolts are calibrated and come with mill certificates to prove calibration.

Are the same size sockets interchangeable between different tools?

Typically, the answer is no but there are exceptions.  The only interchangeable sockets for current model shear wrenches are between the GV-301ZA and the GVC-301EZ. The Older models like the S-60EZA share sockets with their newer models like the S-61EZ. The same is true for the S-90EZ and GS-91EZ as well as the S-110EZ and the GS-111EZ. There are a few TN tools that share sockets with each other such as the TN-20EZ and the TN-22EZ as well as the TN-30EZ and the TN-33EZ. The GNR series can share sockets with some of the TN tools. The GNR-31E, 51E, & 81E can use the TN-20EZ/22EZ bar sockets instead of impact sockets. The GNR-121E can use the bar sockets of the TN-24EZA and the GNR-211E can use the bar sockets of the TN-30EZ/33EZ. The GNR’s can also share impact sockets that have their correct drive size.

Does the tool come with anything?

All of our tools come with a case.  Our Turn-of-Nut & Shear Wrenches come with the one size socket and a metal case.  The cordless tools come with one or two batteries, a charger, and a case.

Will this tool fit where I need it to?

We can email a dimensioned drawing, or one is available on our website for reference.
